YAMAHA
2004 - 2006 WR 450F,
2003 - 2005 YZ 450F,

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09086

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

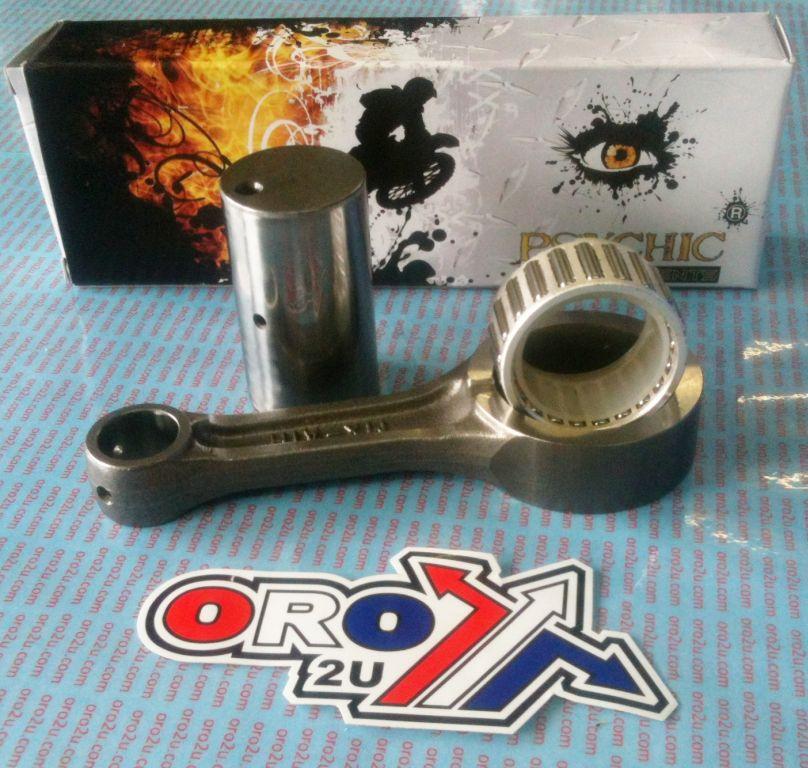

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE	MM
Centre 2 Centre	103.50
Small End Bearing	None
Small End Bore Ø	16
Small End Width	15
Big End Bearing	34x42x20
Big End Bore Ø	42
Big End Width	20
Big End Pin Ø	34
Big End Pin Length	60.90
Washer Thickness	None

Part No. 56-911.DR (oro2u.com)

Cross reference numbers.
ATHENA P40321022, 5XD-11651-00-00, PSYCHIC MX-09086, HOTRODS 8621, PROX 03.2423, WISECO WPR197, WOSSNER P4007, PROX 03-2423, YAMAHA: 5TA-11651-00-00 YAMAHA: 5XD-11651-00-00,
