HONDA
2004-2005 TRX 450ER,
2004-2005 TRX 450R,

CONROD Connecting rod Rebuild kit Bronco AT-09194

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

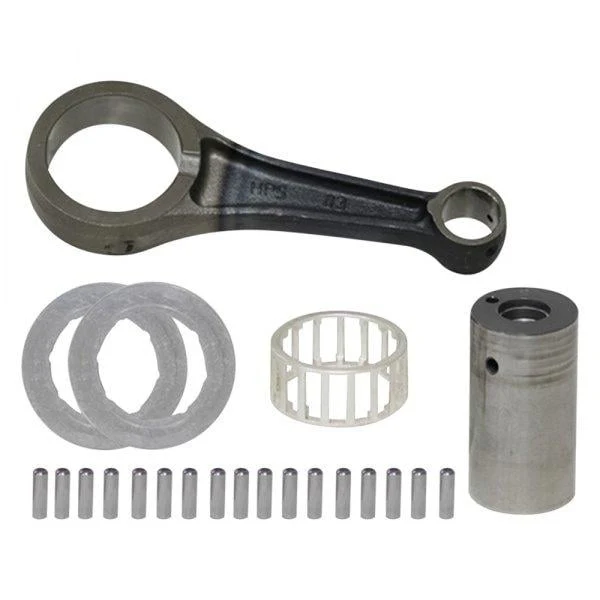

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE	MM
Centre 2 Centre	111.50
Small End Bearing	None
Small End Bore Ø	21
Small End Width	19
Big End Bearing	35x46x23.2
Big End Bore Ø	46
Big End Width	23.50
Big End Pin Ø	35
Big End Pin Length	62.70
Washer Thickness	35x54x1.0

Part No. 56-231.BR (oro2u.com)

Cross Reference Numbers Only:
13000-HP1-670,
