The Hot Rods Connecting Rod Kit (8648) is a premium-quality replacement designed specifically for Suzuki LT-R 450 models. Engineered for durability and high performance, it features advanced manufacturing techniques to ensure reliability under extreme conditions. The kit includes all necessary components for installation, making it ideal for comprehensive repairs or rebuilds.

Features:

• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength and longevity.


• Side scalloping and vent slots minimize high-rpm bearing race distortion.


• Double-forged rods improve grain flow and maintain dimensional consistency.


• Shot-peened and double-honed for enhanced durability under heavy loads.


• Double-drilled small ends ensure superior lubrication and cooling for the wrist pin bearing.


• Thrust washers and crank pin bearings are silver-coated for increased lubricity.

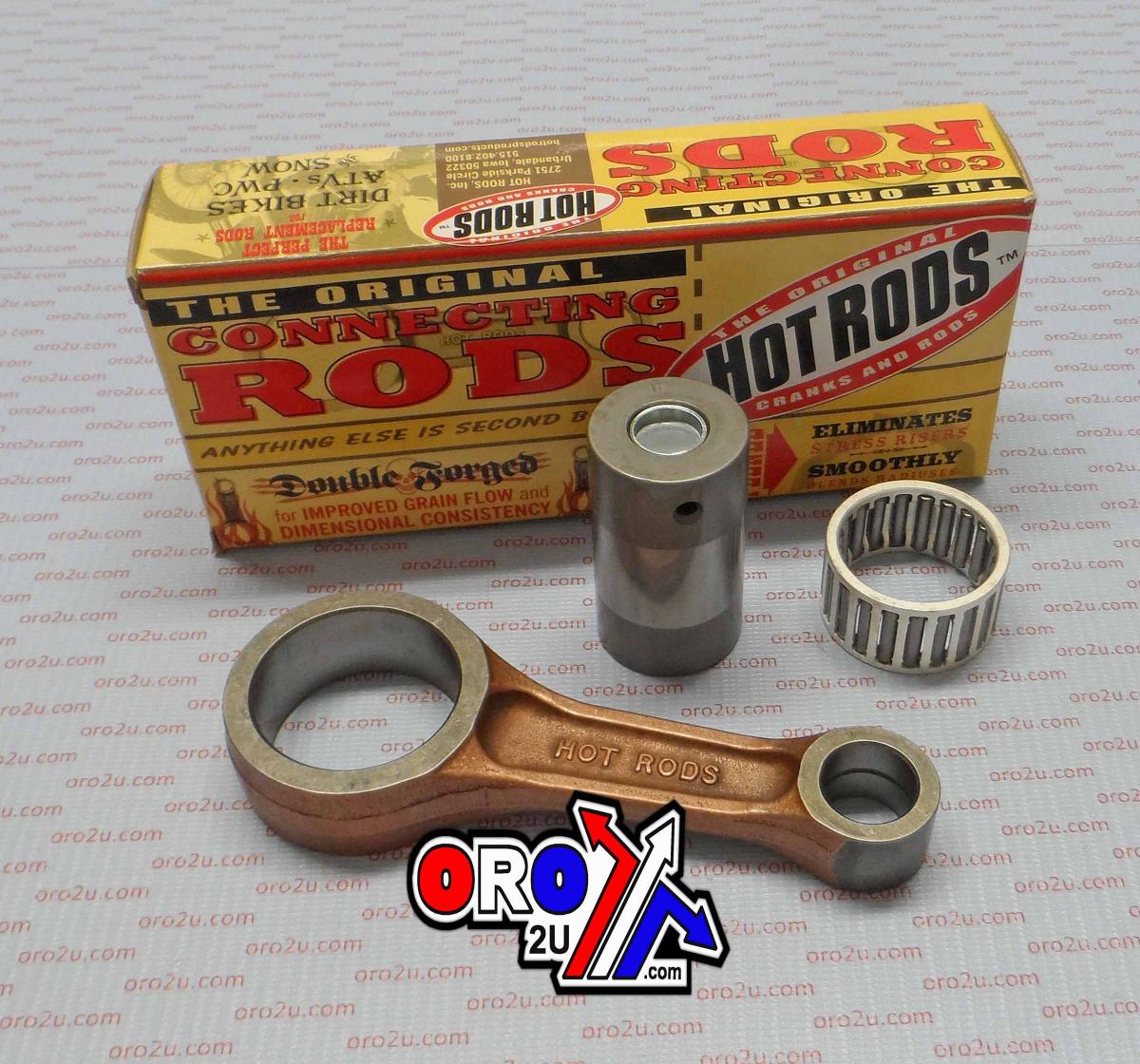

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing (mm): 34x42x21.6


• Big End Bore (mm): 42.00


• Big End Width (mm): 21.75


• Center to Center (mm): 107.00


• Pin Diameter (mm): 34.00


• Pin Length (mm): 60.80


• Small End Bearing (mm): Bushing


• Small End Bore (mm): 19.00

Cross-Reference OEM Part Numbers:

• 12160-45G10


• 12161-45G00

Vehicle Fitments:

• 2009 Suzuki LT-R 450


• 2008 Suzuki LT-R 450


• 2007 Suzuki LT-R 450


• 2006 Suzuki LT-R 450

Part Number: 8648
