High-quality Hot Rods Connecting Rod Kit designed for Honda TRX700XX models (2008–2009). This complete kit provides reliable performance and durability for demanding applications.

Features:

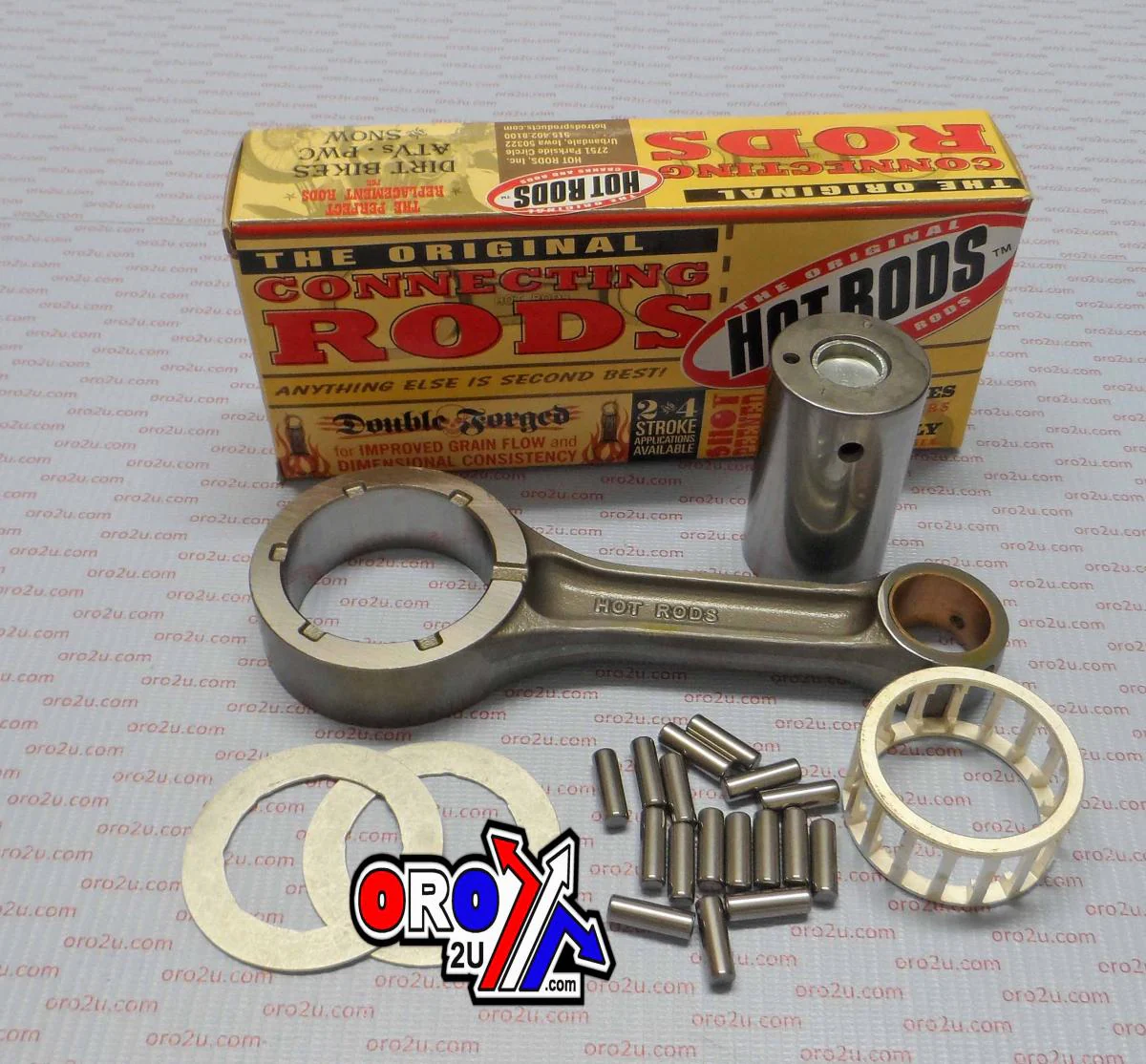

• Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.


• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength.


• Advanced design minimizes high RPM bearing race distortion with strategically located side scalloping and vent slots.


• Double-forged rods improve grain flow and dimensional consistency.


• Shot-peened and double-honed rods for superior strength under heavy loads.


• Small ends are double-drilled for improved lubrication and cooling to the wrist pin bearing.


• Thrust washers and crank pin bearings are silver-coated for added lubricity and durability.

Technical Specifications:

• Big End Bore (mm): 50.00


• Big End Width (mm): N/A


• Center to Center (mm): 133.00


• Pin Diameter (mm): 38.00


• Pin Length (mm): 65.10


• Small End Bore (mm): 24.00


• Small End Width (mm): N/A


• Washer Thickness (mm): 1.00

Cross-Reference OEM Part Numbers:

• Hot Rods HR008679


• Honda 13000-HP6-A00

Part Number: 56-856.HR
