Heavy-duty connecting rod kit designed for Kawasaki KX250F (2010-2016) models. This premium replacement kit ensures exceptional durability, strength, and performance, including all necessary components for a complete rebuild.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior durability.


• Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion.


• Double-forged rods improve grain flow and maintain dimensional consistency.


• Shot-peened and double-honed for superior strength under heavy loads.


• Small ends are double drilled for enhanced lubrication and cooling of the wrist pin bearing.


• Thrust washers and crankpin bearings feature a silver coating for added lubricity.

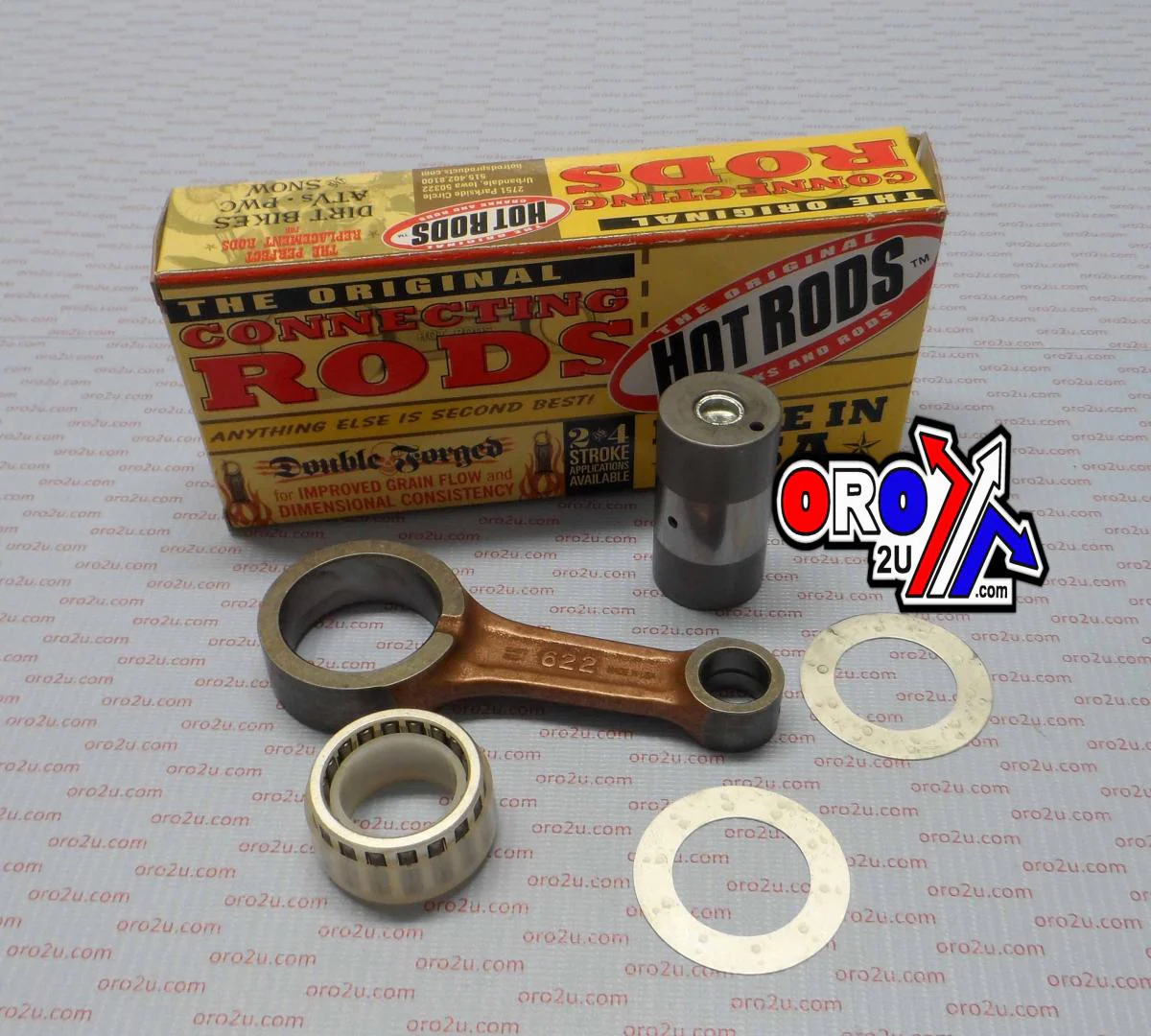

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Centre to Centre: 92.50 mm


• Big End Bearing: KU 30x38x17.8 mm


• Big End Bore: 38.00 mm


• Big End Width: 17.98 mm


• Pin Diameter: 30.00 mm

Cross-Reference OEM Part Numbers:

KAWASAKI: 13032-0076

Vehicle Fitment:

• Kawasaki KX250F: 2010, 2011, 2012, 2013, 2014, 2015, 2016.

Part Number: 56-942.HR
