This connecting rod rebuild kit is designed as a +5mm heavy-duty OE replacement for the Yamaha YFZ350 Banshee (Long Rod) models from 1987 to 2006. Manufactured from certified chrome alloy steel (SNCM220), it includes all necessary components for a complete rod assembly and is fully compatible with both aftermarket and OE crankshafts.

Features

•


  Heavy-duty OE replacement connecting rod





•


  Certified chrome alloy steel (SNCM220) provides superior strength





•


  Crankpins manufactured from hot-rolled ASTM steel and case hardened





•


  Thrust washers made from bronze phosphor and silver coated





•

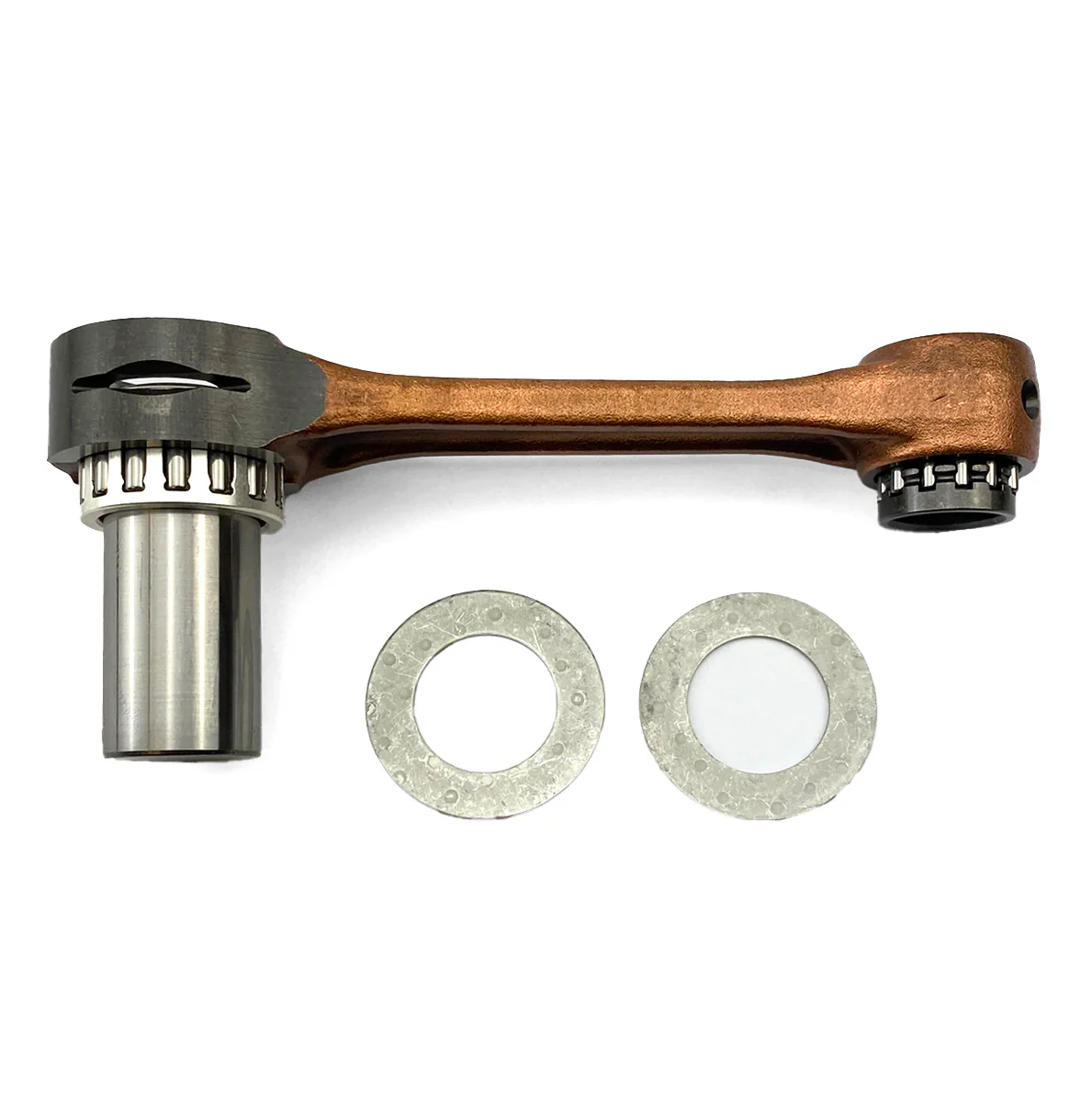

  Complete rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if needed)





•


  Fully compatible with aftermarket and OE crankshafts




Specifications

•


  Centre to Centre: 115 mm





•


  Small End Bearing: 16x21x22.3 mm





•


  Small End Bore Diameter: 21 mm





•


  Small End Width: 17.90 mm





•


  Big End Bearing: 22x29x17 mm





•


  Big End Bore Diameter: 22 mm





•


  Big End Width: 17 mm





•


  Big End Pin Diameter: 29 mm





•


  Big End Pin Length: 52.70 mm





•


  Washer Thickness: 22.20x36.90x1.00 mm




Cross-Reference OEM Part Numbers

•


  Yamaha: 29L-11651-00-00





•


  Hot Rods: 8158




Vehicle Fitments

•


  Yamaha YFZ350 Banshee (Long Rod) 1987–2006
