CONNECTING ROD 90-98 YZ250, PSYCHIC MX-09080 WR250
YAMAHA
YZ250 1990-1997,

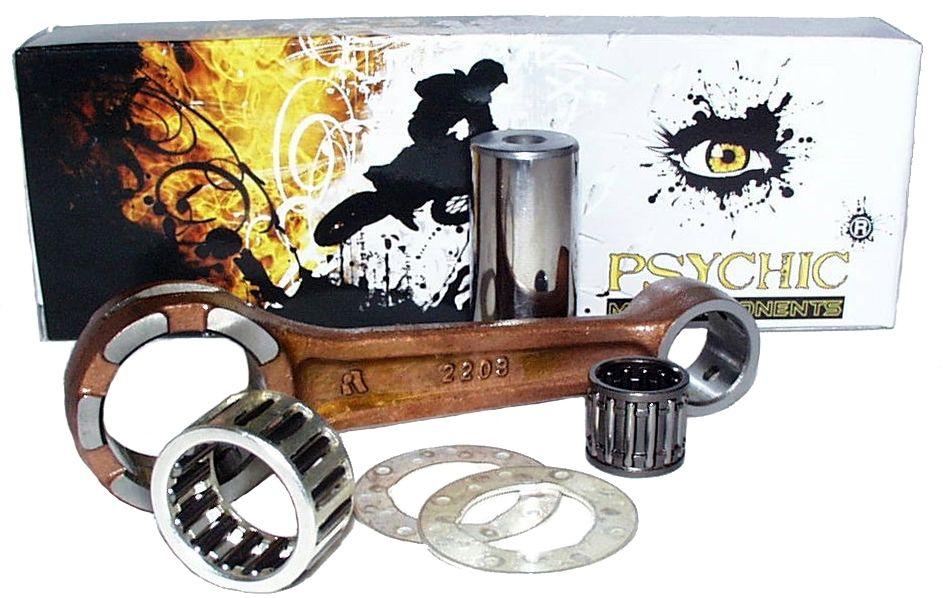

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09080
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre |
125 |
| Small End Bearing | 18x23x22 |
| Small End Bore Ø | 23 |
| Small End Width | 20 |
| Big End Bearing | 25x32x19.8 |
| Big End Bore Ø | 32 |
| Big End Width |
20 |
| Big End Pin Ø | 25 |
| Big End Pin Length | 60 |
| Washer Thickness | 1.00 |
Part No. 56-979.DR (oro2u.com)
Cross Reference Numbers Only:
YAMAHA: 5X5-11651-01-00, YAMAHA: 5X5-11651-02-00, YAMAHA: 5X5-11651-03-00, HOTRODS 8107, PROX 03-2306, WOSSNER P2029,
