CONNECTING ROD 92-93 KX125, NAMURA RX-20004, MX-09029 86-88 KDX200
KAWASAKI
KX125 1979-1987, 1992-1993,
KDX200 1986-1988,

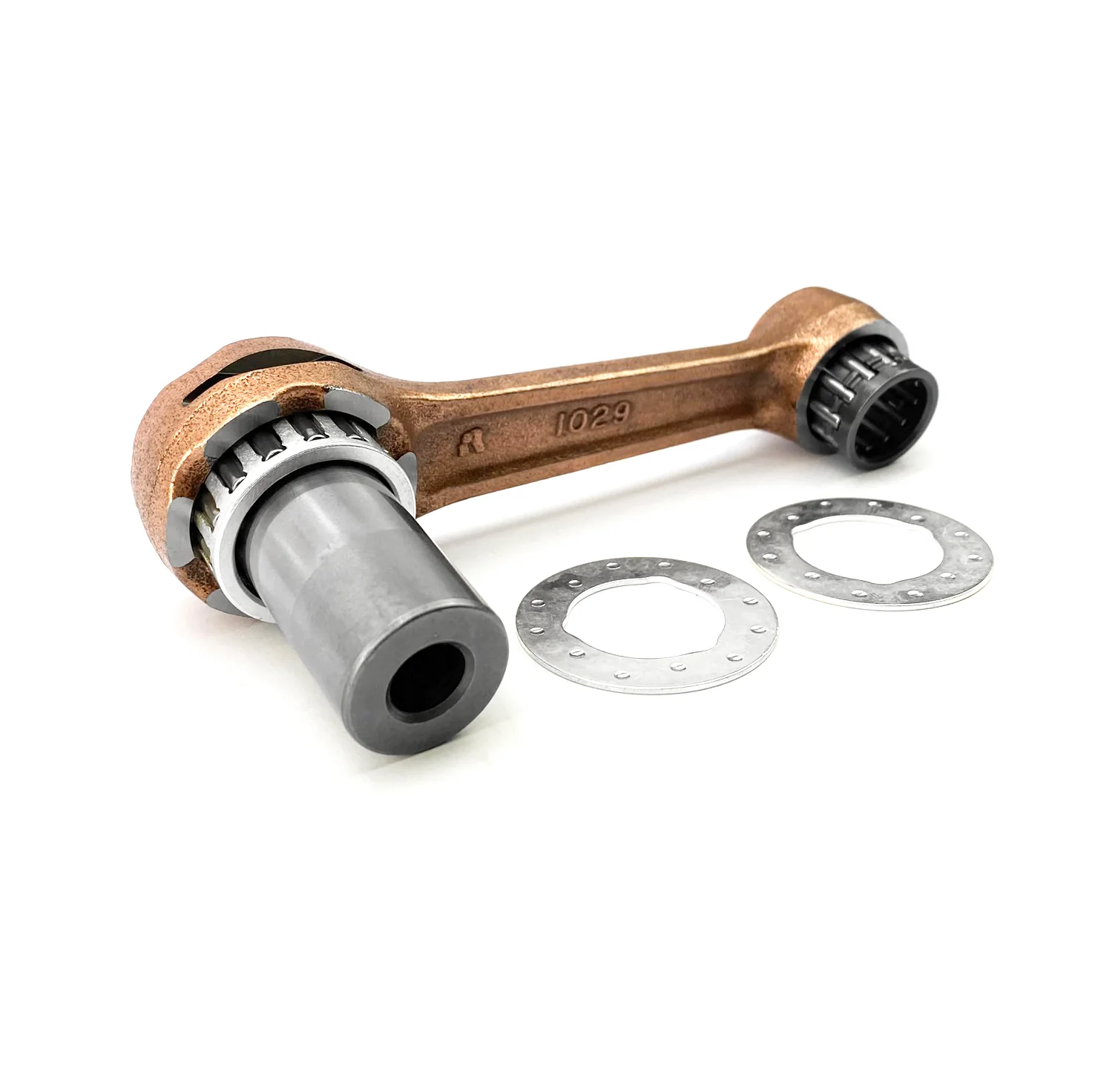

CONNECTING ROD CONROD REBUILD KIT
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
106 |
|
Small End Bearing |
16x21x19.80 |
|
Small End Bore Ø |
21 |
|
Small End Width |
17.00 |
|
Big End Bearing |
22x29x16.8 |
|
Big End Bore Ø |
29 |
|
Big End Width |
17.20 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
51.00 |
|
Washer Thickness |
1.00 |
Cross reference numbers.
KAWASAKI: 13032-1179,KAWASAKI: 13032-1200, KAWASAKI: 13044-5008, KAWASAKI: 13044-5009, KAWASAKI: 13044-5017, KAWASAKI: 13044-5018, KAWASAKI: 13044-5030, KAWASAKI: 13044-5035, KAWASAKI: 13044-5047, KAWASAKI: 13044-5065, PROX 03.4210, WISECO WPR130, HOTRODS 8102,
Kawasaki
- 1988 Kawasaki KDX200
- 1987 Kawasaki KDX200
- 1986 Kawasaki KDX200
- 1993 Kawasaki KX125
- 1992 Kawasaki KX125
- 1987 Kawasaki KX125
- 1986 Kawasaki KX125
- 1985 Kawasaki KX125
- 1984 Kawasaki KX125
- 1983 Kawasaki KX125
- 1982 Kawasaki KX125
- 1981 Kawasaki KX125
- 1979 Kawasaki KX125
