High-performance Hot Rods connecting rod kit designed as a reliable replacement for Kawasaki KX125 models. Engineered for durability and precision, the kit is crafted from premium materials to ensure long-lasting performance under demanding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.


• Strategically designed side scalloping and vent slots reduce high RPM bearing race distortion.


• Double-forged rods improve grain flow and dimensional consistency.


• Shot-peened and double-honed for superior durability under heavy loads.


• Small ends feature double drilling to enhance lubrication and cooling of the wrist pin bearing.


• Thrust washers and crank pin bearings are silver-coated for increased lubricity.

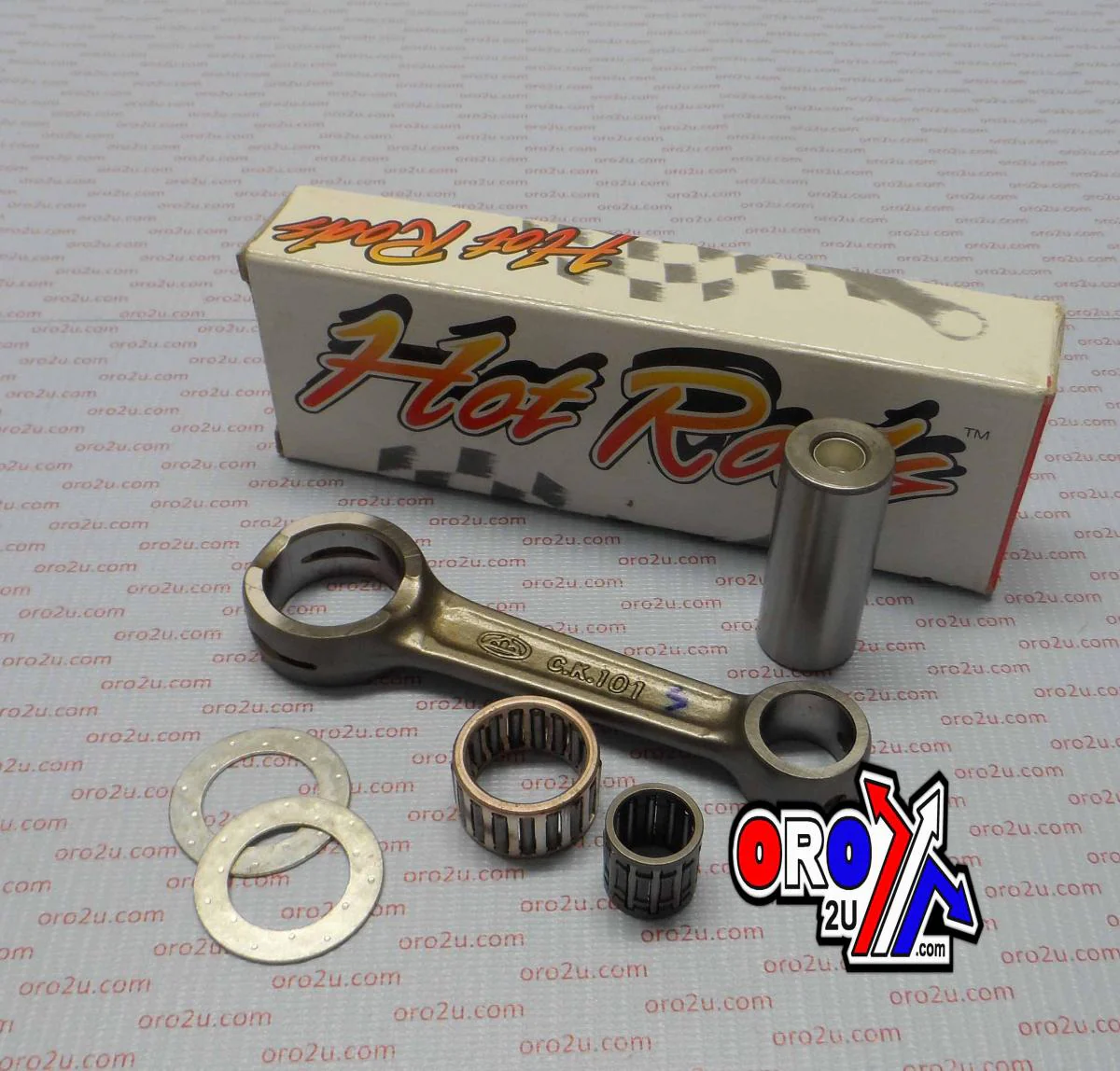

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bore: 29.00 mm


• Big End Width: Not specified


• Center to Center: 106.00 mm


• Pin Diameter: 22.00 mm


• Pin Length: 50.90 mm


• Small End Bore: 19.00 mm


• Small End Width: Not specified


• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

13032-1196, 13032-1219, 56-886.WI, MX-09030, WISECO WPR132, HOT RODS 8163

Compatibility:

• 1997 Kawasaki KX125


• 1996 Kawasaki KX125


• 1995 Kawasaki KX125


• 1994 Kawasaki KX125

Part Number:

8163
