High-quality connecting rod kit designed for durability and high-performance applications. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, the rods feature advanced scalloping and vent slots in the big end to minimize bearing race distortion at high RPMs. Double-forged rods improve grain flow and dimensional consistency, while shot-peening and double-honing enhance strength for heavy-load applications.

The small ends are double-drilled for optimal lubrication and cooling, critical for wrist pin bearings in high-stress conditions. Silver-coated thrust washers and crank pin bearings add lubricity and reliability. The kit is sold complete with all necessary components for installation.

Features:

• Made from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.


• Scalloped vent slots in the big end reduce high RPM bearing race distortion.


• Double-forged rods improve grain flow and dimensional stability.


• Shot-peened and double-honed for superior strength under heavy loads.


• Double-drilled small ends provide additional lubrication and cooling for wrist pin bearings.


• Silver-coated thrust washers and crank pin bearings for enhanced lubricity.

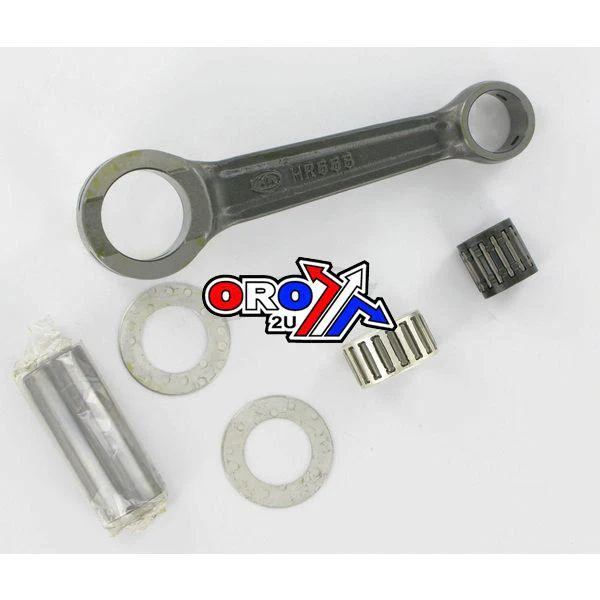

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bearing: 22x28x15.8 mm


• Big End Bore: 28.00 mm


• Big End Width: 15.90 mm


• Center to Center: 118.00 mm


• Pin Diameter: 22.00 mm


• Pin Length: 54.90 mm


• Small End Bore: 20.00 mm


• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

• KTM: 52330015100


• Hot Rods: 8668

Vehicle Fitments:

• KTM 200 EXC: 1998–2005


• KTM 200 MXC: 1998–2003


• KTM 200 SX: 2003–2004


• KTM 200 XC: 2006–2009


• KTM 200 XC-W: 2006–2016

Part Number: 56-865.HR
