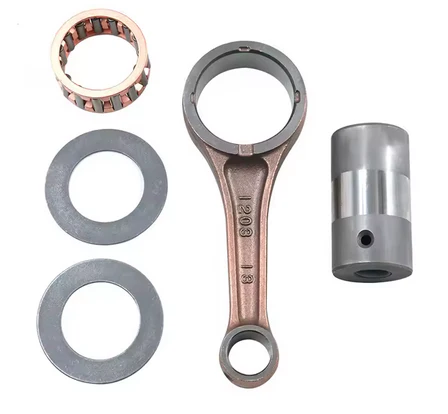

This connecting rod (crank rod) kit is manufactured to tight tolerances to support accurate fit and long-term reliability. Built to OEM specification, it is a direct replacement and supplied with dimensions detailed below for correct assembly.

Features

• Meets or exceeds OEM quality


• Direct OEM replacement


• Manufactured to the tightest tolerances for an accurate fit


• Cost-effective option


• Please check the image before ordering to avoid mistakes


• Easy to install; professional assistance recommended if unsure

Specifications

• Centre to centre: 107 mm


• Small end bore Ø: 17 mm


• Small end width: 18.00 mm


• Big end bearing: 32 × 41 × 17.75 mm


• Big end bore Ø: 41 mm


• Big end width: 18.00 mm


• Big end pin Ø: 32 mm


• Big end pin length: 58.60 mm


• Washer thickness: 32 × 52 × 1.20 mm


• Overall length of rod: 145 mm

Cross-Reference OEM Part Numbers

•


  13031-1427




Vehicle Fitments

• Kawasaki KLX250 (1992–2017)


• Kawasaki KLX300 (1996–2007)
