CONNECTING ROD DT250/360, MAZZUCCHELLI BCO0532A, 311-11651-01

Product image 1
Product image 2
Product image 3

CONNECTING ROD DT250/360, MAZZUCCHELLI BCO0532A, 311-11651-01

CONNECTING ROD DT250/360, MAZZUCCHELLI BCO0532A, 311-11651-01

YAMAHA DT2, RT2 DT250A 1974 / DT360 ,



CONNECTING ROD KIT NOVA MAZZUCCHELLI BCO0532A

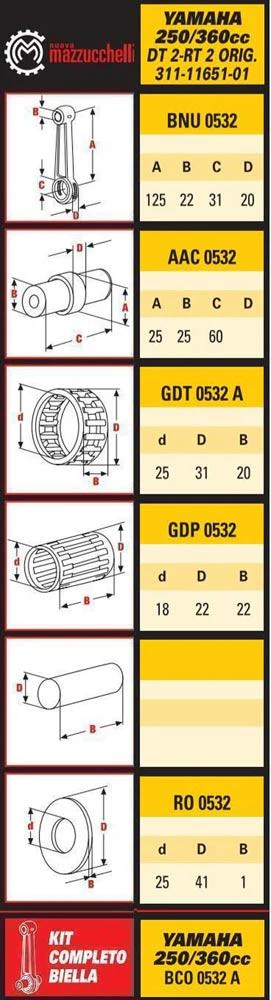

SEE IMAGE FOR KEY. SIZE. A 125mm, B 18mm, C 25mm, D 20mm, E 20mm, F 60mm



















































SIZE

MM

Centre 2 Centre

125

Small End Bearing

18x22x22

Small End Bore Ø

22

Small End Width

20

Big End Bearing

25x31x20



Big End Bore Ø

31

Big End Width

20

Big End Pin Ø

25

Big End Pin Length

60

Washer Thickness

25x41x1


Cross reference numbers ONLY.

311-11651-01



DT250A 1974 250 DT250 Dual Purpose

DT2MX 1972 250 DT2MX Dual Purpose

RT2MX 1972 360 RT2MX Off-Road

TY250A 1974 250 TY250 Trials



Cross reference numbers ONLY.

YAMAHA YZ250 1978-1982 [must also buy 25x63 crank pin] Big End Bearing 25x31x20





S/SEED FROM 56-931 TO 56-154.MA

$89.62

Original: $256.06

-65%
CONNECTING ROD DT250/360, MAZZUCCHELLI BCO0532A, 311-11651-01—

$256.06

$89.62

Product Information

Shipping & Returns

Description

YAMAHA DT2, RT2 DT250A 1974 / DT360 ,



CONNECTING ROD KIT NOVA MAZZUCCHELLI BCO0532A



SEE IMAGE FOR KEY. SIZE. A 125mm, B 18mm, C 25mm, D 20mm, E 20mm, F 60mm



















































SIZE

MM

Centre 2 Centre

125

Small End Bearing

18x22x22

Small End Bore Ø

22

Small End Width

20

Big End Bearing

25x31x20



Big End Bore Ø

31

Big End Width

20

Big End Pin Ø

25

Big End Pin Length

60

Washer Thickness

25x41x1


Cross reference numbers ONLY.

311-11651-01



DT250A 1974 250 DT250 Dual Purpose

DT2MX 1972 250 DT2MX Dual Purpose

RT2MX 1972 360 RT2MX Off-Road

TY250A 1974 250 TY250 Trials



Cross reference numbers ONLY.

YAMAHA YZ250 1978-1982 [must also buy 25x63 crank pin] Big End Bearing 25x31x20





S/SEED FROM 56-931 TO 56-154.MA
