A premium Hot Rods connecting rod kit designed for Kawasaki KDX200, KDX220R, and KX125 models. Engineered for high-performance and durability, this kit is perfect for heavy-duty riding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum strength and durability.


• Advanced design includes side scalloping and vent slots to reduce high-RPM bearing race distortion.


• Double-forged rods improve grain flow and maintain dimensional consistency.


• Shot-peened and double-honed for superior resilience under heavy loads.


• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.


• Silver-coated thrust washers and crank pin bearings provide enhanced lubricity.

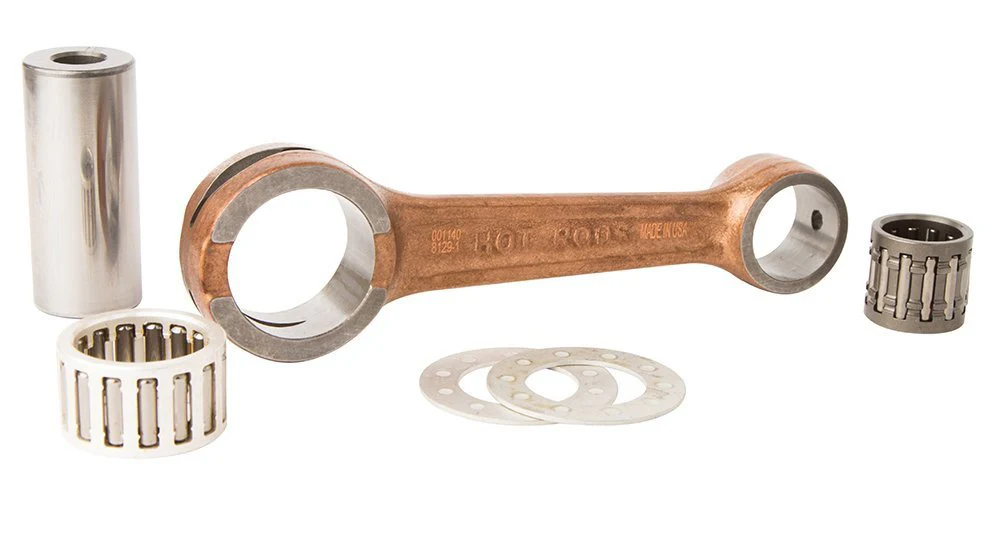

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing Dimensions: 22 x 29 x 16.7 mm


• Big End Bore: 29.00 mm


• Big End Width: 16.90 mm


• Center to Center Length: 109.00 mm


• Pin Diameter: 22.00 mm

Cross-Reference OEM Part Numbers:

• Hot Rods: 8129


• Wossner: P2033


• Wiseco: WPR131


• Psychic: MX-09031


• Kawasaki: 13032-1146, 13032-1210, 13044-5071

Compatibility:

Fits the following models:

Kawasaki:

• KDX200 (1989-2006)


• KDX220R (1997-2005)


• KX125 (1988-1991)

Part Number: 56-116.HR
