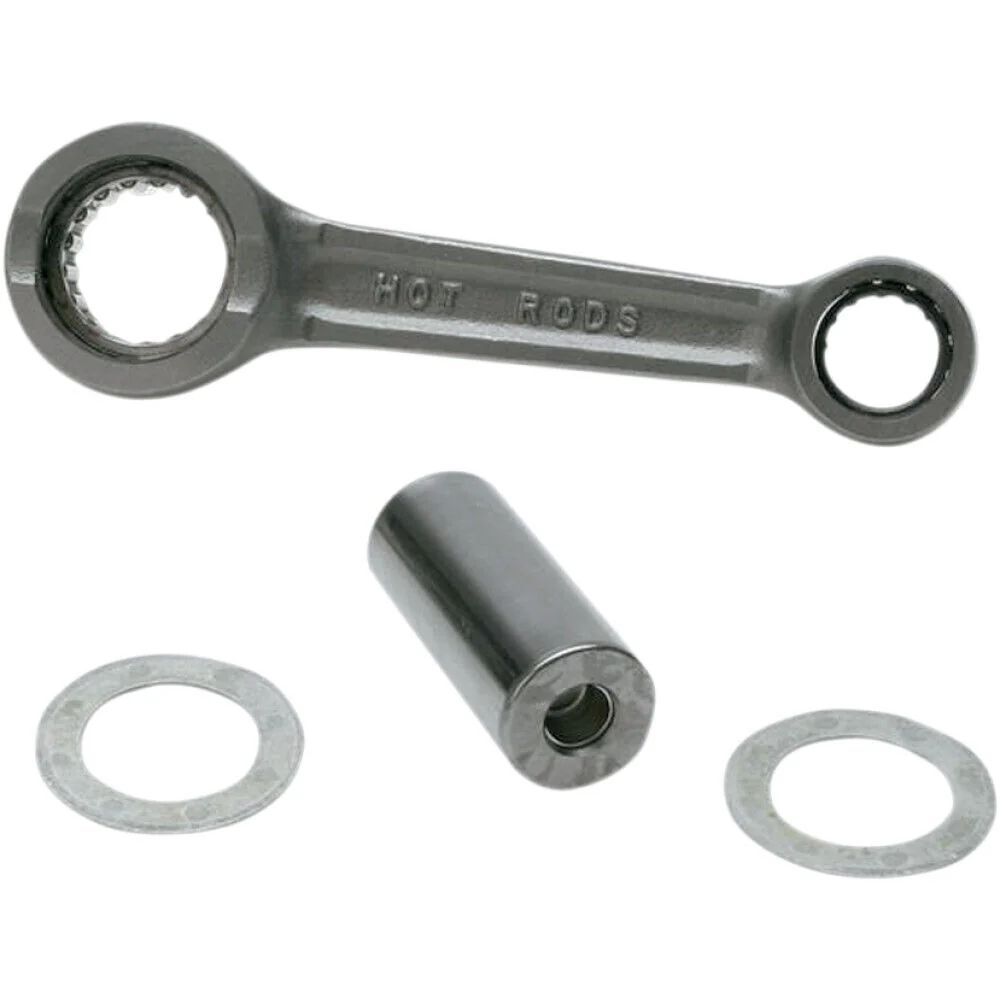

High-quality connecting rod kit designed as a replacement for the Honda CR125R (1988–2007). Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional durability. The advanced design includes side scalloping and vent slots to reduce high-rpm bearing race distortion. Double-forged construction enhances grain flow and dimensional consistency, while shot peening and double-honing increase strength under heavy loads.

The small ends are double-drilled to improve lubrication and cooling for the wrist pin bearing, a critical feature for pistons with crowns close to the wrist pin. Thrust washers and crank pin bearings are silver-coated to enhance lubricity. Kits include all necessary components: rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Features:

• Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58–62 Rc.


• Advanced design minimizes high-rpm bearing race distortion.


• Double-forged for superior grain flow and dimensional consistency.


• Shot-peened and double-honed for enhanced strength.


• Double-drilled small ends for improved lubrication and cooling.


• Silver-coated thrust washers and crank pin bearings for added lubricity.


• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Connecting rod dimensions (mm):

  A = 104, B = 15, C = 22, D = 16, E = 16, F = 54.

Cross-Reference OEM Part Numbers:

• HONDA: 13200-KS6-307, 13200-KS6-317, 13200-KZ4-305, 13300-KSR-730, 13300-KZ4-620, 13300-KZ4-B00, 13300-KSR-730.


• ATHENA: P40321010.


• PSYCHIC: MX-09003.


• HOTRODS: 8101.

Vehicle Fitment:

• Honda CR125R (2007–1988).

Part Number: 56-912.HR
