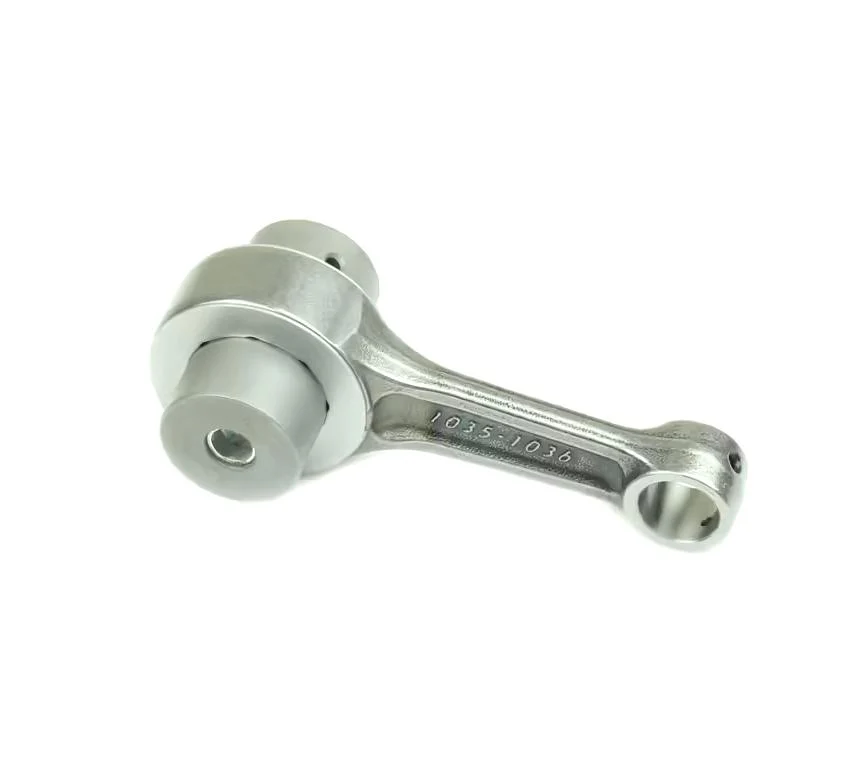

ATHENA Connecting Rod Offroad Kit - P40321036

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 42.00


• Big End Pin Diameter (mm) 34.00


• Big End Width (mm) 20.00


• Center To Center (mm) 101.00


• Net Weight (Kg) 0.74


• Piston Pin Diameter (mm) 19.00


• Small End Width (mm) 18.00


• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 13032-0067


• PSYCHIC MX-09060


• WOSSNER P4020

Vehicle compatibility

• KAWASAKI KX F 450 cc 2009/2018

Part No. 56-2919.ATH (oro2u.com)

S/SEED FROM 56-859_________ TO 56-2919.ATH
