POLARIS ATV
SPORTSMAN 800 ALL     2005-2014,
POLARIS UTV
RANGER 800 2010-14
RANGER 800 CREW 2010-14
RANGER 800 6X6 2010-17
RZR 800 2008-14
RZR 4 800 2010-14
RZR S 800 2009-14

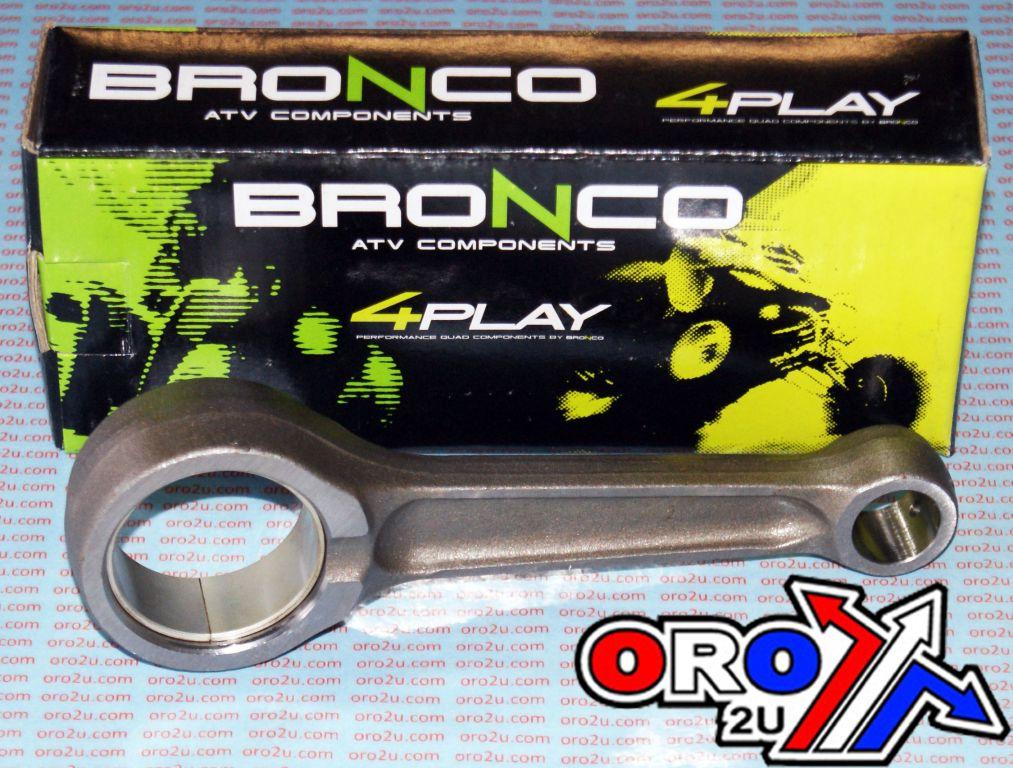

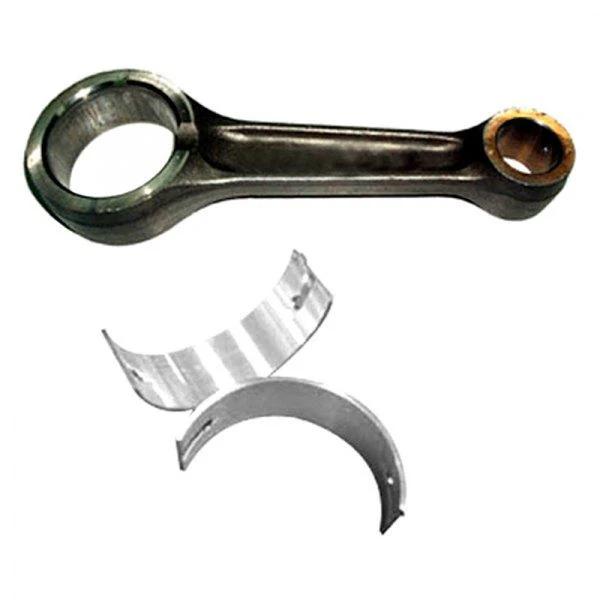

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09408

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220/420,

SIZE	MM
Centre 2 Centre	135
Small End Bearing	None
Small End Bore Ø	18
Small End Width	18
Big End Bearing Shell	39x42.2x19
Big End Bore Ø	42.2
Big End Width	24.2
Big End Pin Ø	39
Big End Pin Length	None
Washer Thickness	None

Part No. 56-2954 (oro2u.com)

Cross reference numbers ONLY.
[Fits into Crankshaft Assembly 2203068 / 2205112 ]
