The Yamaha Connecting Rod Kit is a high-quality OE replacement suitable for various Yamaha models, ensuring superior strength and performance. Manufactured from certified chrome alloy steel (SNCM220), the kit is designed for durability and longevity, making it an ideal choice for engine rebuilds.

Features:

• OE replacement connecting rod constructed from certified chrome alloy steel (SNCM220).


• Crankpins made from hot-rolled ASTM steel and case-hardened for reliability.


• Equipped with caged needle roller bearings for high-RPM longevity.


• Silver-coated bronze phosphor thrust washers for improved lubricity and reduced friction.


• Compatible with both aftermarket and OE crankshafts.

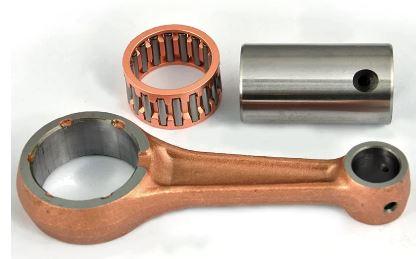

• Sold as a complete assembly with rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if required.

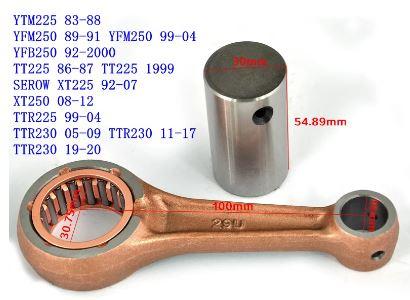

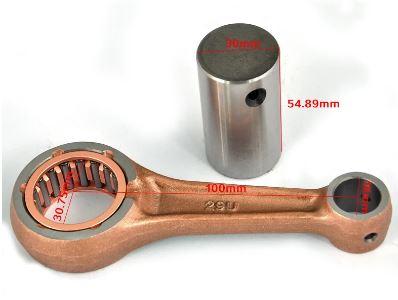

Technical Specifications:

• Center to Center: 100.50 mm


• Small End Bearing: None


• Small End Bore Ø: 16 mm


• Small End Width: 20 mm


• Big End Bearing: 30x37x20 mm


• Big End Pin 30x55 [54.89mm]

Compatible Models:

ATVs:

• Yamaha YTM225 (1983–1988)


• Yamaha YFM250 (1989–1991, 1999–2004)


• Yamaha YFB250 Timberwolf (1992–2000)

Motorcycles:

• Yamaha TT225 (1986–1987, 1999)


• Yamaha XT225 Serow (1992–2007)


• Yamaha XT250 (2008–2012)


• Yamaha TTR225 (1999–2004)


• Yamaha TTR230 (2005–2009, 2011–2017, 2019–2020)

This kit ensures a reliable and efficient solution for engine rebuilds across a range of Yamaha models.

Yamaha

• 1983 YTM225DXK


• 1984  225DX - YTM225DXL


• 1985  - YTM225DRN


• 1985  - YTM225DXN


• 1986 YFM225S


• 1986  4-STROKE - YTM225DRS


• 1986 TT225S


• 1987 YFM225T


• 1987 TT225T


• 1988 YFM225U


• 1989 YFM250W


• 1989 PRO-4 PRO HAULER - YFU1W


• 1989 PRO-4 PRO HAULER W-TURF TIRES - YFU1TW


• 1990 YFM250A


• 1990 TRAILWAY - TW200A


• 1992 SEROW - XT225D


• 1992 SEROW - XT225DC


• 1992 TIMBERWOLF 2WD - YFB250D


• 1992 TIMBERWOLF 2WD - YFB250D_MN


• 1993 SEROW - XT225E


• 1993 SEROW - XT225EC


• 1993 TIMBERWOLF 2WD - YFB250E


• 1993 TIMBERWOLF 2WD - YFB250E_MN


• 1994 SEROW - XT225F


• 1994 SEROW - XT225FC


• 1994 TIMBERWOLF 2WD - YFB250F


• 1994 YFB250FWF_MNH (ME & NH Only)


• 1995 SEROW - XT225G


• 1995 SEROW - XT225GC


• 1995 TIMBERWOLF 2WD - YFB250G


• 1995 TIMBERWOLF 2WD - YFB250G_MN


• 1995 TIMBERWOLF 4WD - YFB250FWG


• 1996 SEROW - XT225H


• 1996 SEROW - XT225HC


• 1996 TIMBERWOLF - YFB250H


• 1996 TIMBERWOLF - YFB250H_MNH


• 1996 TIMBERWOLF - YFB250UH_MNH


• 1996 TIMBERWOLF 2WD - YFB250UH


• 1996 YFB250FWH_MNH (ME &NH Only)


• 1997 SEROW - XT225JC


• 1997 TIMBERWOLF 2WD - YFB250UJ


• 1997 TIMBERWOLF 2WD - YFB250UJ_M


• 1997 TIMBERWOLF 2WD (ME & NH Only) - YFB250FWJ_MNH


• 1998 SEROW - XT225KC


• 1998 TIMBERWOLF - YFB250UK


• 1998 TIMBERWOLF 4WD - YFB250FWK


• 1999 BEAR TRACKER 2WD - YFM250XL


• 1999 BEAR TRACKER 2WD - YFM250XLC


• 1999 OFF-ROAD - TT225L


• 1999 OFF-ROAD - TT225LC


• 1999 SEROW - XT225L


• 2000 BEAR TRACKER 2WD - YFM250XM


• 2000 BEAR TRACKER 2WD - YFM250XMC


• 2000 SEROW - XT225M


• 2000 SEROW - XT225MC


• 2000 TIMBERWOLF 4WD - YFB250FWM


• 2000 TTR225 - TTR225M


• 2000 TTR225 - TTR225MC


• 2001 BEAR TRACKER_REALTREE - YFM250XHN


• 2001 BEAR TRACKER_REALTREE - YFM250XN


• 2001 TTR225 - TT225RN


• 2001 TTR225 - TT225RNC


• 2001 TTR225 - TTR225N


• 2001 TTR225 - TTR225NC


• 2001 XT225 - XT225N


• 2001 XT225 - XT225NC


• 2002 BEAR TRACKER 2WD_REALTREE - YFM250XHP


• 2002 BEAR TRACKER 2WD_REALTREE - YFM250XP


• 2002 TTR225 - TTR225P


• 2002 TTR225 - TTR225PC


• 2002 XT225 - XT225P


• 2002 XT225 - XT225PC


• 2003 BEAR TRACKER - YFM250XR


• 2003 TTR225 - TTR225R


• 2003 TTR225 - TTR225RC


• 2003 XT225 - XT225RC


• 2004 BEARTRACKER - YFM25XS


• 2004 TT-R225 - TTR225S


• 2004 TT-R225 - TTR225SC


• 2004 XT225 - XT225S


• 2004 XT225 - XT225SC


• 2005 TT-R230 - TTR230T


• 2005 TT-R230 - TTR230TC


• 2005 XT225 - XT225T


• 2005 XT225 - XT225TC


• 2006 TT-R230 - TTR230V


• 2006 XT225 - XT225V


• 2006 XT225 - XT225VC


• 2007 XT225 - XT225W


• 2007 XT225 CA - XT225WC


• 2008 TTR230 - TTR230X


• 2012 TTR230 - TTR230B


• 2013 TTR230 - TTR230D


• 2014 TTR230 - TTR230E


• 2015 TTR230 - TTR230F


• 2016 TTR230 - TTR230G


• 2017 TTR230 - TTR230H


• 2019 TTR230 - TTR230K


• 2020 TTR230 - TTR230L
