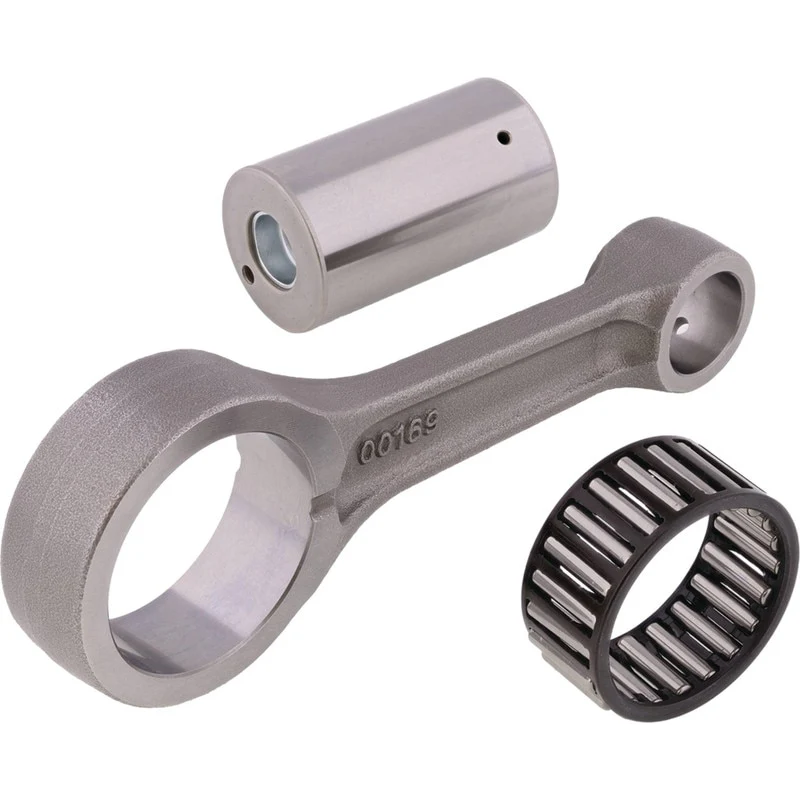

This connecting rod kit is a Hot Rods assembly (part number HR00172) for Yamaha 700cc 4-cycle applications across Grizzly, Kodiak, and Wolverine models within the listed years. It includes the connecting rod, crank pin, and crank pin bearing, with precise dimensions for correct fit and operation.

Features

•


  Includes connecting rod, crank pin and crank pin bearing




Specifications

•


  Part number: HR00172





•


  Engine type: 4-cycle





•


  Connecting rod centre-to-centre: 134.500 mm





•


  Connecting rod big end I.D.: 47 mm





•


  Connecting rod big end width: 22 mm





•


  Connecting rod small end I.D.: 23 mm





•


  Connecting rod small end width: 22 mm





•


  Pin diameter: 38 mm





•


  Pin length: 66 mm




Cross-Reference OEM Part Numbers

•


  2MB-E1651-10-00




Vehicle Fitments

•


  YFM 700 D Grizzly 4x4 (16-17)





•


  YFM 700 DH Grizzly 4x4 Hunter (16-17)





•


  YFM 700 FG Grizzly 4x4 (16-18)





•


  YFM 700 GP Grizzly EPS 4x4 (16-18)





•


  YFM 700 GPH Grizzly EPS 4x4 Hunter (16-18)





•


  YFM 700 GPL Grizzly EPS 4x4 LE (16-18)





•


  YFM 700 GPS Grizzly EPS 4x4 SE (17-18)





•


  YFM 700 Grizzly EPS Graphite (18)





•


  YFM 700 KD Kodiak 4x4 (16-18)





•


  YFM 700 KDH Kodiak 4x4 Hunter (16-18)





•


  YFM 700 KP Kodiak EPS 4x4 (16-18)





•


  YFM 700 KPH Kodiak EPS 4x4 Hunter (16-18)





•


  YFM 700 KPS Kodiak EPS 4x4 SE (16-18)





•


  YFM 700 PH Grizzly EPS 4x4 Hunter (17-18)





•


  YXE 700 D Wolverine R-Spec (16)





•


  YXE 700 DH Wolverine R-Spec Hunter (16,18)





•


  YXE 700 P Wolverine R-Spec EPS (16-18)





•


  YXE 700 PH Wolverine R-Spec EPS Hunter (16-18)





•


  YXE 700 PS Wolverine R-Spec EPS SE (16-17)





•


  YXE 700 WDB Wolverine (16-18)





•


  YXE 700 WDBH Wolverine Hunter (16-17)





•


  YXE 700 WPB Wolverine EPS (17)





•


  YXE 700 WPBH Wolverine EPS Hunter (17)
