YAMAHA ATV
2001 YFM660R Raptor,

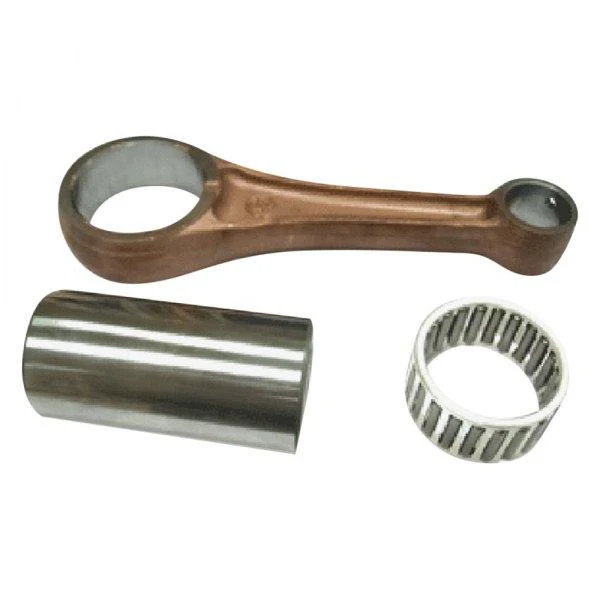

Connecting Rod Rebuild kit BRONCO AT-09174

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
SIZE

	MM
Centre 2 Centre	136.50
Small End Bearing	None
Small End Bore Ø	22
Small End Width	22
Big End Bearing	37x45x21.80
Big End Bore Ø	45
Big End Width	22
Big End Pin Ø	37
Big End Pin Length	73.80
Washer Thickness	None

Part No.   56-206.DR   (Distributed oro2u.com)

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 136.5, B = 22, C = 37, D = 22, E = 22, F = 73.80mm

Cross reference numbers ONLY.
VA2018 [73.8], 5LP-11651-00-00, HOTROD 8614, 5KM-11400-00-00
