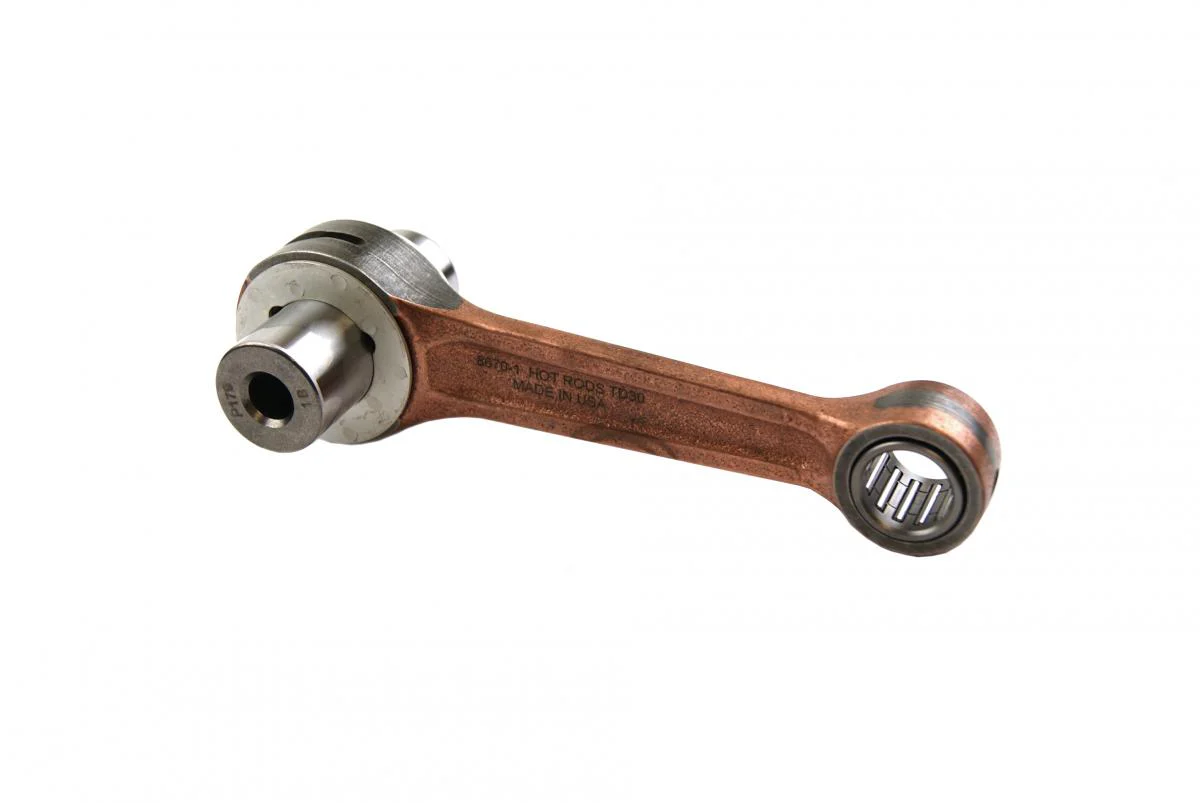

High-quality connecting rod kit engineered for performance and durability. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit features advanced scalloping and vent slots in the big end to minimize bearing race distortion at high RPMs. Double-forged rods enhance grain flow and maintain dimensional consistency, while shot-peening and double-honing deliver superior strength under heavy loads.

The small ends are double-drilled to optimize lubrication and cooling, ensuring reliable operation of wrist pin bearings even under extreme conditions. Silver-coated thrust washers and crank pin bearings provide additional lubricity for enhanced longevity. The kit is sold complete with all components needed for installation.

Features:

• Hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.


• Scalloped vent slots reduce high RPM bearing race distortion.


• Double-forged rods improve grain flow and dimensional stability.


• Shot-peened and double-honed for increased strength under heavy loads.


• Double-drilled small ends for optimal lubrication and cooling of wrist pin bearings.


• Silver-coated thrust washers and crank pin bearings for enhanced performance.

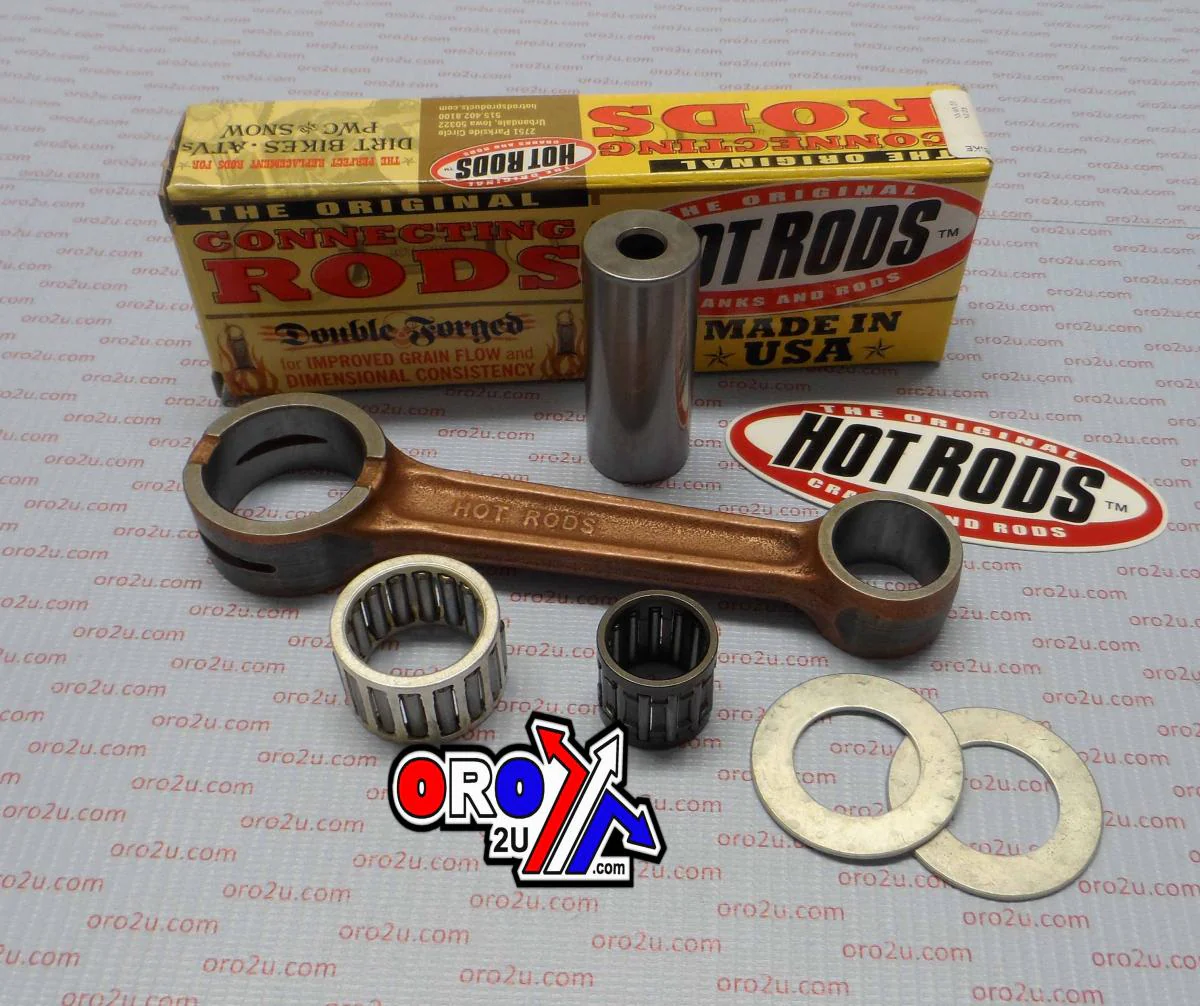

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bearing: 22x28x15.7 mm


• Big End Bore: 28.00 mm


• Big End Width: 15.90 mm

Cross-Reference OEM Part Numbers:

• KTM: 50330015100

Vehicle Fitments:

• KTM 125 EXC: 2007–2009


• KTM 125 SX: 2007–2015


• KTM 144 SX: 2007–2008


• KTM 150 SX: 2009–2015


• KTM 150 XC: 2010–2014

Part Number: 56-867.HR
