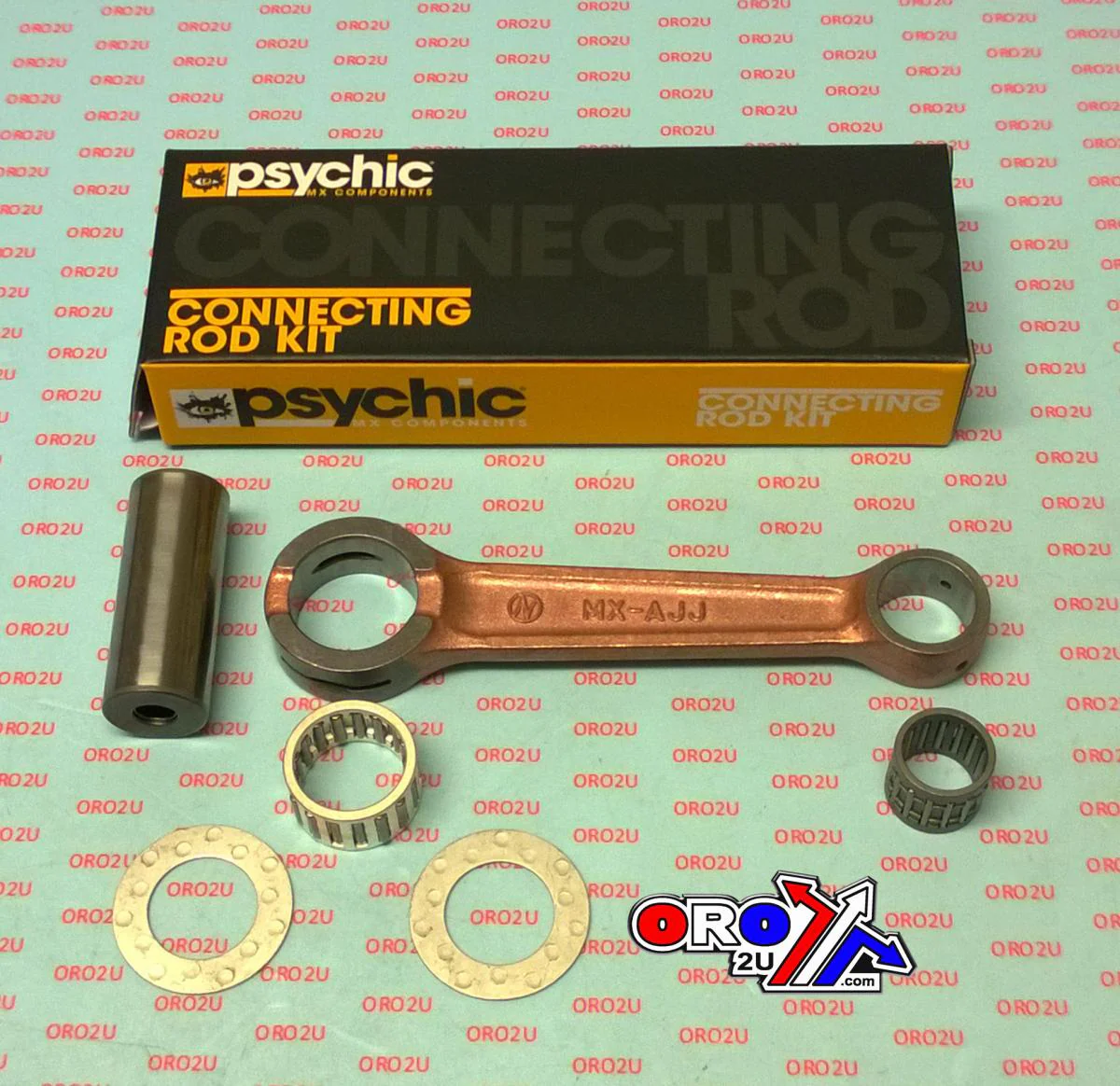

High-quality connecting rod rebuild kit designed for KTM two-stroke models. Manufactured using hot-rolled ASTM and case-hardened materials, this kit ensures durability and precision. The double-forged rods enhance grain flow and maintain consistent dimensions, while shot-peening and double-honing processes provide superior strength under heavy loads. The small end features double-drilled holes for enhanced lubrication and cooling, crucial for high-performance applications. Thrust washers and crank pin bearings are silver-coated for added lubricity. The kit includes all necessary components for a complete rebuild: rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Features:

• Hot-rolled ASTM and case-hardened materials for enhanced durability.


• Double-forged rods for improved grain flow and dimensional consistency.


• Shot-peened and double-honed rods for increased strength under load.


• Double-drilled small end for superior lubrication and cooling.


• Silver-coated thrust washers and crank pin bearings for added lubricity.


• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Centre-to-Centre Distance: 132 mm


• Small End Bearing Dimensions: 18x22x19.8 mm


• Small End Bore Ø: 22 mm


• Small End Width: 17.00 mm


• Big End Bearing Dimensions: 24x30x16.8 mm


• Big End Bore Ø: 30 mm


• Big End Width: 16.90 mm


• Big End Pin Ø: 24 mm


• Big End Pin Length: 59.90 mm


• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

54630015044, HOTRODS 8111, PROX 03.6311, WOSSNER P2024

Vehicle Compatibility:

KTM Models (1990–2003):

250 SX-EXC, 300 SX-EXC, 360/380cc

• 1990–1999: 250 EXC, 250 SX, 250 XC, 250 XC-W


• 1990–2003: 300 EXC, 300 MXC, 300 XC, 300 XC-W

Part Number: 56-894.DR
