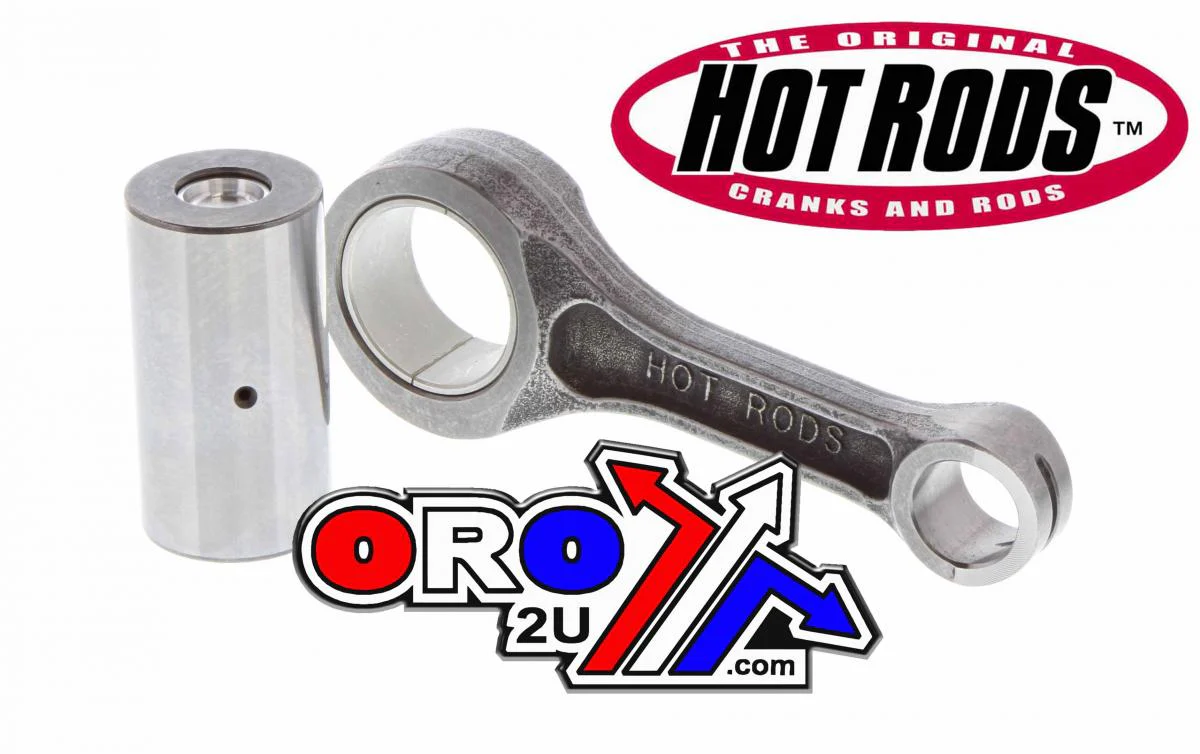

Heavy-duty connecting rod kit designed for KTM 350 EXC-F (2014-2016) and KTM 350 XCF-W (2014-2016) models. This high-performance OE replacement kit ensures reliability, strength, and durability for demanding applications, including all necessary components for a complete rebuild.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength and durability.


• Double-forged rods improve grain flow and maintain dimensional consistency.


• Advanced caged needle roller bearing design ensures high-RPM performance.


• Big end design with side scalloping and vent slots minimizes bearing race distortion at high RPM.


• Shot-peened to eliminate surface stress risers and smoothly blend rod forging radiuses.


• Double-honed for ultra-round bearing surfaces, enhancing reliability at high RPM.


• Small ends are double drilled for additional lubrication and cooling of the wrist pin bearing.


• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.

Technical Specifications:

• Centre to Centre: 102.00 mm


• Big End Bore: 36.00 mm


• Pin Diameter: 32.00 mm


• Pin Length: 60.00 mm


• Small End Bore: 18.00 mm

Cross-Reference OEM Part Numbers:

KTM: 77830015044

Vehicle Fitment:

• KTM 350 EXC-F: 2014, 2015, 2016.


• KTM 350 XCF-W: 2014, 2015, 2016.

Part Number: 56-957.HR
