Heavy-duty connecting rod kit designed as a direct OE replacement, offering superior strength and durability. Constructed from certified 8620 AISI steel, this kit provides reliable performance for high-rpm applications. Advanced design minimizes bearing race distortion and ensures long-lasting functionality. Fully compatible with Hot Rods and OE crankshafts.

Features:

• Manufactured from certified 8620 AISI steel for exceptional strength and durability.


• Big end design features strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.


• Crankpins made from hot-rolled ASTM 4115, case-hardened to 58-62 Rc.


• Latest caged needle roller bearing designs for enhanced longevity at high rpm.


• Thrust washers made from bronze phosphor and silver-coated for improved lubricity.

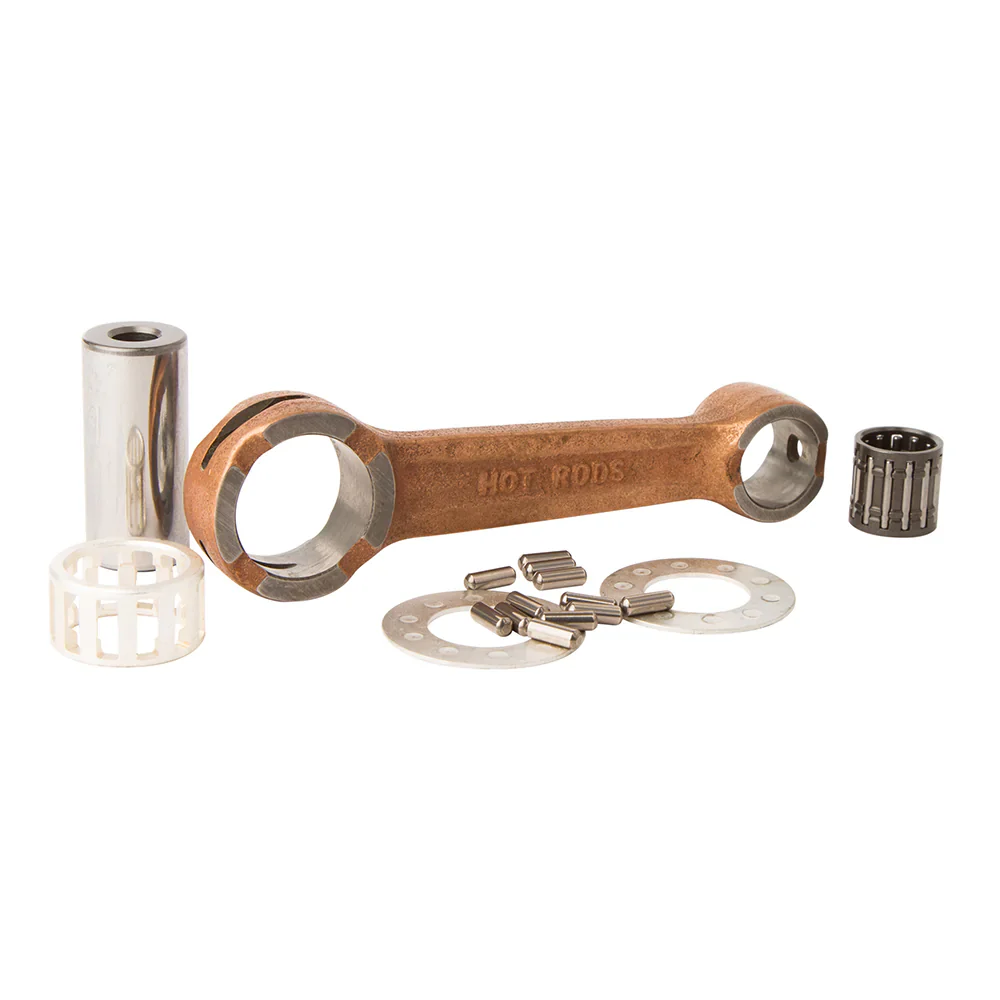

• Complete rod assembly includes connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers.


• Made in the U.S.A.

Technical Specifications:

• Big End Bore (mm): 22.00


• Big End Width (mm): Not specified


• Center to Center (mm): 85.00


• Pin Diameter (mm): 16.00


• Pin Length (mm): 36.00


• Small End Bore (mm): 15.00


• Small End Width (mm): Not specified


• Washer Thickness (mm): 0.85

Vehicle Compatibility:

KTM:

• 2018 KTM 50 SX


• 2017 KTM 50 SX


• 2016 KTM 50 SX


• 2015 KTM 50 SX


• 2014 KTM 50 SX


• 2013 KTM 50 SX


• 2012 KTM 50 SX


• 2011 KTM 50 SX


• 2010 KTM 50 SX


• 2009 KTM 50 SX


• 2017 KTM 50 SX Mini


• 2016 KTM 50 SX Mini


• 2015 KTM 50 SX Mini


• 2014 KTM 50 SX Mini


• 2006–2008 KTM 50 SX Pro Jr


• 2004–2005 KTM 50 SX Pro Junior LC


• 2004–2005 KTM 50 SX Pro Sr

Husqvarna:

• 2018 Husqvarna TC50


• 2017 Husqvarna TC50

Part Number: 8135
