CONNECTING ROD SX-F350 KTM, NAMURA RX-70001 MX-09018, 77230015044
KTM
2011-12 350 SX-F
2010-12 350 EXC-F
2012-13 350 XCF-W
2011-12 350 XC-F
EXC-F 350 2010-2012 Pro Series
HUSABERG
2013-14 FE350

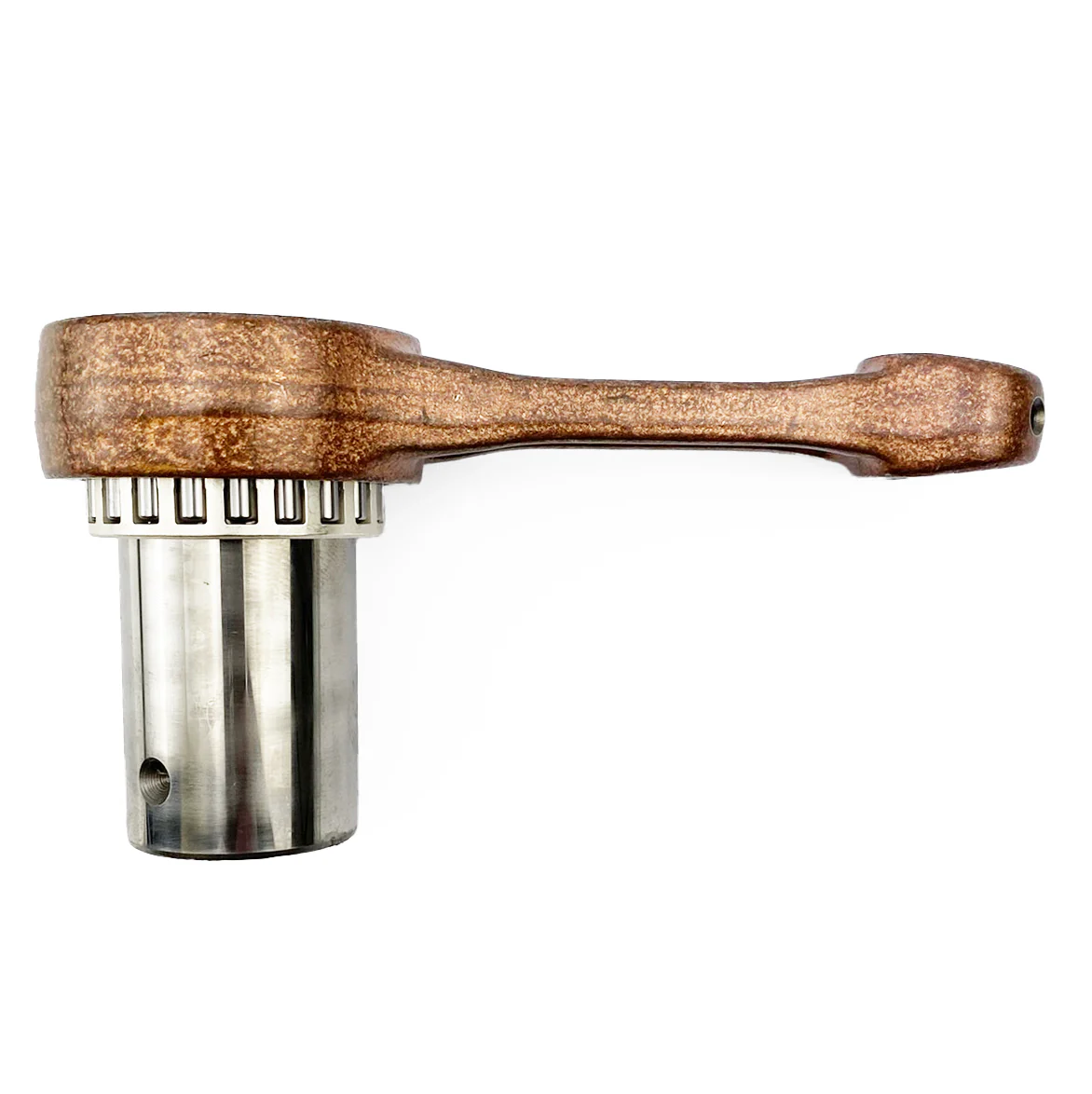

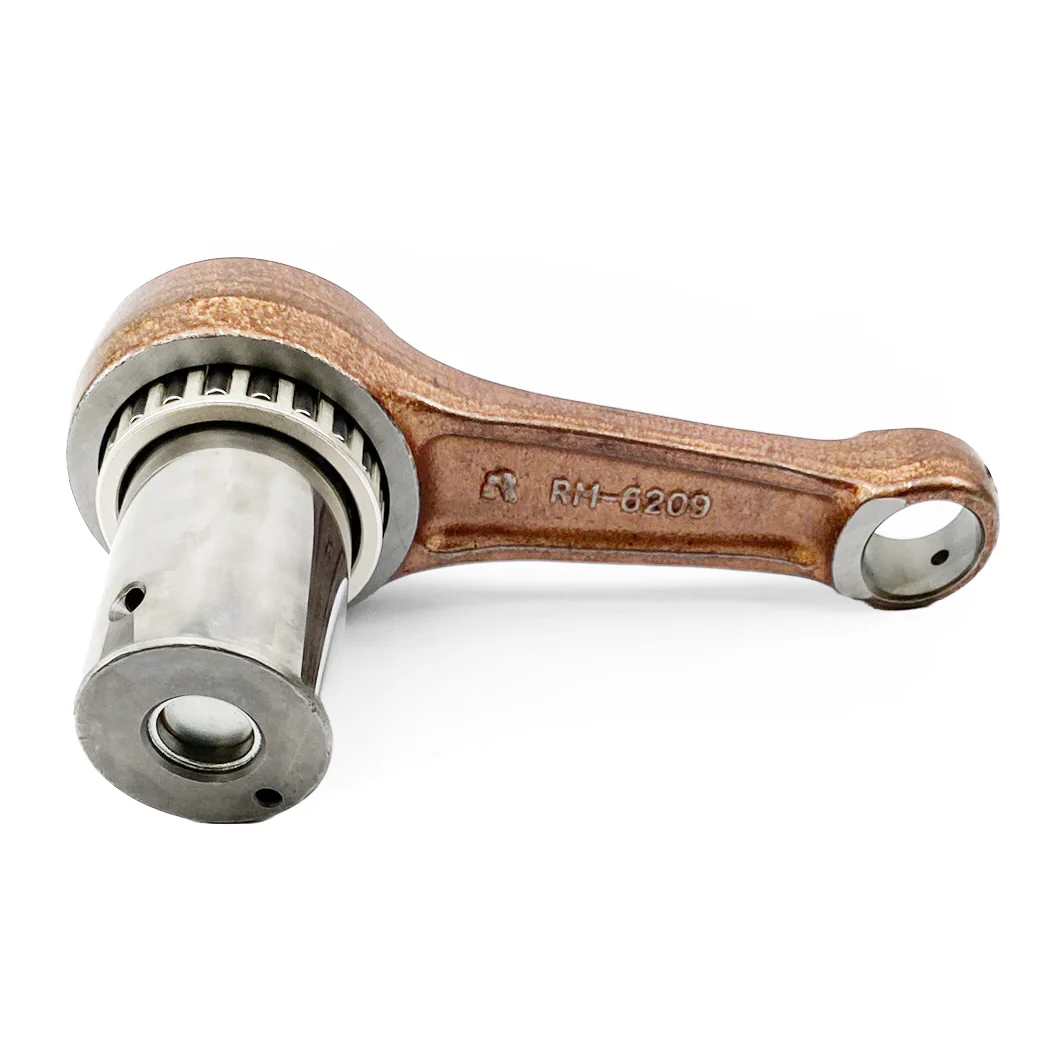

NAMURA CONNECTING ROD KIT – MX-09018
- Heavy-duty OE replacement connecting rod designed for durability and performance.
- Manufactured from certified chrome alloy steel for superior strength.
- Crankpins made from hot-rolled ASTM steel and case-hardened for enhanced longevity.
- Precision-engineered caged needle roller bearings ensure high RPM stability.
- Thrust washers crafted from phosphor bronze with a silver coating for improved wear resistance.
- Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required.
- Fully compatible with both aftermarket and OE crankshafts.
- Material: SNCM220
Specifications (MM)
Center to Center: 102
Small End Bore Ø: 18
Small End Width: 17
Big End Bearing: 32x40x19.8
Big End Bore Ø: 40
Big End Width: 20
Big End Pin Ø: 32
Big End Pin Length: 60.00
Washer Thickness: None
Part No. 56-2984.NAM
Cross Reference Numbers:
77230015044, WOSSNER P4040, PROX 03.6351, HOTRODS 8693
