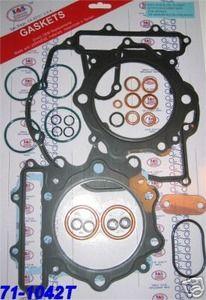

This K&S Technologies gasket set is used during a top end rebuild on compatible Honda XR models, replacing the upper engine gaskets, sealing washers, O-rings and valve stem seals disturbed during cylinder head, cylinder and valve train service.

Kit Contents

• 1 x Cylinder head gasket for Honda XR600R applications


• 1 x Cylinder head gasket for Honda XR650L applications


• 1 x Cylinder base gasket


• 1 x Cylinder head cover gasket


• 4 x Valve stem seals


• 2 x Exhaust pipe gaskets


• 1 x Muffler lid gasket


• 2 x Air path pipe gasket/washers for Honda XR650L applications


• 4 x Valve guide O-rings


• 4 x Tappet cap O-rings


• 1 x Carburettor insulator O-ring


• 1 x Tensioner shaft O-ring


• 1 x 6.5 mm sealing washer


• 4 x 14 mm camshaft sealing washers

Specifications

• Valve guide O-ring size: 10 x 1.6 mm


• Tappet cap O-ring size: 39.5 x 2.6 mm


• Tensioner shaft O-ring size: 14.5 x 2.4 mm


• Sealing washer size: 6.5 mm


• Camshaft sealing washer size: 14 mm


• Selected gaskets are supplied with silicone line coating

Cross-Reference OEM Part Numbers

•


  K&S Technologies: 52-1208




Vehicle Fitments

• Honda XR600R: 1989-2000


• Honda XR650L: 1993-2008
