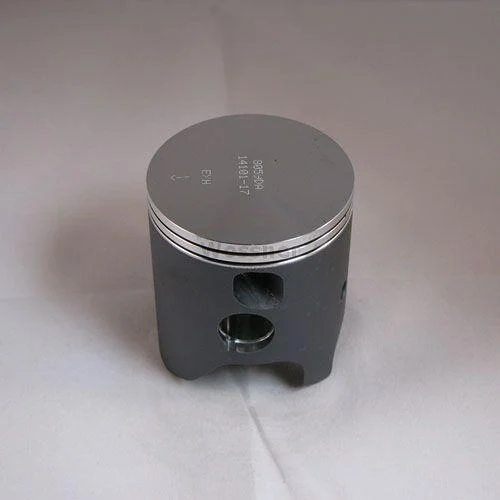

This Wossner piston kit is designed with a 66.40mm bore and standard sizing for the Suzuki RM250 models from 2000 to 2002. Engineered from high-quality forged material, it provides superior durability, heat management, and structural stability essential for 2-stroke performance engines.

Features

•


  Forged construction enhances strength and longevity under extreme engine conditions





•


  Facilitates efficient heat transfer from combustion chamber to cylinder wall





•


  Elliptical design ensures uniform bearing contact under thermal expansion





•


  Reduces localised stress to prevent piston collapse





•


  Precision-engineered and manufactured in Germany




Specifications

•


  Bore: 66.40 mm





•


  Actual piston size: 66.34 mm





•


  Stroke: 72.00 mm





•


  Display volume: 249 cm³





•


  Clearance: 0.06 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 38.00 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8059DA





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640 x 2





•


  Rod: P2026





•


  Part No: 56-W756.A.WO




Vehicle Fitments

•


  Suzuki RM250 2000





•


  Suzuki RM250 2001





•


  Suzuki RM250 2002
