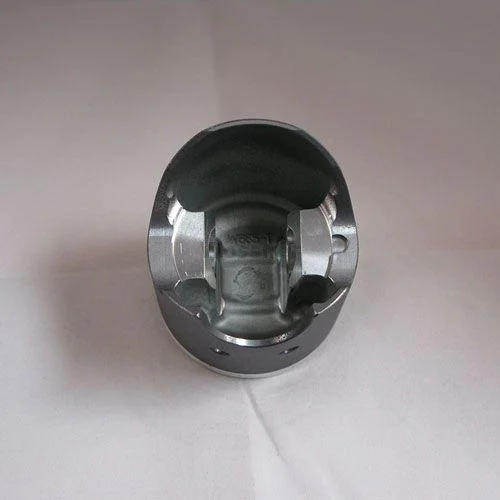

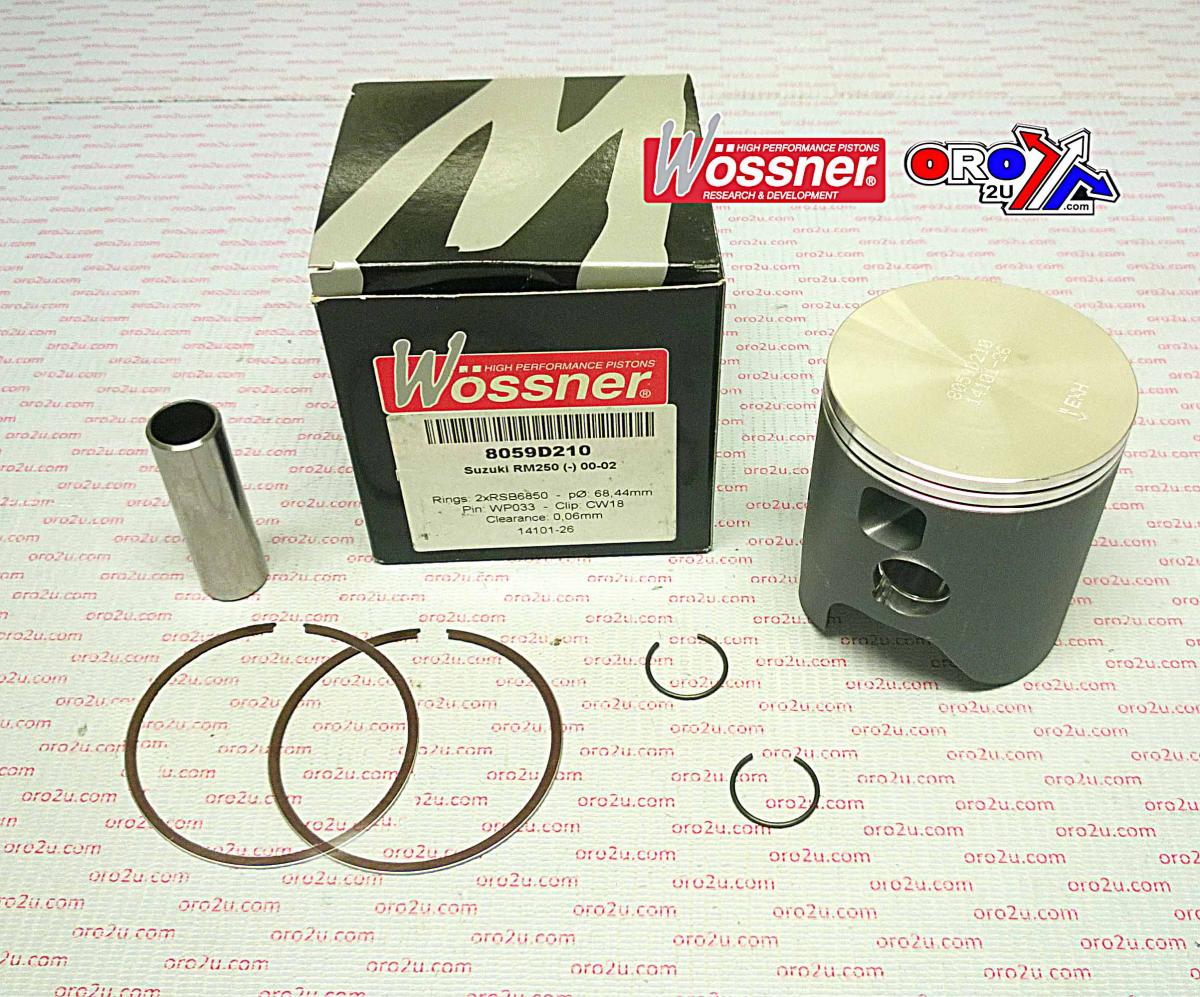

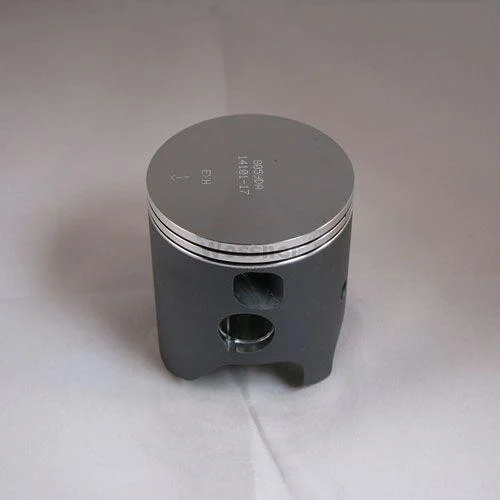

This Wossner piston kit features a 66.42mm bore, offering a +0.02mm oversize fitment for the Suzuki RM250 models produced between 2000 and 2002. With forged construction and precision engineering, it delivers excellent durability and efficient heat transfer, suited for high-performance 2-stroke applications.

Features

•


  Forged piston ensures increased strength and wear resistance





•


  Designed for optimal heat dissipation from the combustion chamber to the cylinder





•


  Elliptical design distributes thrust loads evenly under expansion





•


  Helps prevent piston collapse by reducing localised pressure





•


  Manufactured to high standards in Germany




Specifications

•


  Bore: 66.42 mm





•


  Actual piston size: 66.36 mm





•


  Stroke: 72.00 mm





•


  Display volume: 249 cm³





•


  Clearance: 0.06 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 38.00 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8059DC





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640 x 2





•


  Rod: P2026





•


  Part No: 56-W756.C.WO




Vehicle Fitments

•


  Suzuki RM250 2000





•


  Suzuki RM250 2001





•


  Suzuki RM250 2002
