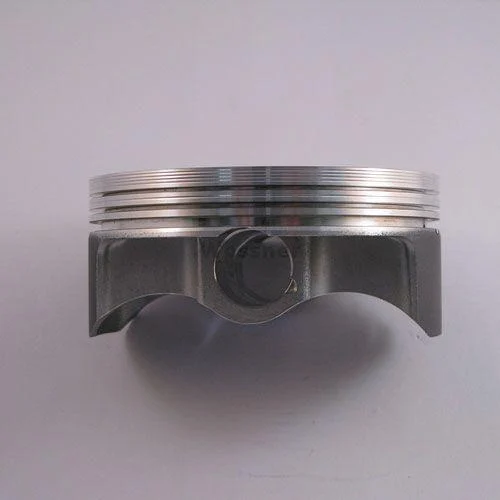

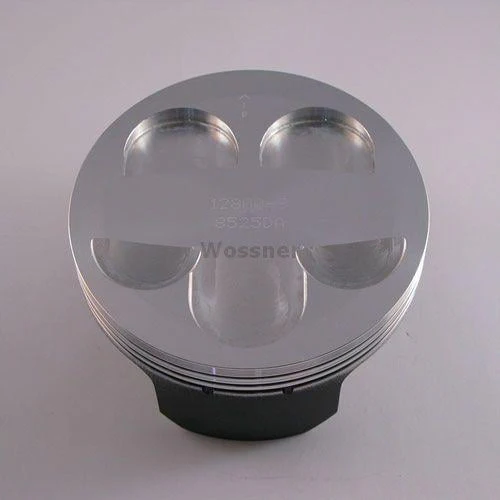

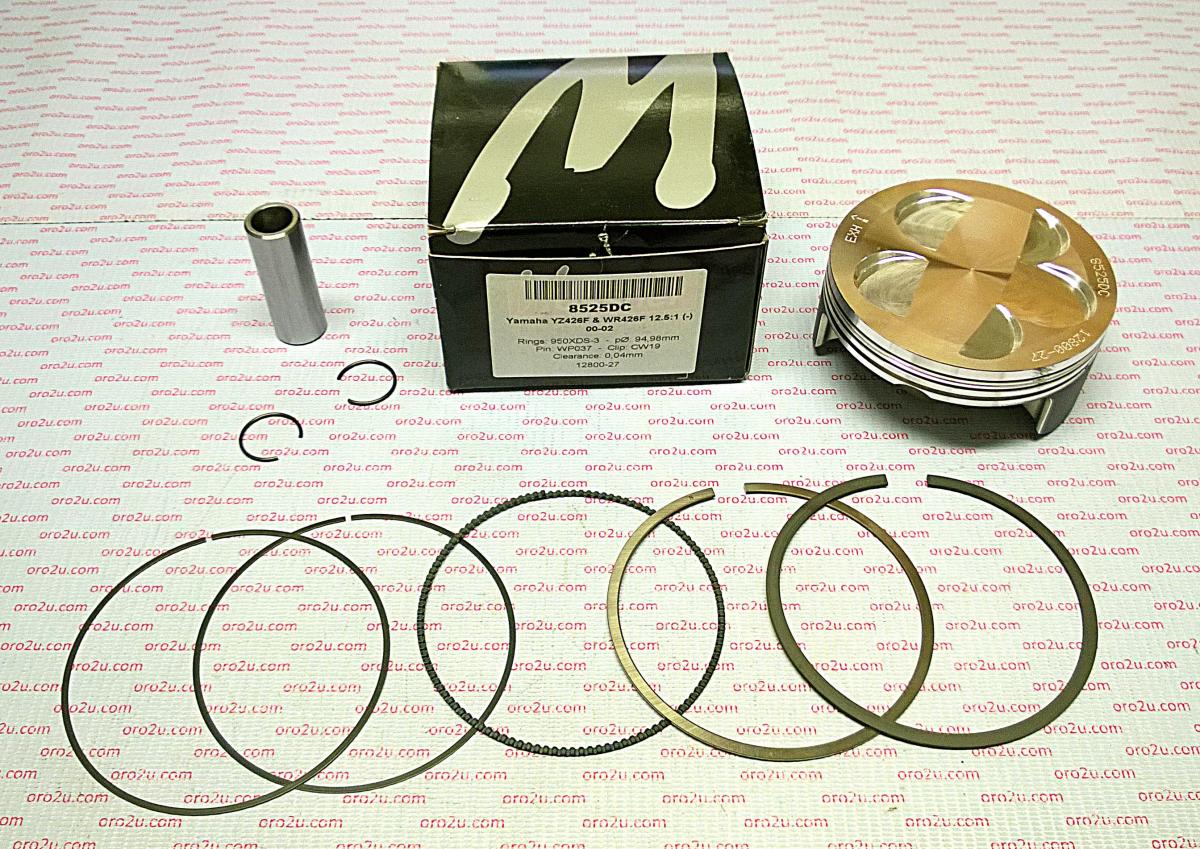

The Wossner 95mm Bore Piston Kit (Part No. 8525DA) is a high-performance forged piston designed for Yamaha YZ426F and WR426F models from 2000 to 2002. Engineered for strength and durability, it optimizes heat transfer within the combustion chamber and features an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance.

Features

• High-strength forged piston construction


• Optimized heat transfer for improved combustion efficiency


• Elliptical design for even thrust load distribution


• Manufactured in Germany

Specifications

• Bore Size: 95mm


• Actual Bore Diameter: 94.96mm


• Compression Ratio: OEM


• OEM Compression Ratio: 12.50:1


• Displacement: 426cc


• Stroke: 60.10mm


• Clearance: 0.04mm


• Dome Volume: -7.00cm³


• Compression Height: 24.10mm

Cross-Reference OEM Part Numbers

• Lock P/N: CW19


• Pin P/N: WP037


• Ring Set P/N: 950XDS


• OEM Part Number: 5NG-11631-10-00

Vehicle Fitments

• Yamaha YZ426F (2000-2002)


• Yamaha WR426F (2000-2002)
