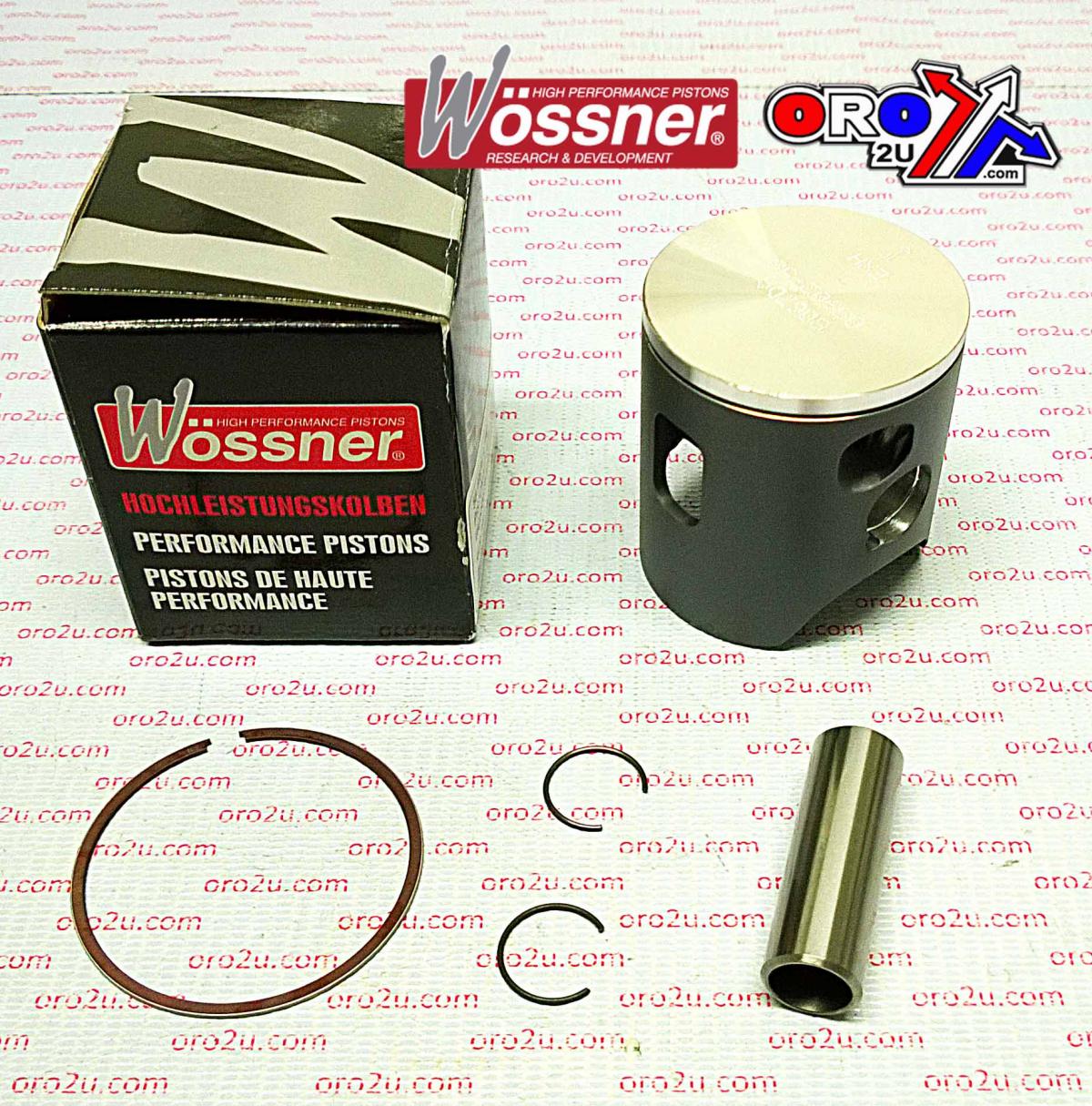

The 55mm Bore Wossner Piston Kit (Part No. 8067D100) is a +1.00 oversized forged piston designed for Honda CR125 models from 2000 to 2003. Manufactured in Germany, it features an elliptical profile that evenly distributes thrust loads and minimises stress concentrations caused by heat expansion. This piston is optimised for two-stroke performance with efficient heat transfer characteristics and structural reliability under high-load conditions.

Features

•


  Forged construction for high durability and strength





•


  Engineered to enhance heat dissipation from the combustion area





•


  Elliptical design distributes pressure evenly and prevents collapse





•


  Developed for high-performance two-stroke engines





•


  Made in Germany




Specifications

•


  Bore Size: 55.00 mm





•


  Actual Bore: 54.95 mm





•


  Clearance: 0.05 mm





•


  Compression Height: 28.00 mm





•


  Stroke: 54.50 mm





•


  Displacement: 125 cm³





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Vehicle Fitments

•


  2000 Honda CR 125





•


  2001 Honda CR 125





•


  2002 Honda CR 125





•


  2003 Honda CR 125




Included Components

•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5500





•


  Rod: P2009
