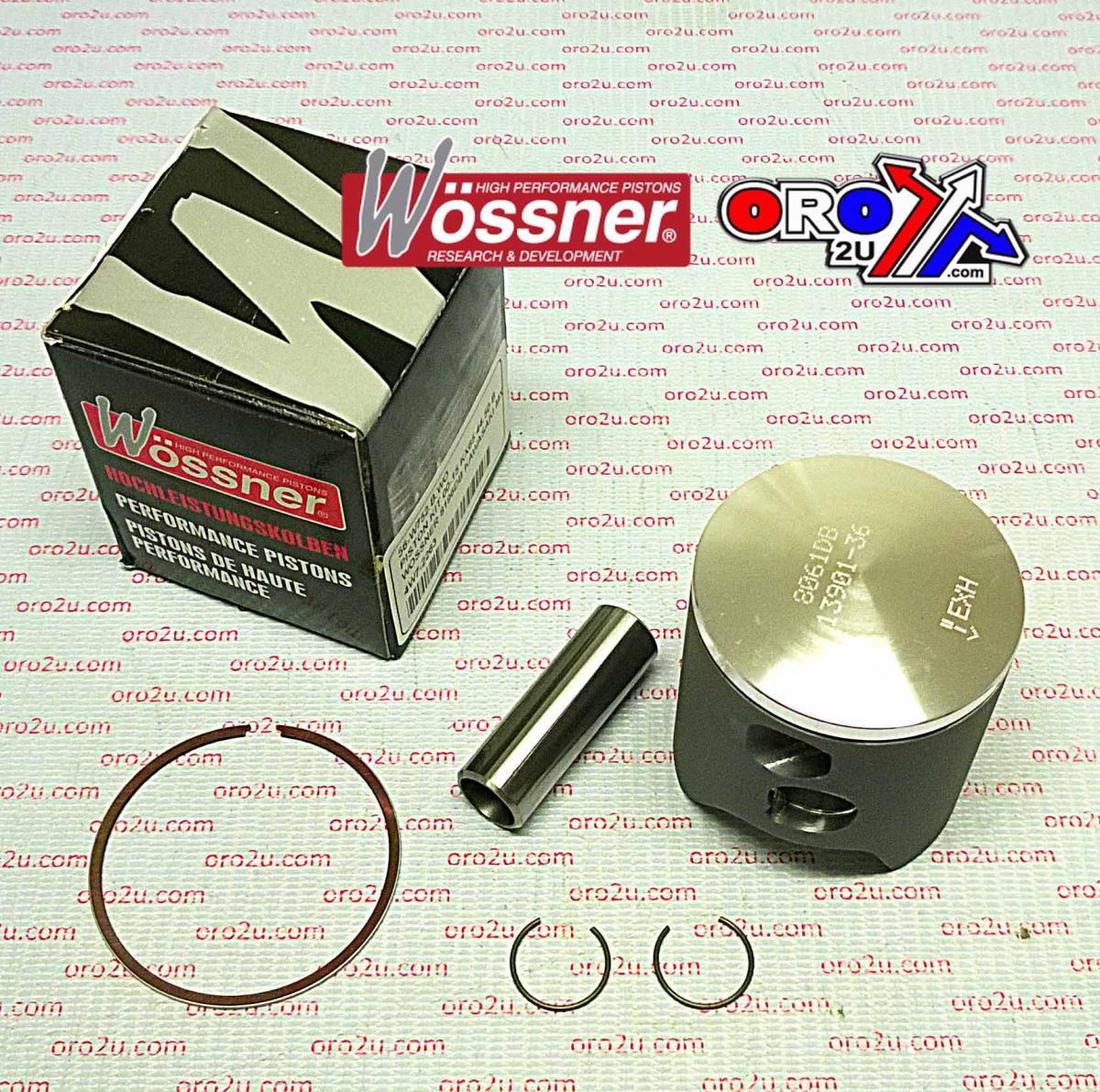

This Wossner piston kit features a 55.00mm bore, designed as a +1.00mm oversize replacement for high-performance 2-stroke engines. Built with forged construction, it offers exceptional strength and heat handling characteristics, ideal for demanding conditions in racing or heavy-duty off-road use. Compatible with Suzuki RM125 models from 2000 to 2003.

Features

•


  Forged piston for maximum strength and durability under stress





•


  Designed for efficient combustion heat transfer to the cylinder wall





•


  Elliptical shape enables uniform load distribution under thermal expansion





•


  Minimises the risk of piston collapse by preventing localised pressure build-up





•


  Precision-manufactured in Germany




Specifications

•


  Bore: 55.00 mm





•


  Actual piston size: 54.95 mm





•


  Stroke: 54.50 mm





•


  Display volume: 125 cm³





•


  Clearance: 0.05 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 29.50 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8061D100





•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5500





•


  Rod: P2013





•


  Part No: 56-W754.100.WO




Vehicle Fitments

•


  Suzuki RM125 2000





•


  Suzuki RM125 2001





•


  Suzuki RM125 2002





•


  Suzuki RM125 2003
