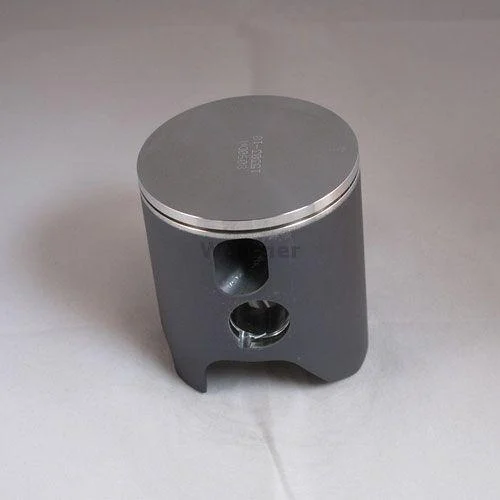

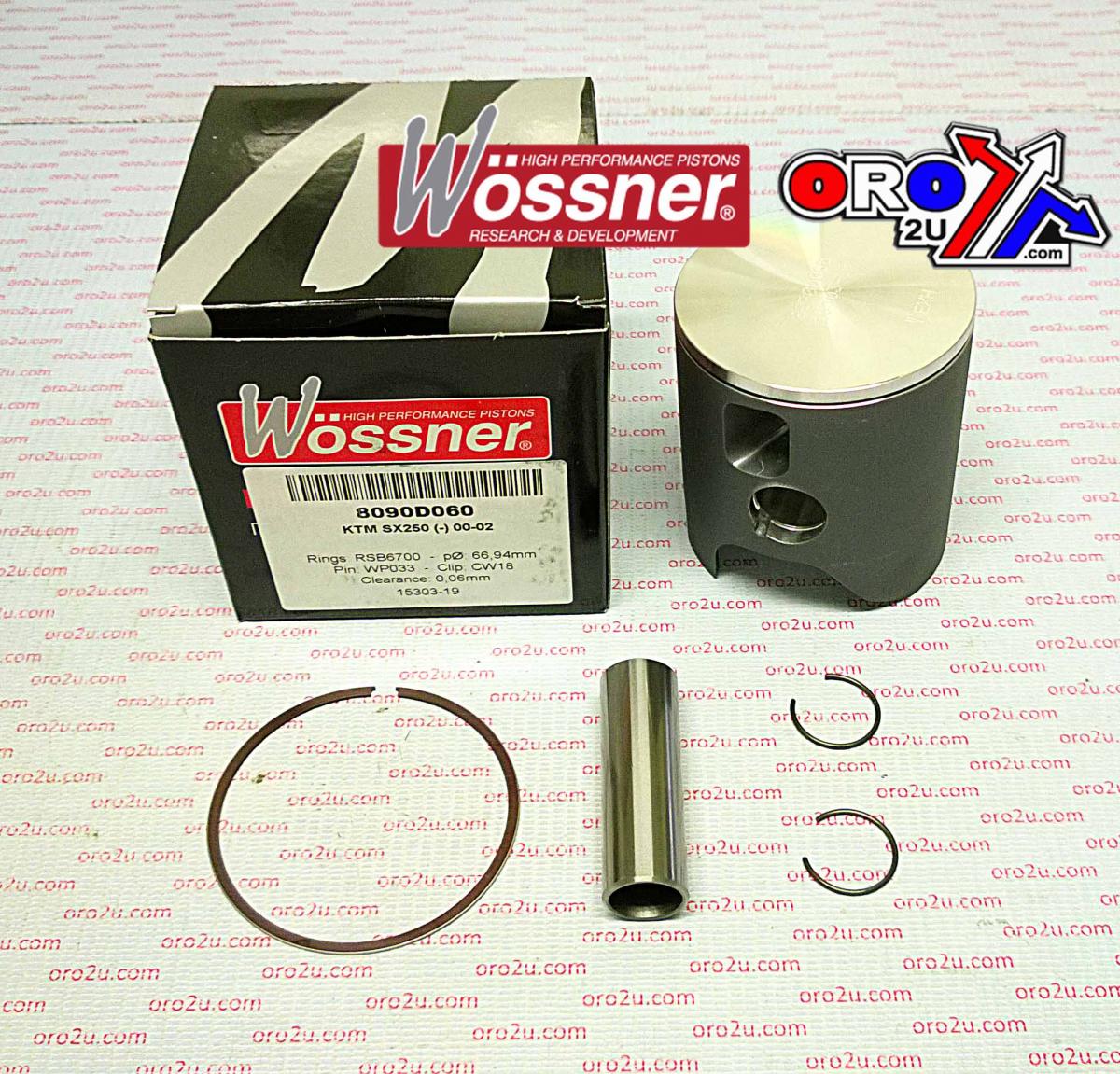

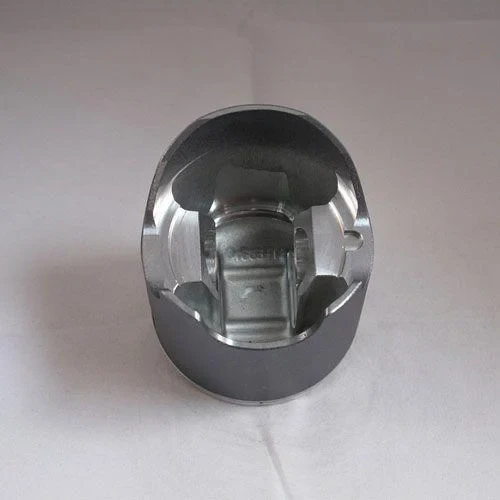

This Wossner piston kit features a 66.40mm bore in standard size, designed for KTM SX250 models from 2000 to 2002. Manufactured with forged construction, it delivers exceptional strength and heat management tailored to high-performance 2-stroke engines.

Features

•


  Forged piston construction offers superior strength and durability





•


  Optimised for effective heat transfer to the cylinder wall from the combustion chamber





•


  Elliptical design maintains a consistent bearing surface under thermal expansion





•


  Distributes thrust loads evenly to minimise localised stress and prevent piston collapse





•


  Made in Germany with high-precision manufacturing




Specifications

•


  Bore: 66.40 mm





•


  Actual piston size: 66.34 mm





•


  Stroke: 72.00 mm





•


  Display volume: 249 cm³





•


  Clearance: 0.06 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 38.00 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8090DA





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640





•


  Part No: 56-W774.A.WO





•


  774M06640




Vehicle Fitments

•


  KTM SX250 2000





•


  KTM SX250 2001





•


  KTM SX250 2002
