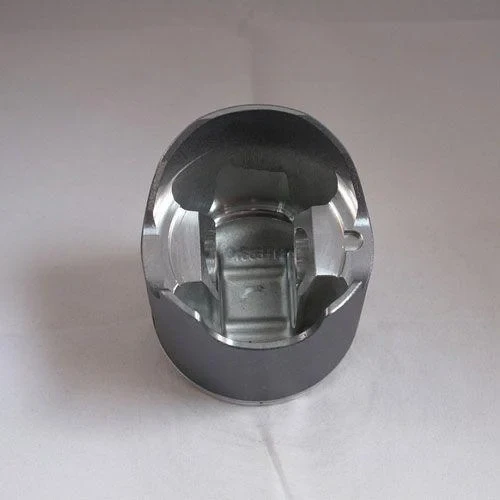

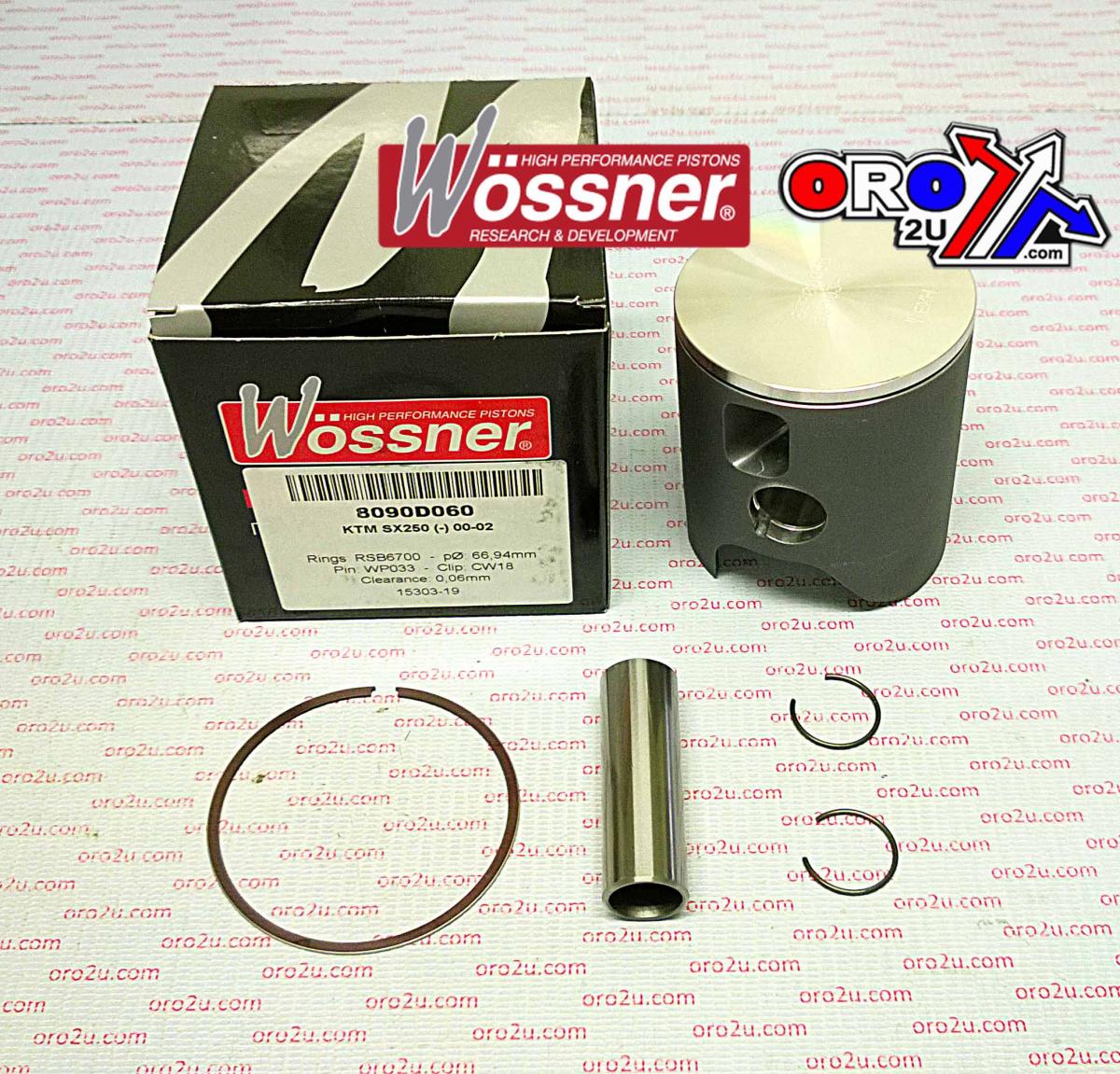

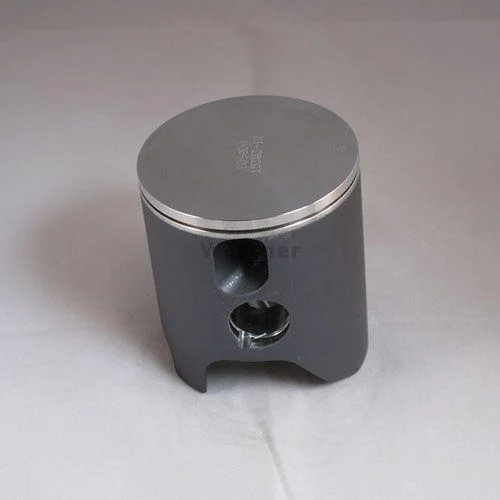

This Wossner piston kit with a 66.41mm bore (+0.01mm oversize) is precision-engineered for KTM SX250 models from 2000 to 2002. Built from forged material, it provides enhanced strength, heat resistance, and consistent performance for demanding 2-stroke applications.

Features

•


  Forged piston ensures high strength and durability





•


  Designed for optimal combustion chamber heat transfer to the cylinder wall





•


  Elliptical profile offers consistent bearing surface during expansion





•


  Minimises localised stress to prevent piston collapse under high load





•


  Manufactured in Germany to precise engineering standards




Specifications

•


  Bore: 66.41 mm





•


  Actual piston size: 66.35 mm





•


  Stroke: 72.00 mm





•


  Display volume: 249 cm³





•


  Clearance: 0.06 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 38.00 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8090DB





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640





•


  Part No: 56-W774.B.WO




Vehicle Fitments

•


  KTM SX250 2000





•


  KTM SX250 2001





•


  KTM SX250 2002
