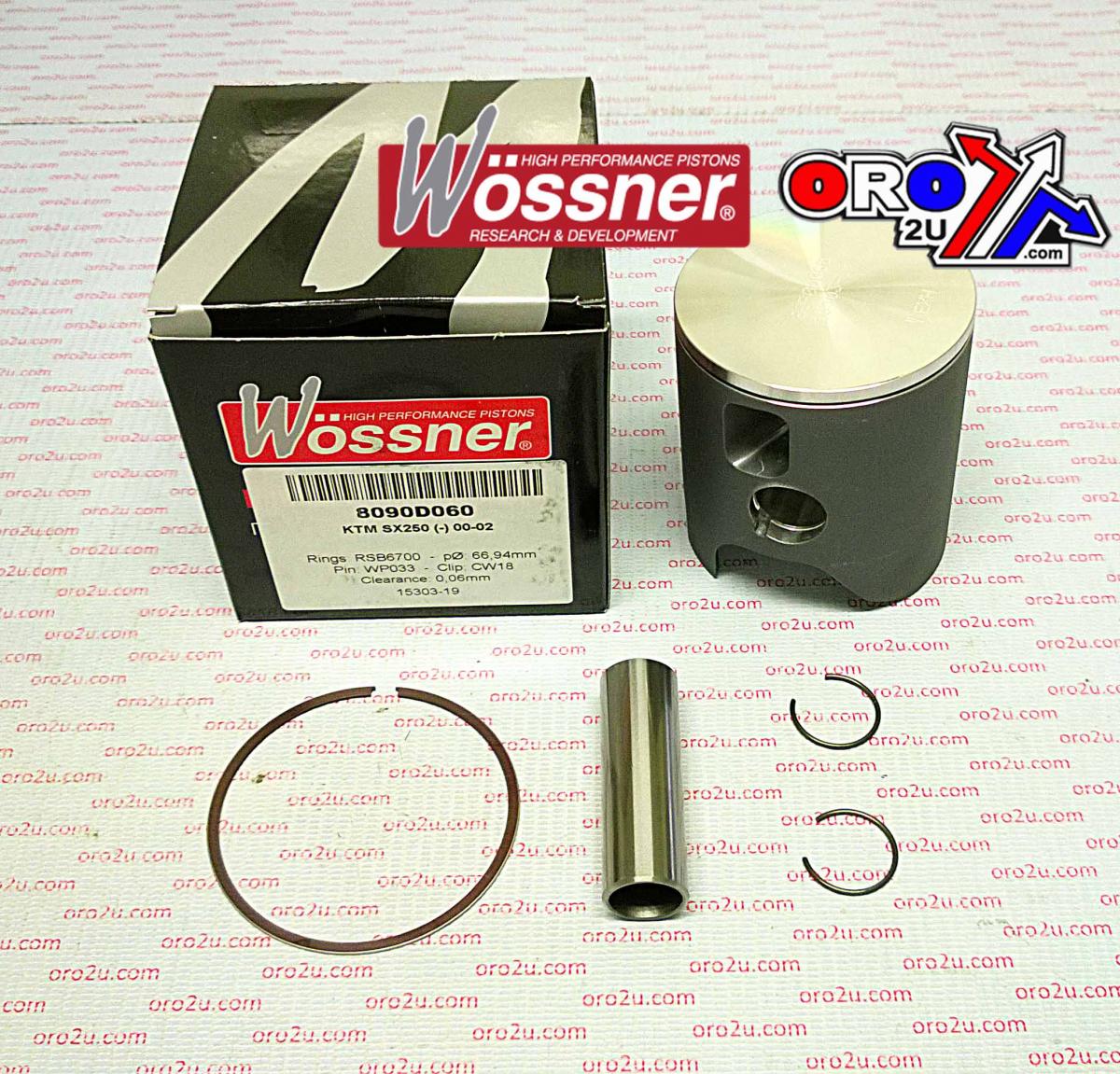

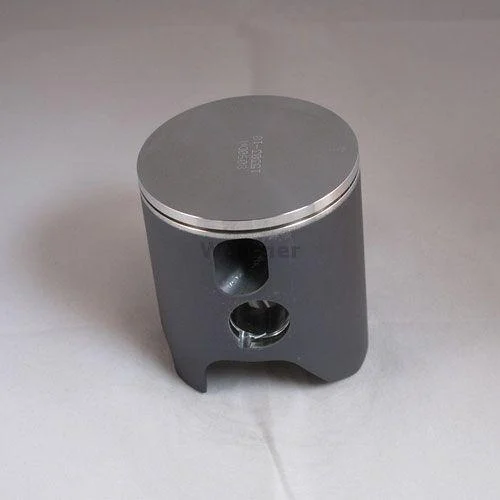

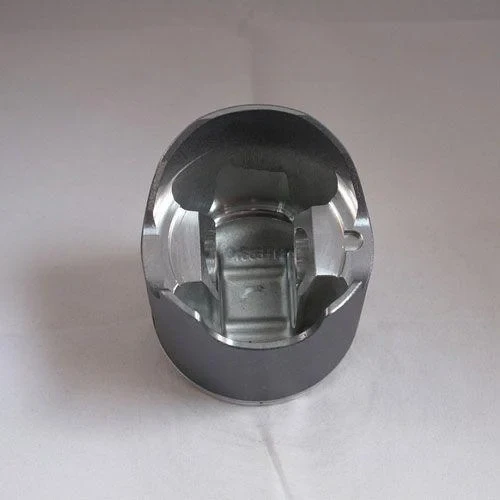

This Wossner piston kit with a 66.42mm bore (+0.02mm oversize) is engineered for KTM SX250 models from 2000 to 2002. Made from high-strength forged material, this piston is built to perform under extreme thermal and mechanical conditions common in high-performance 2-stroke engines.

Features

•


  Forged piston construction for enhanced durability and load resistance





•


  Engineered to facilitate efficient heat transfer from combustion chamber to cylinder wall





•


  Elliptical design ensures consistent bearing surface during thermal expansion





•


  Reduces localised pressure points to prevent piston collapse





•


  Precision manufactured in Germany




Specifications

•


  Bore: 66.42 mm





•


  Actual piston size: 66.36 mm





•


  Stroke: 72.00 mm





•


  Display volume: 249 cm³





•


  Clearance: 0.06 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 38.00 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8090DC





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640





•


  Part No: 56-W774.C.WO




Vehicle Fitments

•


  KTM SX250 2000





•


  KTM SX250 2001





•


  KTM SX250 2002
