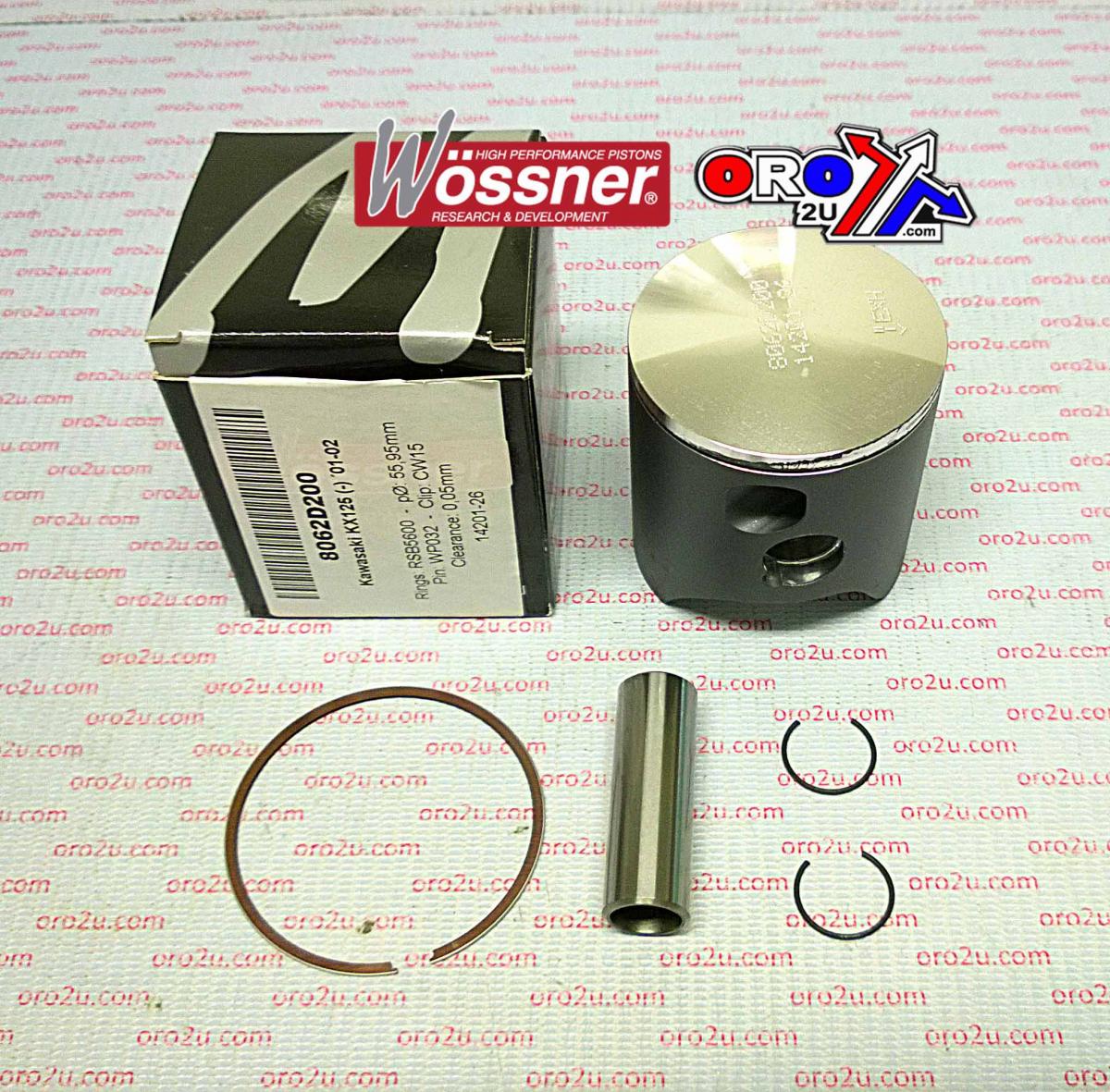

This Wossner piston kit with a 56.00mm bore and 55.95mm actual piston diameter is specifically engineered for Kawasaki KX125 models from 2001 to 2002. Designed with a +2.00mm oversize specification, it offers enhanced durability and thermal performance, making it ideal for rebuilds or performance upgrades in 2-stroke engines.

Features

•


  Forged piston construction offers superior strength and reliability





•


  Designed for optimal heat transfer from combustion chamber to cylinder walls





•


  Elliptical shape provides consistent bearing surface during thermal expansion





•


  Reduces localised pressure and evenly distributes thrust loads





•


  Prevents piston collapse under high-stress operation





•


  Manufactured in Germany




Specifications

•


  Bore: 56.00mm





•


  Piston Diameter: 55.95mm





•


  Display (cm³): 125





•


  Stroke (mm): 45.80





•


  Clearance (mm): 0.05





•


  Compression Height (mm): 26.00





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke




Vehicle Fitments

•


  Kawasaki KX125 2001–2002




Included Components

•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5600





•


  Rod: P2034





•


  Part Number: 56-W783+200.WO (Piston PN# 8062D200)
