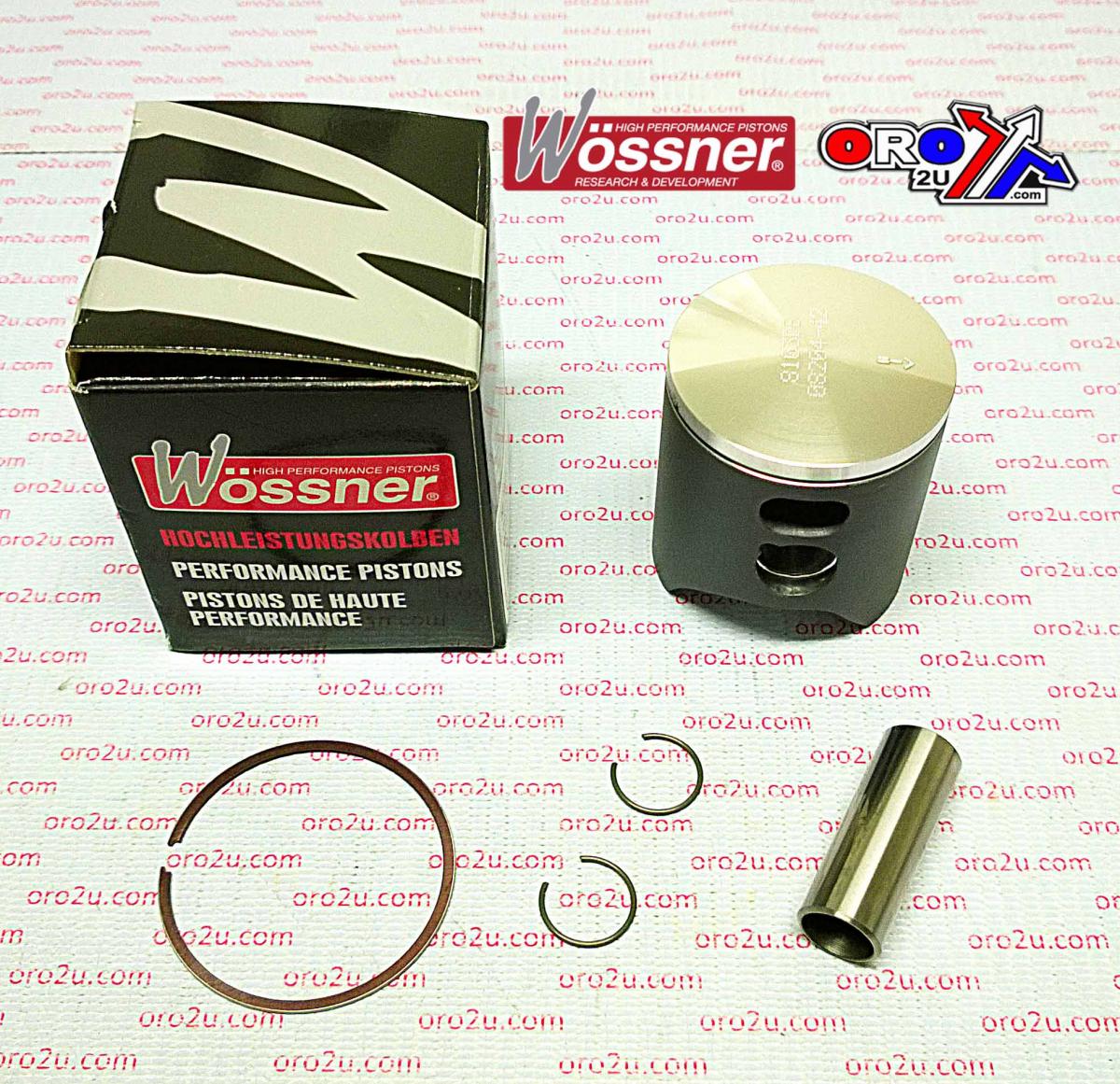

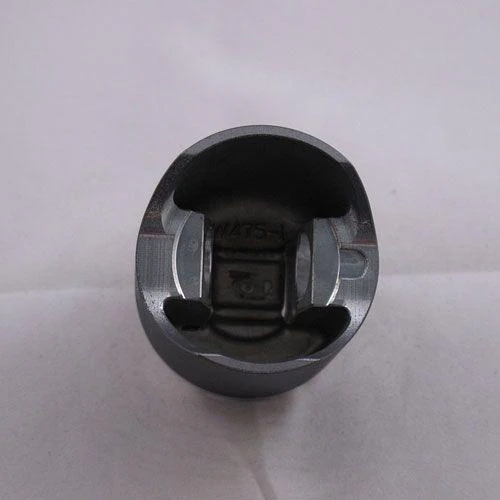

This Wossner forged piston kit with a 48.00mm bore is a standard size replacement designed for Suzuki RM85 models from 2002 to 2018. Built for high-performance two-stroke applications, this German-made piston provides outstanding strength, thermal efficiency, and structural reliability. Its elliptical design ensures even load distribution, reducing the risk of piston collapse during high-stress operation.

Features

•


  Forged construction offers superior durability and mechanical strength





•


  Engineered for optimal combustion heat transfer to cylinder walls





•


  Elliptical profile promotes uniform load distribution and minimises localised pressure





•


  Made in Germany




Specifications

•


  Bore: 48.00mm





•


  Actual Bore: 47.95mm





•


  Engine Displacement: 84 cm³





•


  Stroke: 46.80mm





•


  Clearance: 0.05mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 27.00mm





•


  Lock Part Number: CW14





•


  Pin Part Number: WP058





•


  Ring Set Part Number: RSB4800





•


  Rod Part Number: P2007




Cross-Reference OEM Part Numbers

•


  12110-03B20-0F0





•


  09104829





•


  806M04800




Vehicle Fitments

•


  2002 Suzuki RM85 2002 - 2018
