Piston Kit 90.02mm Bore 89.96 Wossner 8565DC (+0.02)

KAWASAKI KLX 400 2003 - 2006

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

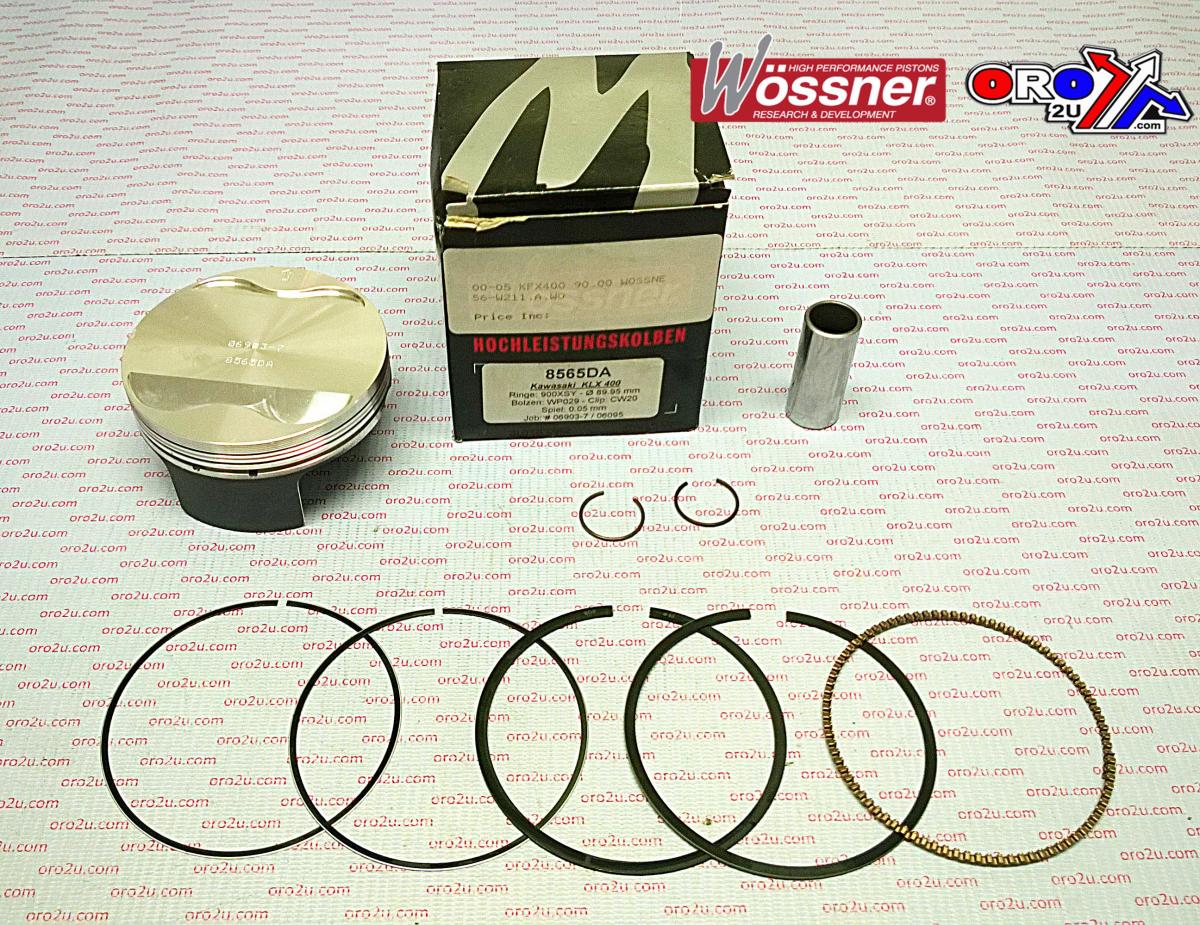

• Wossner Piston Kawasaki KLX400 90.02 mm Bore (PN#): 8565DC


• Lock P/N: CW20


• Pin P/N: WP029


• Ring Set P/N: 900XSY


• Rod P/N: P4009

Specifications:

• Display (cm3): 398


• Hub Stroke (mm): 62.60


• Clearance (mm): 0.06


• Wossner Compression Ratio: OEM


• OEM Compression Ratio: 12.20:1


• Dome Volume (cm3): -2.00


• Compression Height (mm): 25.30


• Theoretical Weight (G): 250.00
