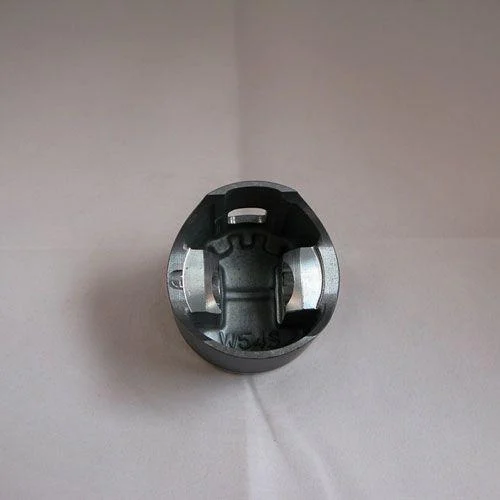

This Wossner forged piston kit with a 54.00mm bore is a standard size replacement for the 2003 Kawasaki KX125. Designed for durability and optimal performance in two-stroke engines, this German-made piston ensures effective heat dissipation and consistent load distribution under high thermal and mechanical stress, making it suitable for racing and performance applications.

Features

•


  Forged construction offers high strength and long-term reliability





•


  Designed to maximise combustion chamber heat transfer to cylinder walls





•


  Elliptical profile distributes thrust loads evenly, preventing localised pressure and piston collapse





•


  Made in Germany




Specifications

•


  Bore: 54.00mm





•


  Actual Bore: 53.95mm





•


  Engine Displacement: 125 cm³





•


  Stroke: 54.50mm





•


  Clearance: 0.05mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 29.30mm





•


  Lock Part Number: CW15





•


  Pin Part Number: WP032





•


  Ring Set Part Number: RSB5400





•


  Rod Part Number: P2010




Cross-Reference OEM Part Numbers

•


  13001-1634





•


  822M05400




Vehicle Fitments

•


  Kawasaki KX125 2003
