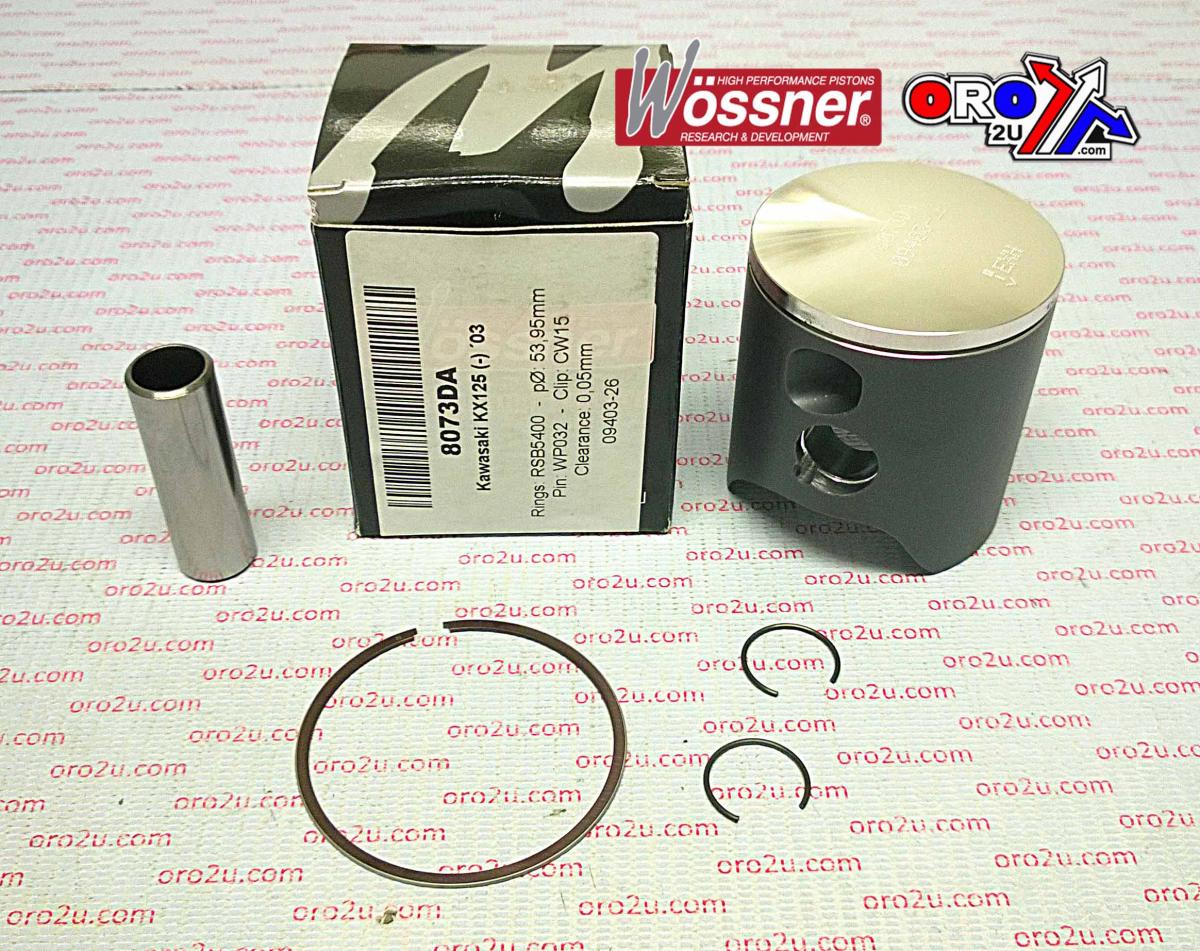

This Wossner forged piston kit is designed for the Kawasaki KX125 (2003), featuring a 54.02mm bore and a 53.97mm piston diameter. Precision-engineered for high performance and durability, this piston provides efficient combustion heat transfer and consistent bearing surface contact during thermal expansion.

Features

•


  Forged piston construction ensures high strength and durability





•


  Optimised design enhances heat transfer from combustion chamber to cylinder walls





•


  Elliptical shape delivers uniform bearing surface under expansion conditions





•


  Teflon-coated skirt enhances conformity to bore and reduces friction




Specifications

•


  Bore Size: 54.02 mm





•


  Piston Diameter: 53.97 mm





•


  Compression Height: 29.30 mm





•


  Stroke: 54.50 mm





•


  Clearance: 0.05 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Displacement: 125 cm³




Cross-Reference OEM Part Numbers

•


  Piston Kit: Wossner 8073DA





•


  Alternate Piston Kit Reference: 56-W822.C.WO / 8073DC





•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5400





•


  Rod: P2010




Vehicle Fitments

•


  Kawasaki KX125 2003
