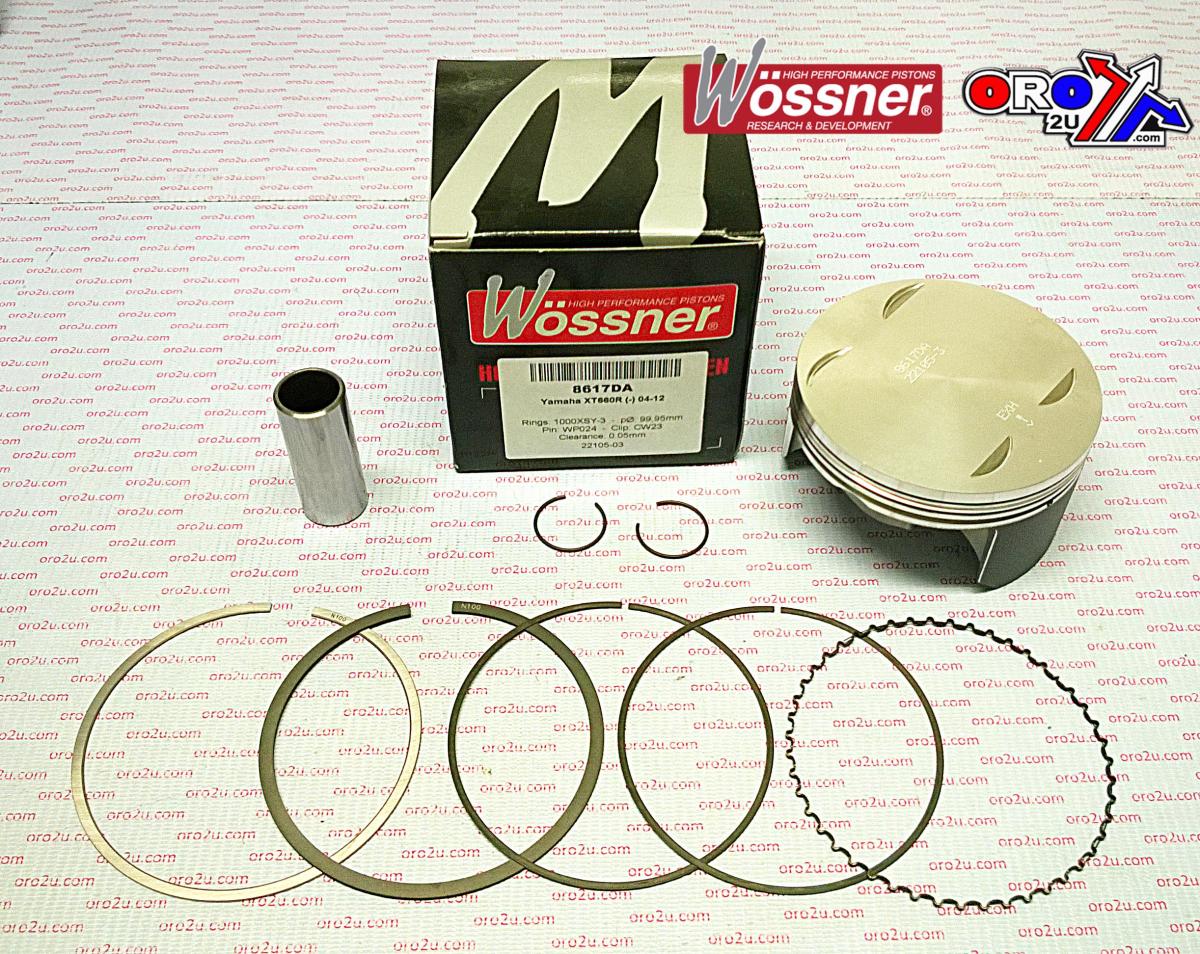

PISTON KIT 04-17 XT660R 100 A, FORGED WOSSNER 8617DA
Piston kit 100mm Bore 99.95 Wossner 8617DA (STD)
YAMAHA
XT660R 2004-2017
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W203.A.WO (oro2u.com)
Wossner Piston Yamaha XT660R (PN# 8617DA)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3
Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)
Cross reference numbers ONLY.
5VK1163100, 5VK1160300, 5VK1163300, 5VK1163300,
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PISTON KIT 04-17 XT660R 100 A, FORGED WOSSNER 8617DA
PISTON KIT 04-17 XT660R 100 A, FORGED WOSSNER 8617DA
Piston kit 100mm Bore 99.95 Wossner 8617DA (STD)
YAMAHA
XT660R 2004-2017
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W203.A.WO (oro2u.com)
Wossner Piston Yamaha XT660R (PN# 8617DA)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3
Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)
Cross reference numbers ONLY.
5VK1163100, 5VK1160300, 5VK1163300, 5VK1163300,
Original: $404.10
-65%$404.10
$141.44Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Piston kit 100mm Bore 99.95 Wossner 8617DA (STD)
YAMAHA
XT660R 2004-2017
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W203.A.WO (oro2u.com)
Wossner Piston Yamaha XT660R (PN# 8617DA)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3
Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)
Cross reference numbers ONLY.
5VK1163100, 5VK1160300, 5VK1163300, 5VK1163300,
