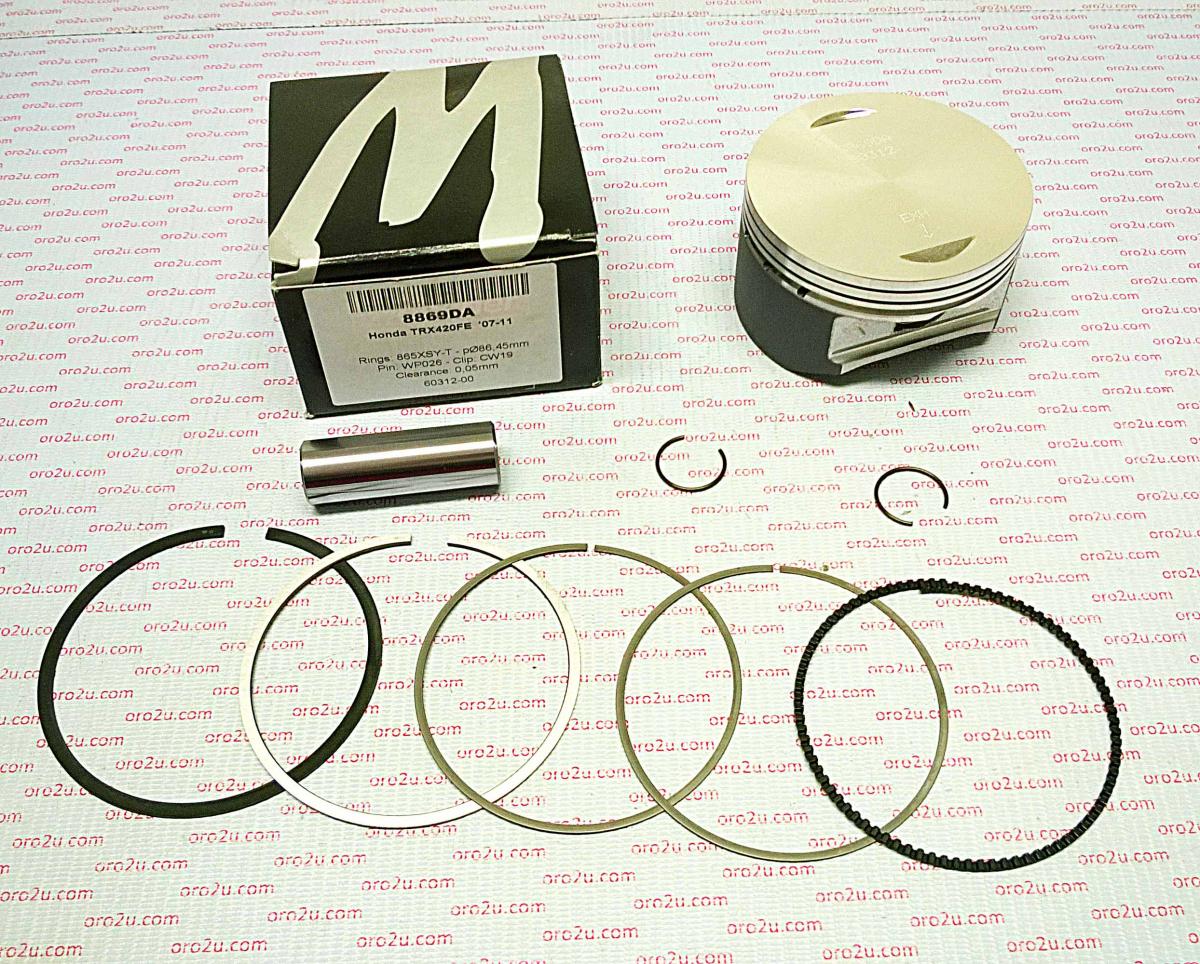

• Piston Kit: Wossner 8869DA, with an 86.50mm bore (STD)


• Application: Honda TRX420FA/FE/FM/TE/TM/FPA/FPE/FPM Rancher, spanning the years 2007 to 2020


• Features:



  • Wossner forged pistons known for superior strength and design


  • Engineered for efficient combustion chamber heat transfer to cylinder walls


  • Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse






• Manufacturing: Made in Germany


• Additional Parts:



  • C-Clip: CW19


  • Pin: WP026


  • Rings: 865XSY


  • Size: 86.45mm






• Specifications:



  • Displacement: 420 cm³


  • Hub Stroke: 72.00mm


  • Clearance: 0.06mm


  • Compression Ratio: Wossner (not specified), OEM (not specified)


  • Dome Volume: Not provided


  • Compression Height: 38.00mm


  • Theoretical Weight: Not provided





Additionally, here are some cross-reference numbers:

• 13101-HP5-600


• 40050M08650


• 01.1487.000
