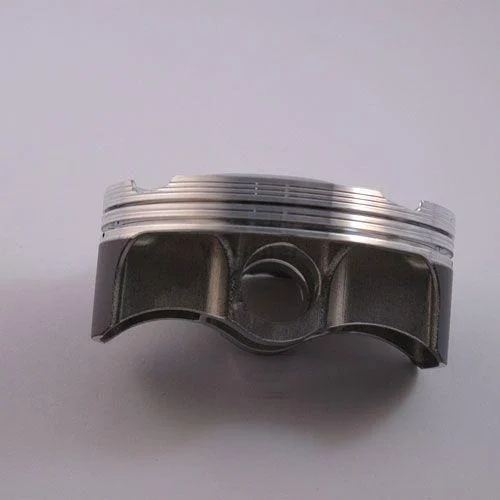

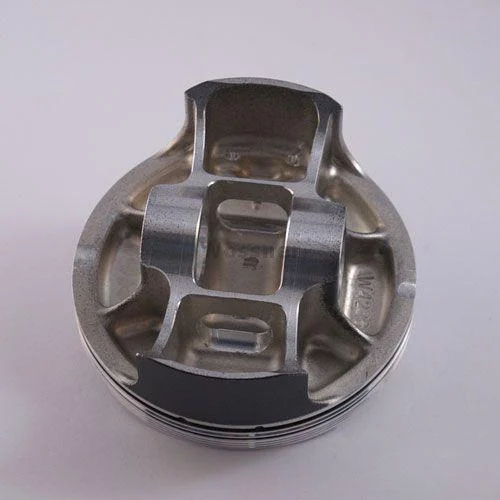

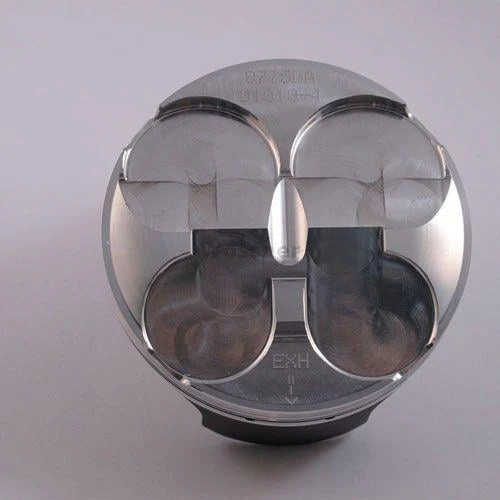

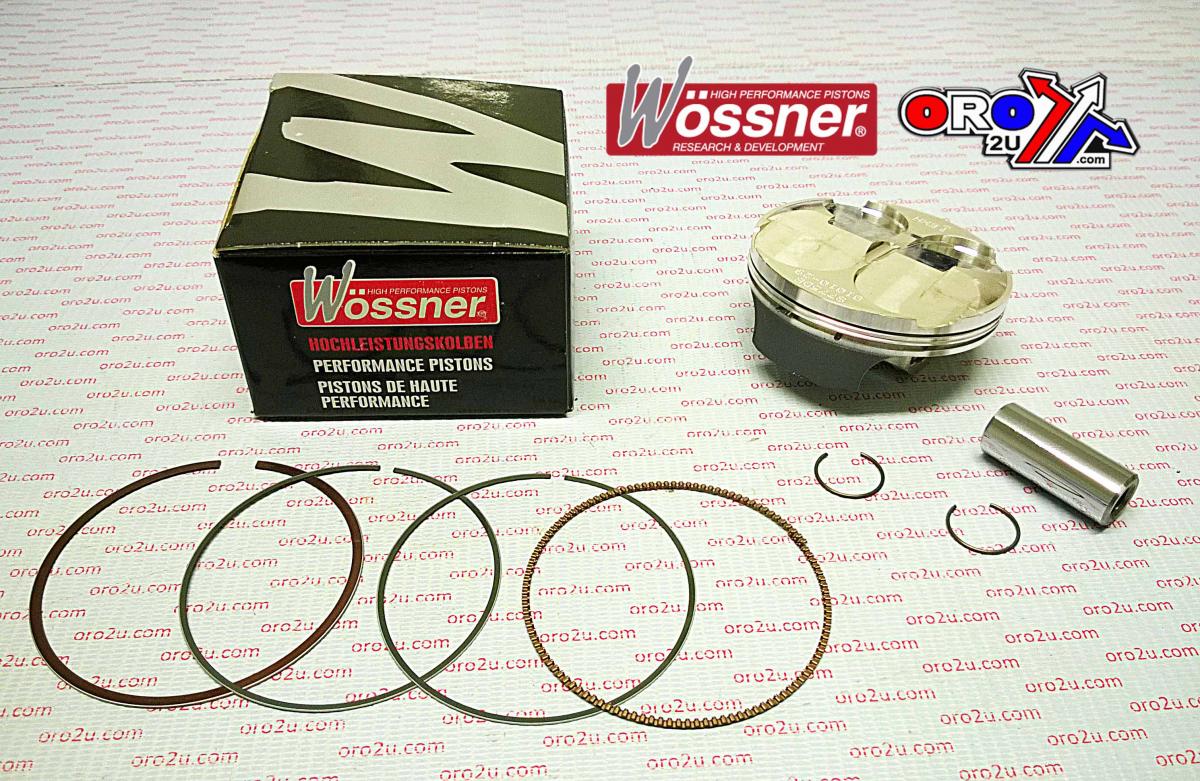

This Wossner forged piston kit features a 76.82mm bore size (76.78mm actual), offering a +0.02mm oversize fitment for Honda CRF250R models from 2010 to 2013. Built with a two-ring configuration and made in Germany, this piston delivers high thermal efficiency and structural integrity. The elliptical design ensures even thrust load distribution, reducing localised stress and enhancing performance.

Features

•


  Forged construction with two-ring setup for strength and reliability





•


  Elliptical design maintains even pressure distribution under heat





•


  Optimised for superior heat transfer from combustion chamber to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 76.82mm (actual 76.78mm)





•


  Displacement: 249 cm³





•


  Stroke: 53.80 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): 14.20:1





•


  Compression Ratio (OEM): 13.20:1





•


  Dome Volume: +0.10 cm³





•


  Compression Height: 29.00 mm





•


  Theoretical Weight: 19.50 g





•


  Lock Part Number: CW16





•


  Pin Part Number: WP070





•


  Ring Set Part Number: 768XAS




Cross-Reference OEM Part Numbers

•


  56-W950.C.WO




Vehicle Fitments

•


  2010 Honda CRF250R





•


  2011 Honda CRF250R





•


  2012 Honda CRF250R





•


  2013 Honda CRF250R
