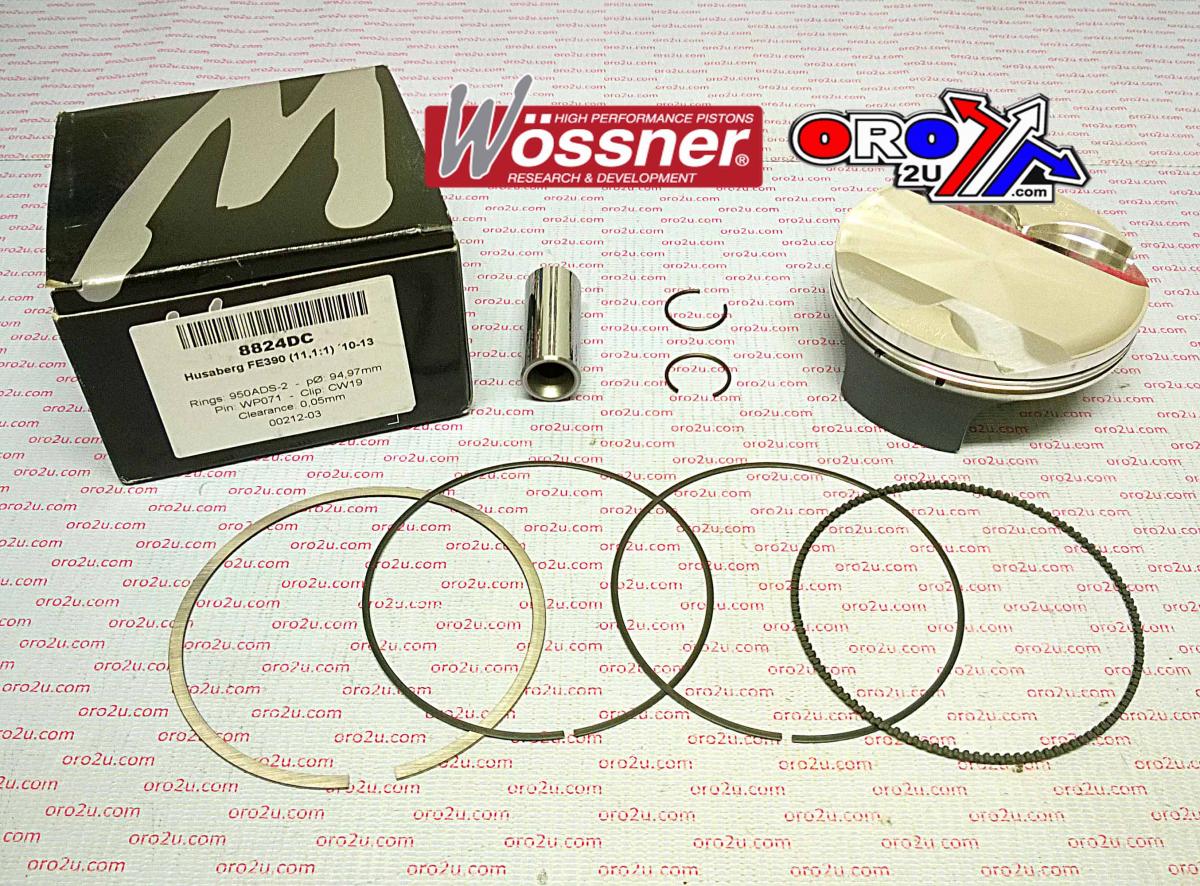

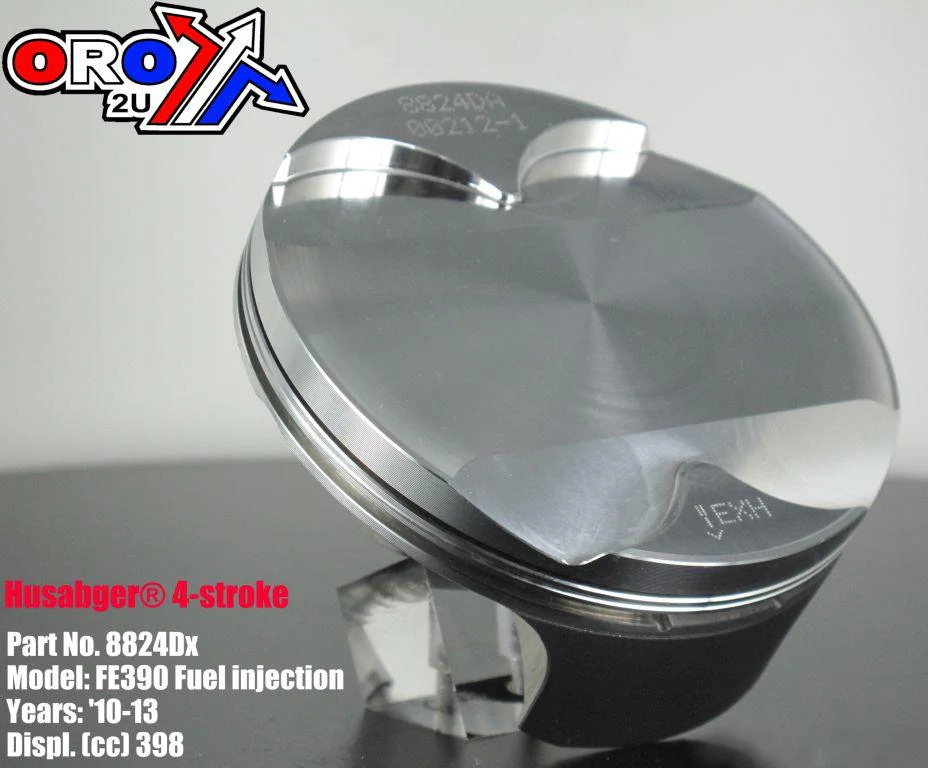

Wossner forged piston kit 8824DC is a +0.02mm oversized piston with a 95.02mm bore (measured at 94.97mm), specifically designed for Husaberg FE390 fuel-injected models from 2010 to 2012. Manufactured in Germany, this piston is built for strength, thermal stability, and precise fitment in high-performance four-stroke applications.

Features

•


  Forged construction delivers exceptional durability and mechanical strength





•


  Elliptical design ensures uniform load distribution under heat expansion





•


  Enhanced heat transfer from the combustion chamber to the cylinder walls





•


  Reduces localised stress to prevent piston collapse





•


  Made in Germany




Specifications

•


  Bore: 95.02mm (Measured: 94.97mm)





•


  Display Volume: 398 cm³





•


  Stroke: 55.50mm





•


  Clearance: 0.05mm





•


  Compression Height: 23.20mm





•


  Wossner Compression Ratio: OEM





•


  OEM Compression Ratio: 11.10:1





•


  Dome Volume: -1.10 cm³





•


  Part No.: 56-W918.C.WO (Wossner 8824DC)





•


  Ring Set: 950ADS-2





•


  Lock P/N: CW19





•


  Pin P/N: WP071




Vehicle Fitments

•


  2010 Husaberg FE390





•


  2011 Husaberg FE390





•


  2012 Husaberg FE390
