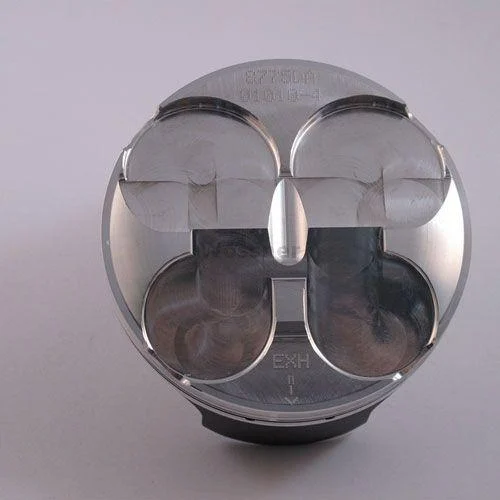

This Wossner forged piston kit features a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize specification for Kawasaki KX250F models from 2011 to 2014. Built with a two-ring design and precision-manufactured in Germany, the piston provides reliable performance under thermal and mechanical stress. Its elliptical shape promotes balanced thrust force distribution and efficient heat transfer.

Features

•


  Forged piston with two-ring configuration for enhanced strength and durability





•


  Elliptical design ensures uniform bearing surface during heat expansion





•


  Engineered for effective combustion heat dissipation





•


  Manufactured in Germany




Specifications

•


  Bore Size: 77.02mm (actual 76.98mm)





•


  Displacement: 249 cm³





•


  Stroke: 53.60 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): OEM





•


  Compression Ratio (OEM): 13.50:1





•


  Dome Volume: -2.80 cm³





•


  Compression Height: 19.60 mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP070





•


  Ring Set Part Number: 770XAS-2




Cross-Reference OEM Part Numbers

•


  56-W952.C.WO




Vehicle Fitments

•


  2011 Kawasaki KX250F





•


  2012 Kawasaki KX250F





•


  2013 Kawasaki KX250F





•


  2014 Kawasaki KX250F
