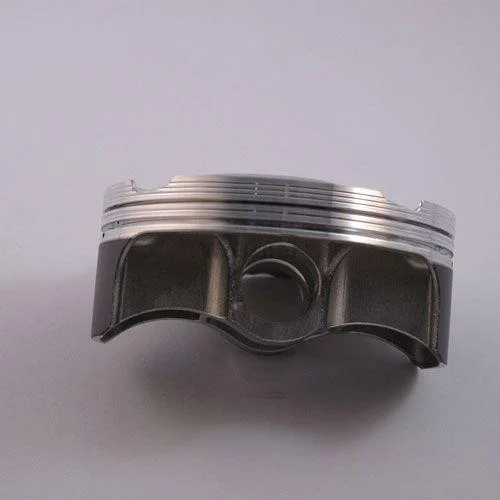

This Wossner forged high-compression piston kit features a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize fitment for Kawasaki KX250F models from 2011 to 2014. Engineered in Germany with a two-ring design and elliptical profile, it ensures consistent load distribution and durability. The piston includes a hard Teflon skirt coating for optimal cylinder conformity and improved wear resistance.

Features

•


  Forged high-compression piston with two-ring configuration





•


  Elliptical design for uniform pressure distribution during thermal expansion





•


  Hard Teflon skirt coating enhances fit and reduces friction





•


  Engineered for effective combustion heat transfer





•


  Manufactured in Germany




Specifications

•


  Bore Size: 77.02mm (actual 76.98mm)





•


  Displacement: 250 cm³





•


  Stroke: 53.60 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): 14.20:1





•


  Compression Ratio (OEM): 13.50:1





•


  Dome Volume: -1.70 cm³





•


  Compression Height: 19.60 mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP070





•


  Ring Set Part Number: 770XAS-S




Cross-Reference OEM Part Numbers

•


  56-W952.C.WO.HC




Vehicle Fitments

•


  2011 Kawasaki KX250F





•


  2012 Kawasaki KX250F





•


  2013 Kawasaki KX250F





•


  2014 Kawasaki KX250F
