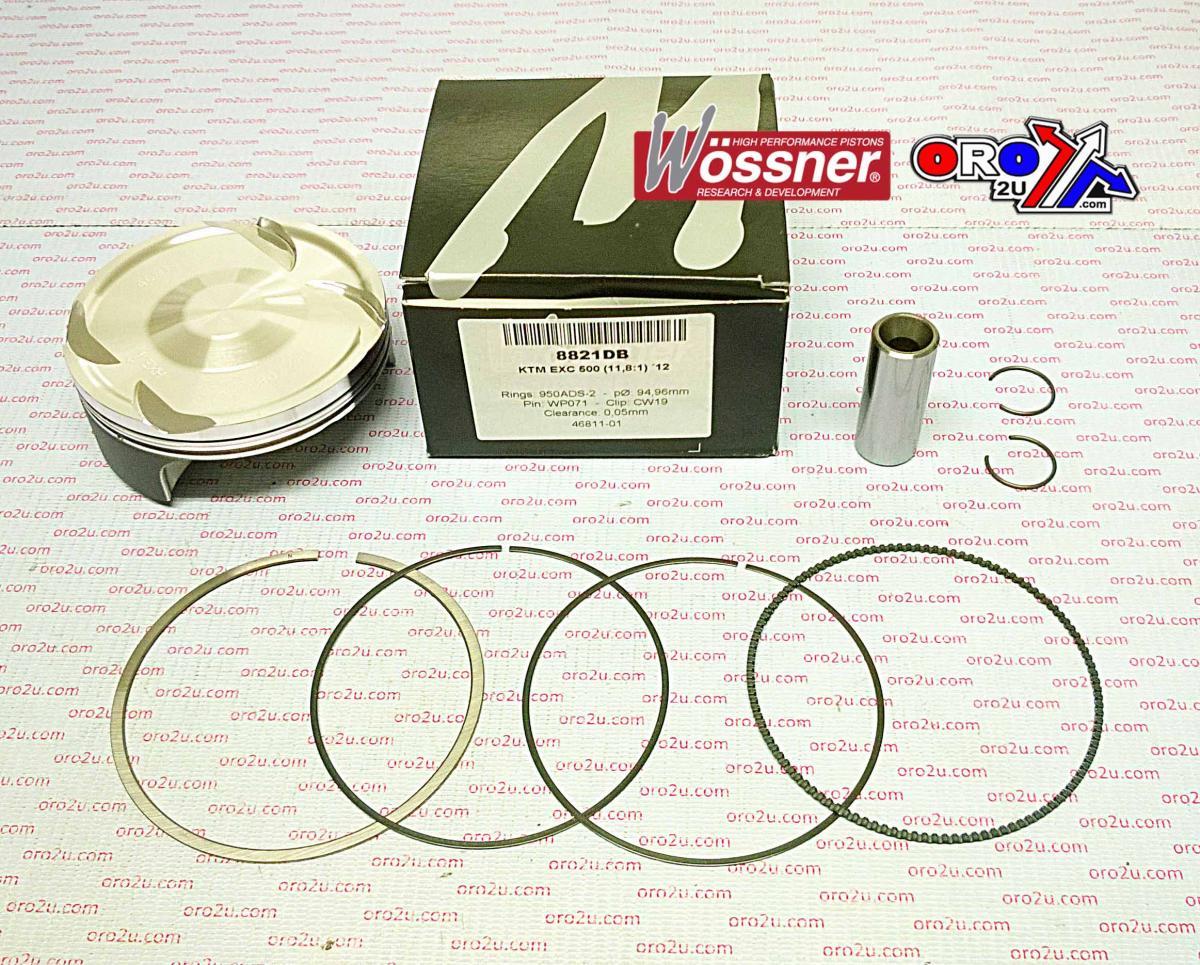

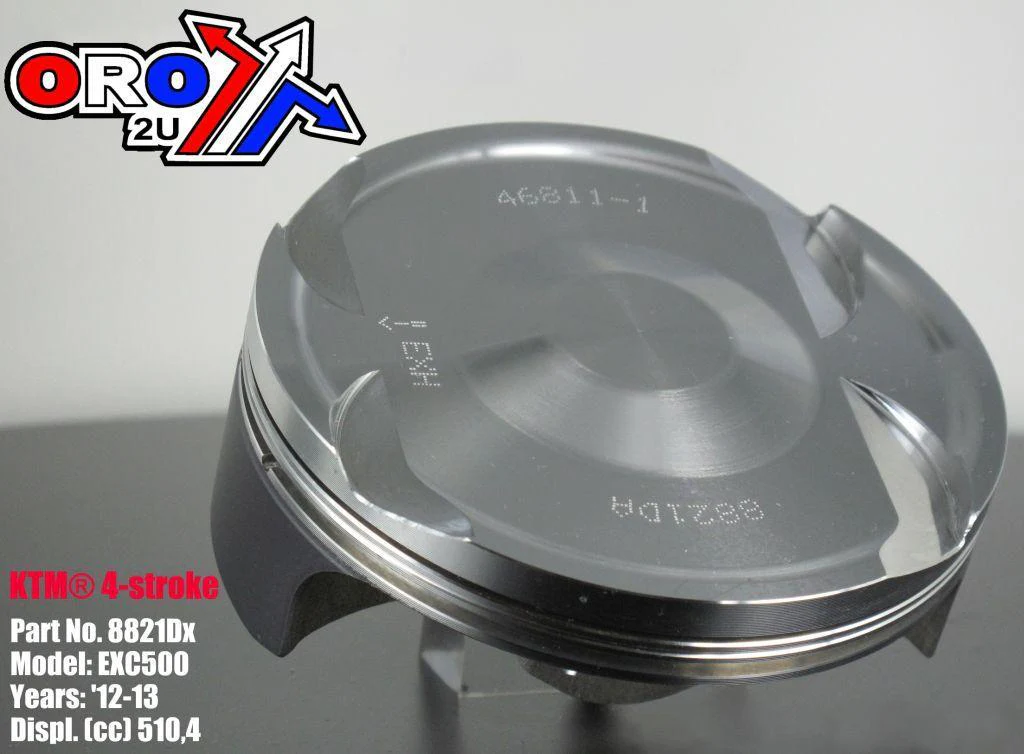

This Wossner forged piston kit is a +0.02mm oversize replacement for KTM EXC500 four-stroke engines from 2012 onward. Engineered for strength and precision, it ensures consistent performance under demanding conditions, with excellent thermal transfer and structural stability.

Features

•


  Forged piston construction delivers exceptional strength and reliability





•


  Elliptical design provides even bearing surface during thermal expansion





•


  Promotes efficient heat transfer from combustion chamber to cylinder walls





•


  Designed to evenly distribute thrust loads and prevent piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 95.02mm





•


  Actual Piston Size: 94.97mm





•


  Display Displacement: 510 cm³





•


  Stroke: 72.00mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: OEM





•


  OEM Compression Ratio: 11.80:1





•


  Dome Volume: -6.80 cm³





•


  Compression Height: 22.80mm





•


  Circlip Part Number: CW19





•


  Pin Part Number: WP071





•


  Ring Set Part Number: 950ADS-2




Cross-Reference OEM Part Numbers

•


  Part No: 56-W925.C.WO




Vehicle Fitments

•


  KTM EXC500 (2012– )
