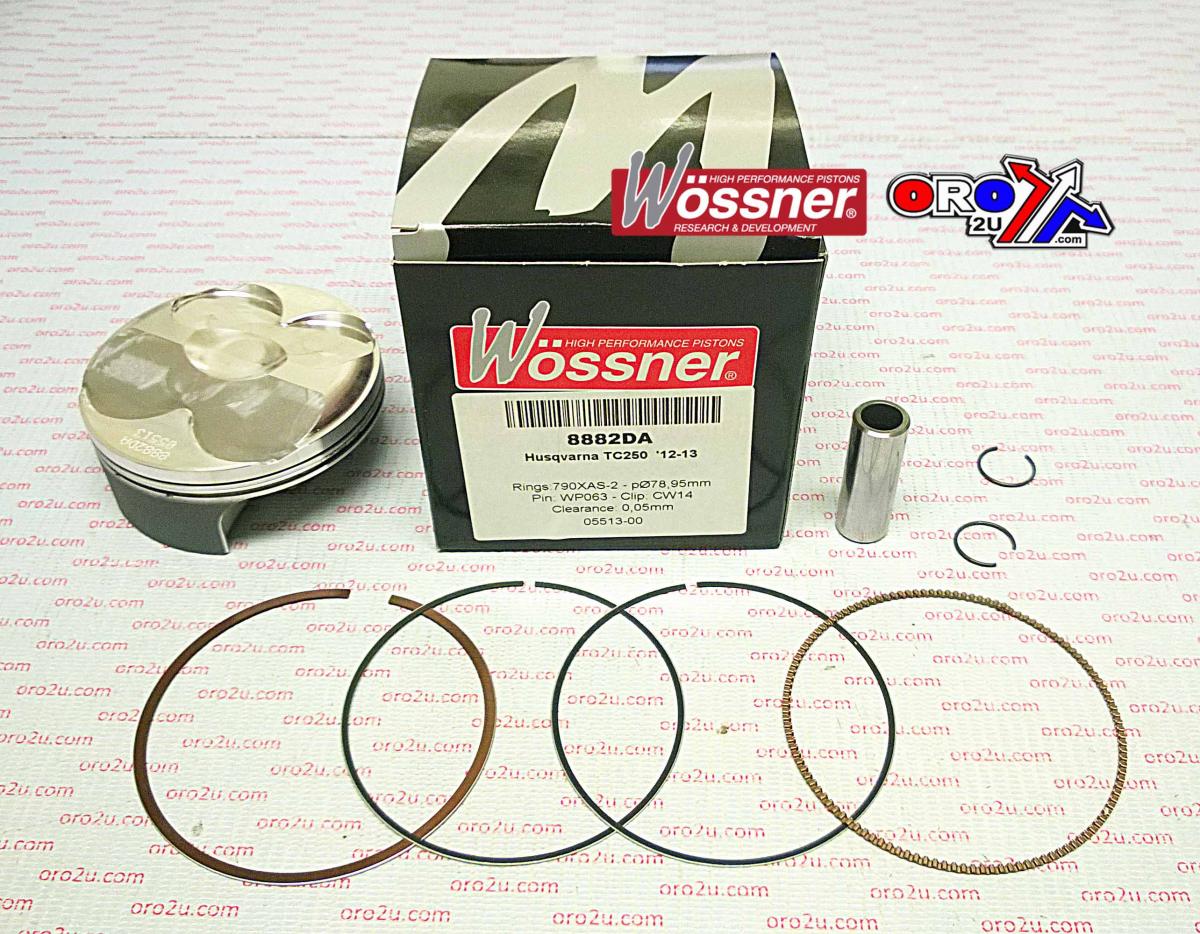

This Wossner forged piston kit features a 79mm bore size (78.95mm actual) and is a standard fitment for Husqvarna TC250 Pro Series models from 2012 to 2013. Manufactured in Germany, the piston is designed for high-compression performance and includes an elliptical profile to distribute loads evenly during heat expansion. It delivers enhanced combustion efficiency and structural reliability under demanding conditions.

Features

•


  Forged high-compression piston for superior strength and performance





•


  Elliptical design promotes uniform thrust load distribution





•


  Engineered for optimal heat transfer and combustion efficiency





•


  Manufactured in Germany




Specifications

•


  Bore Size: 79mm (actual 78.95mm)





•


  Displacement: 249 cm³





•


  Stroke: 53.60 mm





•


  Clearance: 0.05 mm





•


  Compression Ratio (Wossner): 14.00:1





•


  Compression Ratio (OEM): 13.60:1





•


  Dome Volume: +4.20 cm³





•


  Compression Height: 18.00 mm





•


  Lock Part Number: CW14





•


  Pin Part Number: WP063





•


  Ring Set Part Number: 790XAS-2




Cross-Reference OEM Part Numbers

•


  56-W964.A.WO




Vehicle Fitments

•


  Husqvarna TC250 (2012–2013)





•


  Husqvarna TE250 (2012–2013)
