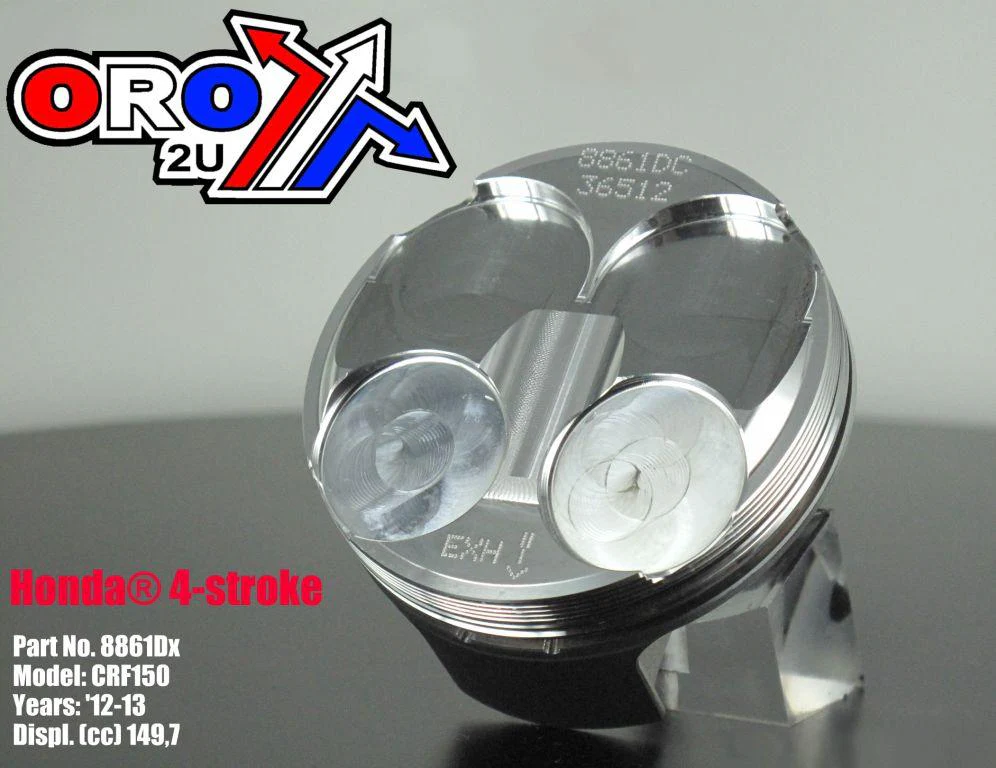

Wossner forged piston kit 8861DC is a +0.02mm oversized piston with a 66.02mm bore (measured at 65.97mm), designed specifically for Honda CRF150R models from 2012 to 2018. Featuring high-strength forged construction and a Teflon-coated skirt, this piston provides superior durability, thermal stability, and a precision fit ideal for competitive four-stroke applications.

Features

•


  Forged construction for maximum durability and reliability





•


  Elliptical design offers consistent load distribution under heat expansion





•


  Excellent heat transfer from the combustion chamber to cylinder walls





•


  Hard Teflon skirt coating for precise fit and bore conformity





•


  Reduces localised pressure to protect against piston collapse





•


  Made in Germany




Specifications

•


  Bore: 66.02mm (Measured: 65.97mm)





•


  Display Volume: 149 cm³





•


  Stroke: 43.80mm





•


  Clearance: 0.05mm





•


  Compression Height: 20.60mm





•


  Wossner Compression Ratio: OEM





•


  OEM Compression Ratio: 11.70:1





•


  Dome Volume: -1.40 cm³





•


  Part No.: 56-W914.C.WO (Wossner 8861DC)





•


  Ring Set: 660XKS





•


  Lock P/N: CW14





•


  Pin P/N: WP058




Vehicle Fitments

•


  2012 Honda CRF150R





•


  2013 Honda CRF150R





•


  2014 Honda CRF150R





•


  2015 Honda CRF150R





•


  2016 Honda CRF150R





•


  2017 Honda CRF150R





•


  2018 Honda CRF150R
