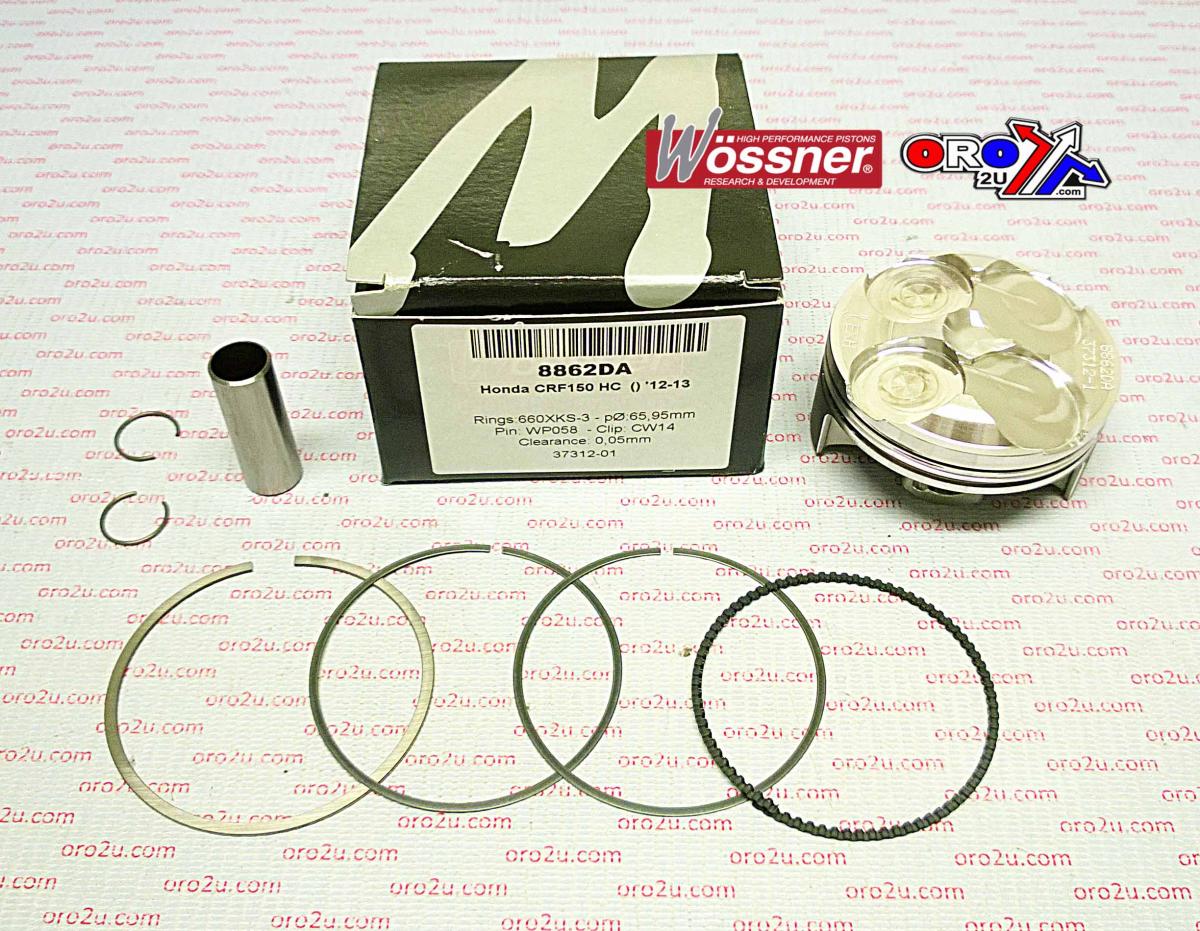

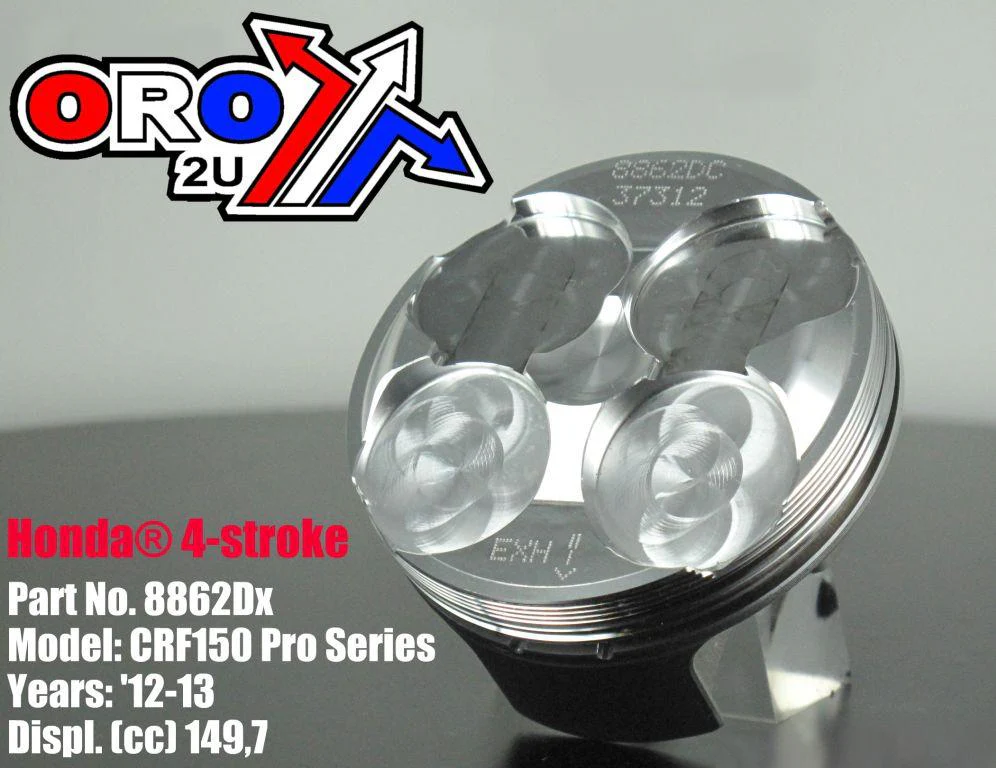

This Wossner forged piston kit is engineered for high-performance applications and fits Honda CRF150R Pro Series models from 2012 to 2018. With a precise 66.02mm bore size and a high-strength forged construction, this piston is designed for durability and efficient heat transfer under demanding conditions.

Features

•


  Forged piston construction for enhanced strength and durability





•


  Elliptical design ensures uniform bearing surface under heat expansion





•


  Optimised for superior heat dissipation from combustion chamber to cylinder walls





•


  Designed to prevent localised pressure and piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 66.02mm





•


  Actual Piston Size: 65.97mm





•


  Display Displacement: 149 cm³





•


  Stroke: 43.80mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: 12.20:1





•


  OEM Compression Ratio: 111.70:1





•


  Dome Volume: -0.80 cm³





•


  Compression Height: 20.60mm





•


  Lock Part Number: CW14





•


  Pin Part Number: WP058





•


  Ring Set Part Number: 660XKS




Cross-Reference OEM Part Numbers

•


  Part No: 56-W921.C.WO




Vehicle Fitments

•


  Honda CRF150R (2012–2018), Pro Series
