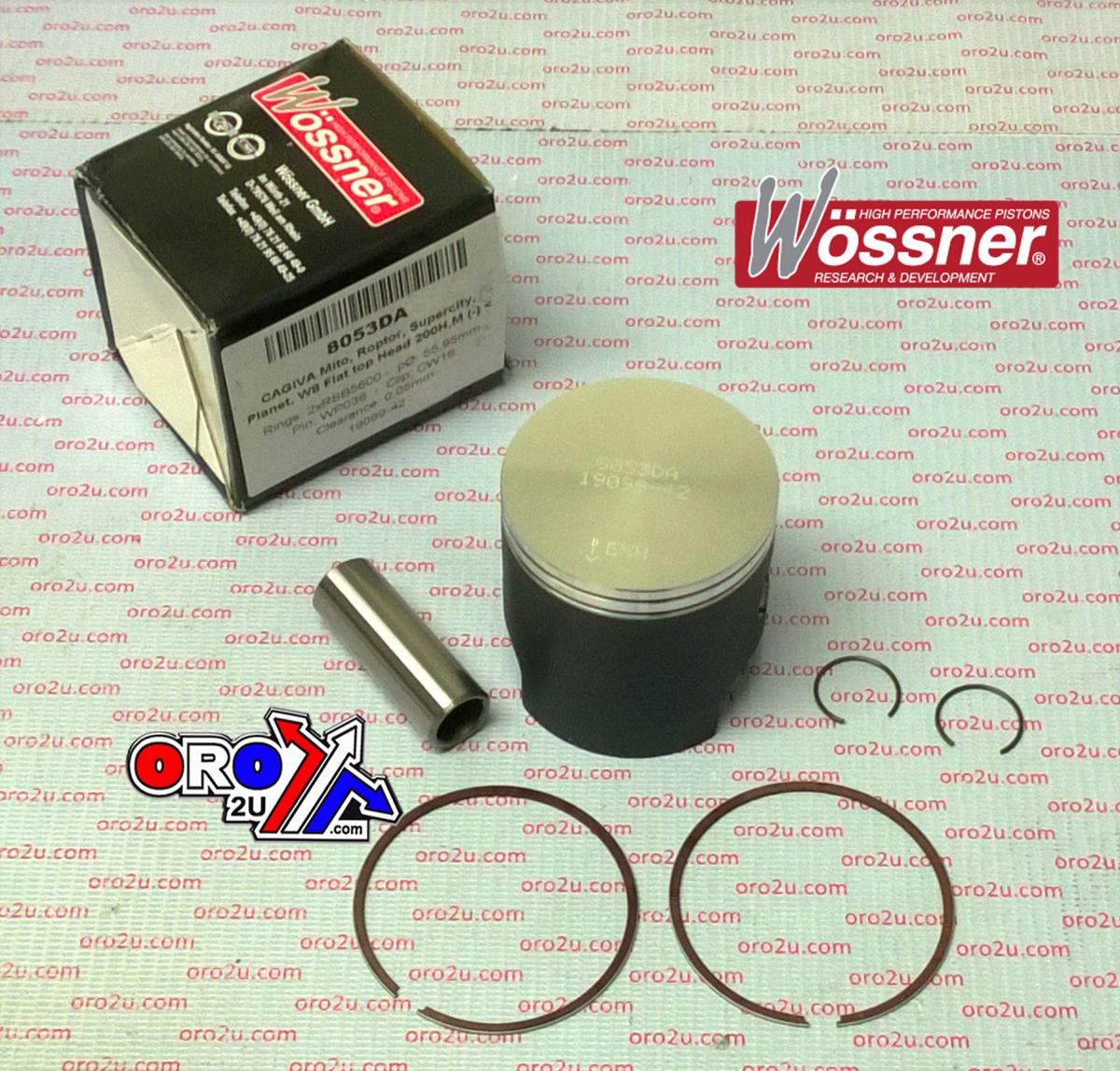

This Wossner forged piston kit is a standard-size replacement designed for Cagiva 125cc two-stroke models, including Mito, Raptor, Supercity, Planet, W8, and Head 200H,M from 2000 to 2012. Built to deliver durability and performance, it is ideal for high-revving small-capacity engines.

Features

•


  Forged piston construction ensures high strength and reliability





•


  Elliptical design provides a consistent bearing surface during heat expansion





•


  Promotes efficient heat transfer from combustion chamber to cylinder walls





•


  Even distribution of thrust loads minimises piston collapse risk





•


  Manufactured in Germany




Specifications

•


  Bore Size: 56.00mm





•


  Display Displacement: 124 cm³





•


  Stroke: 50.60mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Dome Volume: Flat





•


  Compression Height: 25.00mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP036





•


  Ring Set Part Number: RDB5600




Cross-Reference OEM Part Numbers

•


  Part No: 56-W940+00A.WO




Vehicle Fitments

•


  Cagiva 125 Mito (2000–2012)





•


  Cagiva 125 Raptor (2000–2012)





•


  Cagiva 125 Supercity (2000–2012)





•


  Cagiva 125 Planet (2000–2012)





•


  Cagiva 125 W8 (2000–2012)





•


  Cagiva Head 200H,M (2000–2012)
