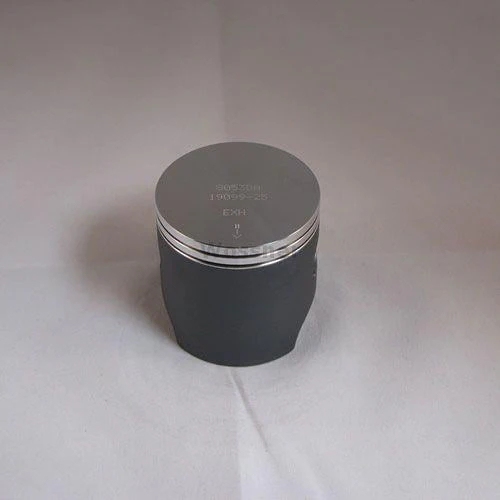

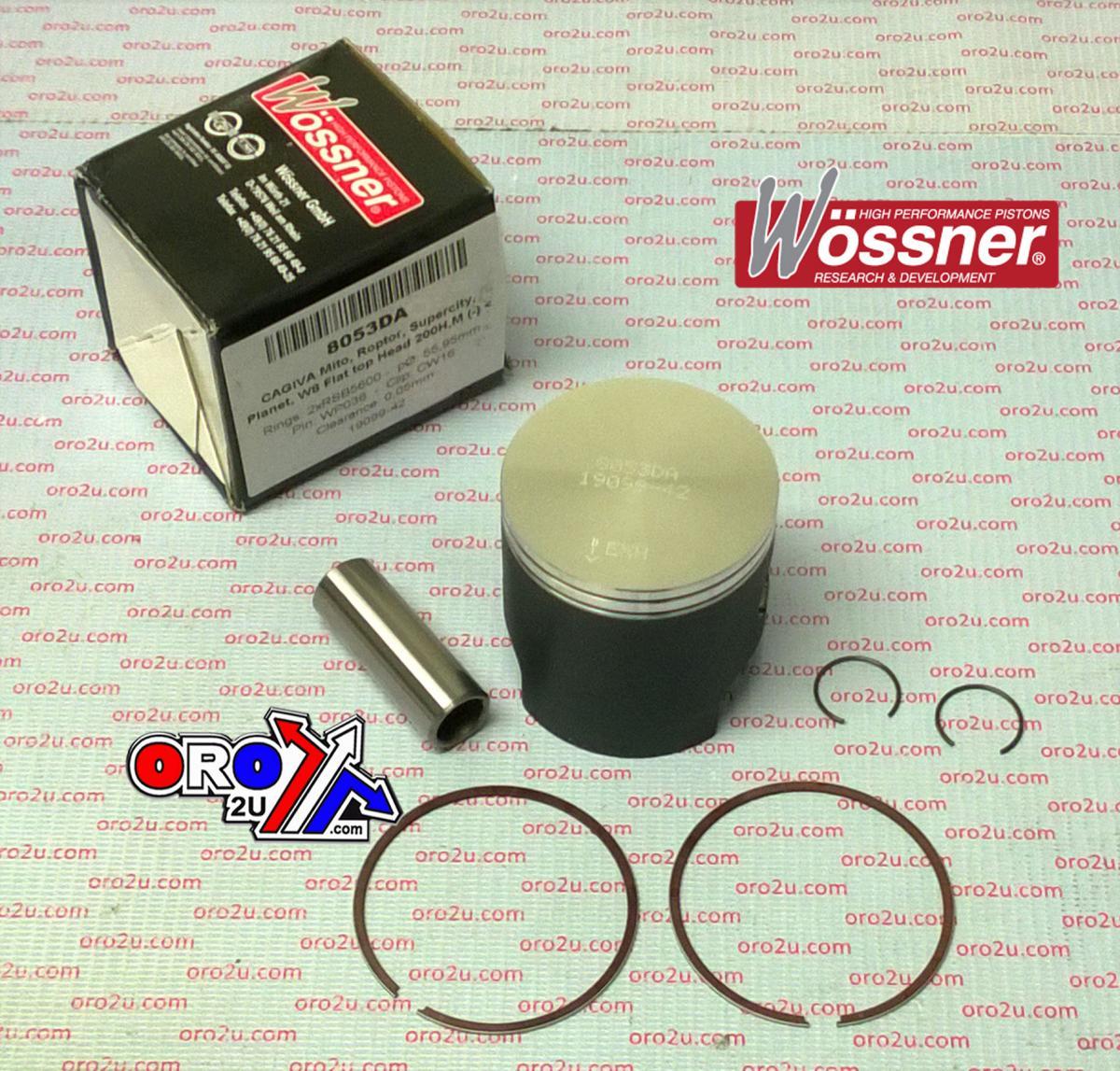

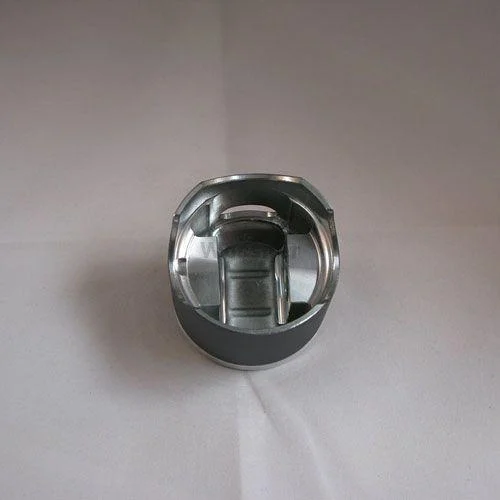

This Wossner forged piston kit is a +0.01mm oversize replacement for Cagiva 125cc two-stroke engines, suitable for Mito, Raptor, Supercity, Planet, W8, and Head 200H,M models from 1993 to 2012. It offers exceptional durability and fitment for engines requiring a minor bore increase.

Features

•


  Forged piston design for maximum strength and resistance to wear





•


  Elliptical profile ensures uniform bearing surface during thermal expansion





•


  Optimised for efficient combustion heat transfer to cylinder walls





•


  Reduces localised pressure and risk of piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 56.00mm





•


  Actual Piston Size: 55.96mm





•


  Display Displacement: 124 cm³





•


  Stroke: 50.60mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Dome Volume: Flat





•


  Compression Height: 25.00mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP036





•


  Ring Set Part Number: 2 x RSB5600




Cross-Reference OEM Part Numbers

•


  Part No: 56-W940+00B.WO




Vehicle Fitments

•


  Cagiva Mito 125 (1993–1998)





•


  Cagiva Raptor 125 (2000–2012)





•


  Cagiva Supercity 125 (2000–2012)





•


  Cagiva Planet 125 (2000–2012)





•


  Cagiva W8 125 (2000–2012)





•


  Cagiva Head 200H,M (2000–2012)
